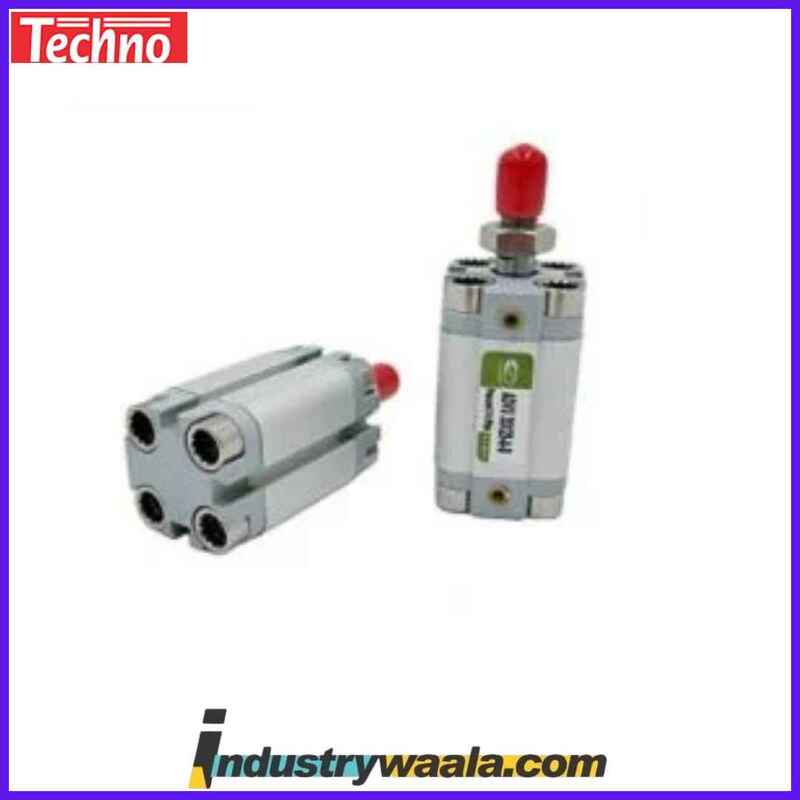

Techno ADVU-25 X 10M-S Pneumatic Cylinder Male Series

The Techno ADVU-25 X 10M-S Pneumatic Cylinder Male Series LONG DES is a high-performance pneumatic actuator designed for applications that require precise movement and reliable actuation in medium-duty environments. This particular model is part of the ADVU series, known for its compact design, versatility, and efficiency. The 25 mm bore size and 10 mm stroke make this cylinder ideal for applications requiring medium force and short travel distance, with an emphasis on compactness and reliability.

Key Features of the Techno ADVU-25 X 10M-S Pneumatic Cylinder Male Series LONG DES:

1. Bore Size (25 mm):
   • The 25 mm bore provides a moderate force output, making the cylinder suitable for applications that require precise control without excessive force. This makes it a versatile option for environments where compact size and efficient performance are important.
2. Stroke Length (10 mm):
   • With a 10 mm stroke, this cylinder offers short-range displacement, which is perfect for applications where small, precise adjustments are needed. It allows for accurate positioning and fine-tuned motion in tasks that require minimal travel distance.
3. Mounting Type (M-S):
   • The M-S (Male-threaded) mounting design allows for a secure connection with female-threaded counterparts. This ensures stable attachment and simplifies the installation process, making it ideal for both OEMs and maintenance teams.
4. Compact and Lightweight Design:
   • The ADVU series is known for its compactness, and this model is no exception. The 25 mm bore size and short stroke length contribute to a lightweight and space-efficient design, making it suitable for systems where space is at a premium.
5. High Durability:
   • The cylinder is built with quality materials, including anodized aluminum and chrome-plated steel piston rods, ensuring long-lasting performance. It can withstand the rigors of industrial environments while maintaining reliable operation.
6. Long Service Life:
   • Thanks to its high-quality seals and robust design, this cylinder is built to perform in medium-duty applications with a reduced need for maintenance. Its design provides protection against contamination, ensuring it can last longer in environments with dust, moisture, or other harsh conditions.

Technical Specifications:

• Bore Size: 25 mm – This medium-size bore is well-suited for moderate-force applications that require compact and efficient actuation.
• Stroke Length: 10 mm – Provides short travel distance, perfect for applications where precise positioning and minimal actuation travel are needed.
• Mounting Type: M-S (Male-threaded) – Enables secure connection with female-threaded counterparts, ensuring stable and easy installation.
• Operating Pressure: Typically 1 to 10 bar. This range is suitable for most industrial pneumatic systems.
• Operating Temperature: The cylinder operates within a typical temperature range of -10°C to 60°C, ensuring versatility in various environmental conditions.
• Materials: The cylinder body is made of anodized aluminum for lightweight durability, while the piston rod is chrome-plated steel for smooth operation and resistance to wear.
• Sealing Technology: Equipped with advanced seals to ensure long-lasting performance and protection against contaminants, contributing to reliable operation and reduced maintenance.

Advantages of the ADVU-25 X 10M-S Pneumatic Cylinder Male Series LONG DES:

1. Compact and Efficient:
   • The 25 mm bore size and 10 mm stroke make the cylinder a compact solution for applications with limited space. Despite its size, it still delivers sufficient force output, making it ideal for applications requiring efficient motion control in tight areas.
2. Precision and Accuracy:
   • With its short stroke length, the cylinder offers precise and controlled movement for tasks requiring small, fine adjustments, such as in positioning, clamping, or material handling.
3. Durable and Long-lasting:
   • The high-quality construction materials, such as anodized aluminum and chrome-plated steel, ensure that the cylinder is resistant to wear and tear and provides a long service life. Its advanced sealing technology minimizes the risk of contamination, leading to reduced downtime and maintenance needs.
4. Easy Installation:
   • The M-S male-threaded mounting type simplifies installation and ensures a secure connection to other pneumatic components, providing stable performance in a variety of configurations.
5. Energy Efficiency:
   • The ADVU series is designed for high efficiency, reducing energy consumption while still delivering precise and reliable performance, making it a cost-effective choice for systems requiring long-term, continuous operation.

Applications:

The Techno ADVU-25 X 10M-S Pneumatic Cylinder Male Series LONG DES is ideal for medium-duty applications that require compact and efficient actuation with precise control over short travel distances. Some typical uses include:

• Automation Systems: Ideal for use in pick-and-place, sorting, and assembly tasks that require accurate positioning over a small distance.
• Material Handling: Suitable for tasks like clamping or positioning in material handling systems that require precise movement but in confined spaces.
• Robotics: Can be used in robotic arms, grippers, and automated systems for small movement adjustments, where precision is key.
• Packaging: The short stroke makes it well-suited for packaging lines where fine-tuned movements are necessary for product alignment, sorting, and handling.
• Machine Tools: Excellent for clamping, positioning, and adjusting tasks in machine tools that require small, precise movements over a short travel distance.
• Medical Equipment: Used in small component handling, positioning, or clamping tasks where precision and compactness are essential.

Conclusion:

The Techno ADVU-25 X 10M-S Pneumatic Cylinder Male Series LONG DES is a compact, durable, and precise pneumatic actuator that is ideally suited for medium-duty applications requiring accurate movement and short displacement. Its advanced sealing system, high-quality construction materials, and efficient design make it a reliable and long-lasting solution for applications in automation, material handling, robotics, packaging, and more. Whether you need small-range adjustments, reliable actuation, or precise positioning, this cylinder offers a high-performance solution for industrial systems where space and efficiency are at a premium.
