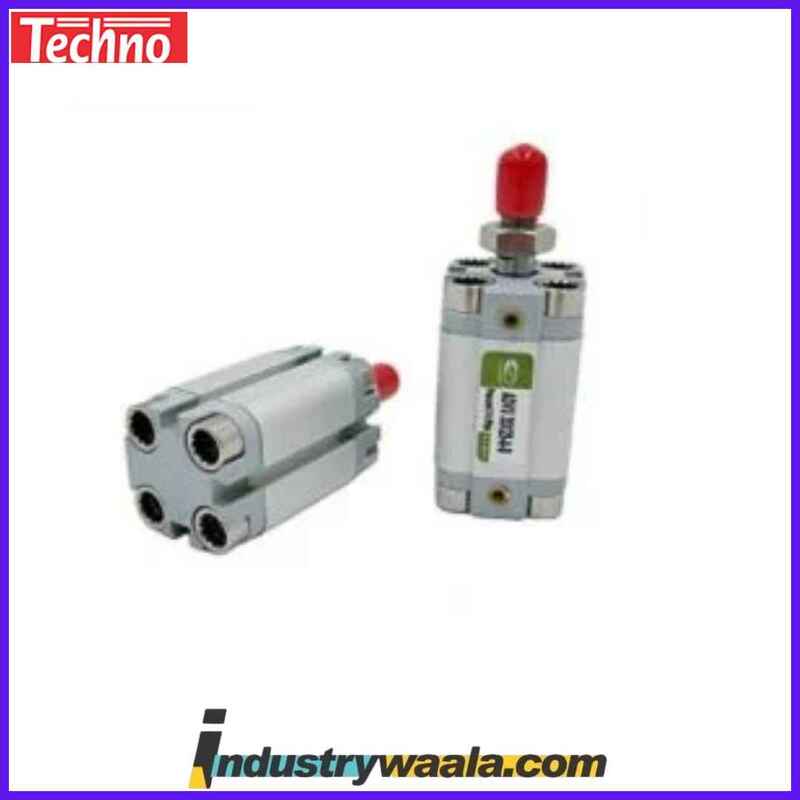

Techno ADVU-32 X 30M-S Pneumatic Cylinder Male Series

The Techno ADVU-32 X 30M-S Pneumatic Cylinder Male Series LONG DES is a high-quality pneumatic actuator designed to provide reliable performance and precise control in medium-duty applications. It is part of the ADVU series, known for its durable construction and versatile use in industrial automation systems. The LONG DES (Long Design) modification enhances the cylinder's overall durability and functionality, making it an ideal choice for a variety of tasks that require medium force and precise actuation.

Key Features of the Techno ADVU-32 X 30M-S Pneumatic Cylinder Male Series LONG DES:

1. Series (ADVU):
   • The ADVU series is engineered for medium-force applications where a balance of compact size and reliable performance is required. These cylinders are used in industries such as automation, robotics, material handling, and packaging, among others, offering consistent operation in both light and moderate-duty applications.
2. Bore Size (32):
   • The 32 mm bore refers to the diameter of the piston inside the cylinder. A 32 mm bore is ideal for applications that need moderate force with compact dimensions. This bore size is commonly selected for applications where space is limited but the required force is still moderate for effective operation.
3. Stroke Length (30):
   • The 30 mm stroke represents the distance the piston moves within the cylinder. This short stroke is designed for applications where precise movement is required in a moderate range, offering quick response times and high accuracy. A 30 mm stroke allows for efficient performance in short-range movements, making it suitable for systems that require compact but functional pneumatic actuation.
4. Mounting Type (M-S):
   • The M-S mounting refers to male-threaded (M-S) mounting style, designed for installation into components with female threads. This mounting configuration is widely used to provide a secure, stable attachment in applications that experience vibrations, mechanical stress, or frequent adjustments, ensuring that the cylinder stays firmly in place during operation.
5. LONG DES (Long Design):
   • The LONG DES (Long Design) is a design modification that enhances the cylinder's sealing and overall durability. The LONG DES configuration includes improved seals, reinforced internal components, and optimized design that ensures a longer service life and greater reliability. This design is especially beneficial for environments that require constant operation in high-cycle applications.

Technical Specifications (Typical for ADVU-32 X 30M-S LONG DES):

• Bore Size: 32 mm – The 32 mm bore is ideal for applications requiring moderate force in a compact size.
• Stroke Length: 30 mm – The 30 mm stroke provides precise, short-range movement, suitable for applications that require accurate adjustments over a moderate distance.
• Mounting Type: Male-threaded (M-S) – Male-threaded mounting ensures a secure attachment in systems where female-threaded components are used.
• Operating Pressure: Typically between 1 to 10 bar, making it suitable for various pneumatic systems with moderate pressure needs.
• Operating Temperature Range: Typically between -10°C to 60°C, allowing it to function in a broad range of industrial environments.
• Cylinder Body Material: Typically made from anodized aluminum, providing lightweight, corrosion-resistant, and durable properties.
• Piston Rod Material: Typically made from chromed steel, offering high wear resistance and strength for durability over time.
• Seals: The LONG DES version incorporates high-performance seals, designed to offer enhanced protection against dirt, moisture, and contaminants.

Applications:

The Techno ADVU-32 X 30M-S Pneumatic Cylinder Male Series LONG DES is suitable for a variety of medium-duty applications where short-range movement, precise control, and long-term durability are required. Some common uses include:

• Automation Systems: Ideal for use in automated machinery, robotic arms, and pick-and-place systems, where accurate, repeatable movements are necessary.
• Material Handling: Used in conveyor systems, feeding machines, or sorting systems, where small adjustments and moderate force are required.
• Packaging: Applied in filling machines, sealing machines, and labeling systems, where precise control over short movements is needed.
• Medical Equipment: Suitable for medical device automation, where small, precise movements are crucial for delicate tasks in confined spaces.
• Textile and Printing: Used in textile machinery and printing presses, where short-range, controlled movements are required for cutting, pressing, or shaping.
• Robotics: Ideal for robotic arms or other robotic systems requiring medium force and precise short-range actuation in a compact form.

Advantages of the ADVU-32 X 30M-S LONG DES:

1. Enhanced Sealing: The LONG DES modification includes advanced sealing technologies that provide better protection against contaminants such as dust and moisture, increasing the service life of the cylinder.
2. Improved Durability: The LONG DES design features reinforced internal components, providing higher durability and longer operational life, even in demanding applications.
3. Low Friction: The LONG DES version optimizes the internal components to reduce friction, leading to smoother operation, higher energy efficiency, and reduced wear over time.
4. Energy Efficiency: The low-friction design of the LONG DES modification allows the cylinder to operate more efficiently, reducing energy consumption and lowering operational costs in the long run.
5. Compact Yet Powerful: The 32 mm bore and 30 mm stroke provide a compact size with moderate force output, making it ideal for tight spaces or applications with space constraints while still delivering reliable performance.
6. Versatile Installation: The M-S mounting type offers flexibility for easy installation into female-threaded components, ensuring secure mounting in various systems.
7. Smooth and Precise Operation: The LONG DES enhancements improve the smoothness of the cylinder's operation, which is crucial for precision in tasks requiring short-range movements.
8. Long Service Life: The LONG DES cylinder is built for high-cycle operations, offering enhanced longevity and resistance to wear and tear, even under frequent use.

Conclusion:

The Techno ADVU-32 X 30M-S Pneumatic Cylinder Male Series LONG DES is an ideal solution for applications requiring medium force, precise control, and long-term durability. With its 32 mm bore and 30 mm stroke, it offers a compact design suitable for short-range movements with moderate force. The LONG DES modification ensures that the cylinder performs efficiently over a long period, offering improved sealing, low friction, and enhanced durability.
