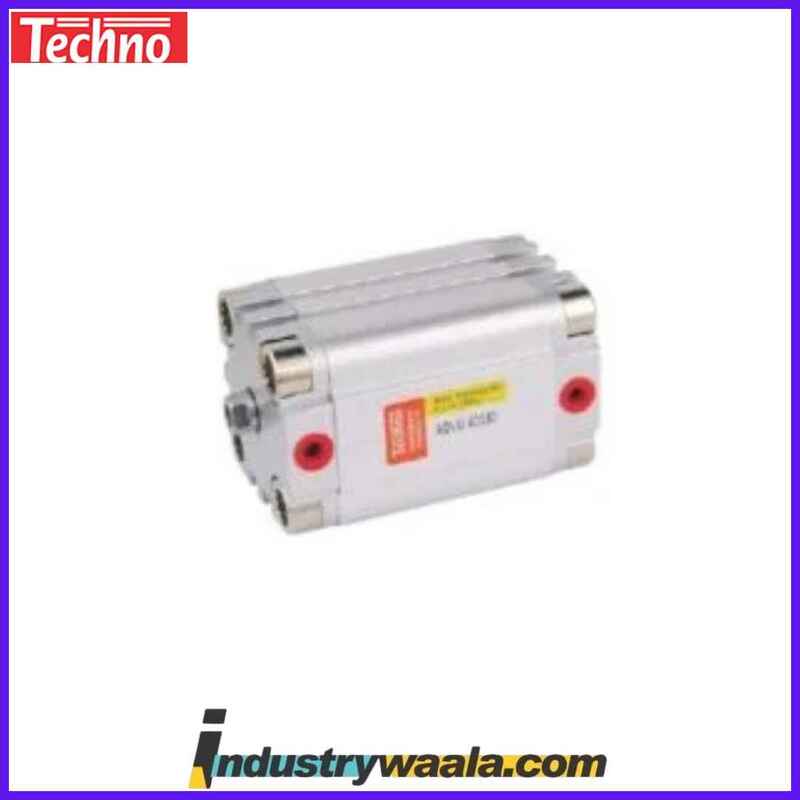

Techno ADVU-40x20F-S Pneumatic Cylinder Female Series

The Techno ADVU-40x20F-S is a model of pneumatic cylinder manufactured by Techno Pneumatic, designed for various industrial applications. Here's a more detailed description of its features and specifications:

Overview:

• Series Name: ADVU Series
• Type: Pneumatic Cylinder
• Bore Size: 40mm
• Stroke Length: 20mm
• Mounting Type: Female (with mounting holes for installation)
• Actuation Type: Double-acting (two-way operation, meaning the cylinder can extend and retract)
• Pneumatic Port Size: Standard port sizes compatible with common fittings
• Design Type: Standard profile, compact design suitable for installations where space is limited

Detailed Features:

• Cylinder Bore Diameter: The bore size of 40mm refers to the inner diameter of the cylinder tube, which determines the size of the piston and the force generated by the cylinder. A larger bore size means more force, but it also requires more air to operate.
• Stroke Length: The stroke of 20mm indicates the maximum distance the piston can travel inside the cylinder tube. It defines how far the actuator moves during each cycle. The 20mm stroke is relatively short, which suggests that this cylinder is used in precise, compact applications where only a small amount of linear motion is needed.
• Double-Acting Cylinder: The ADVU-40x20F-S is a double-acting cylinder, which means it uses air pressure to move the piston in both directions (extend and retract), providing more control over the movement.
• Female Mounting: The "F" in the model name indicates female mounting, meaning the cylinder is designed to be installed using female threads on the ends of the cylinder. This is commonly used for easier installation in confined spaces and requires a corresponding male thread for secure mounting.
• Body Material: Typically, pneumatic cylinders are made of anodized aluminum or stainless steel to ensure durability, resistance to wear, and corrosion resistance. This allows the cylinder to be used in both standard and harsher environments.
• Seals and Performance: High-quality seals inside the cylinder ensure minimal air leakage and efficient performance. The design often includes a combination of seals that provide low friction and extended life, ensuring long-term reliability.
• Working Pressure Range: Typically, this type of pneumatic cylinder operates within a pressure range of approximately 1 to 10 bar (14.5 to 145 psi), but specific details should be confirmed based on the manufacturer’s specifications.

Applications:

The Techno ADVU-40x20F-S pneumatic cylinder can be used in a wide variety of applications, including:

• Automation Systems: It is suitable for applications where precise linear motion is required.
• Packaging Machines: Used to move components in automated production lines.
• Assembly Lines: For pushing, pulling, or adjusting parts during assembly.
• Handling Systems: Often used in robotic arms or handling units to move parts.

Advantages:

• Compact Design: The short stroke length and small bore size make this cylinder ideal for confined spaces.
• Efficiency: Double-acting design ensures efficient use of air pressure and energy.
• Durability: Pneumatic cylinders like this one are known for their long service life, especially when used within recommended pressure ranges and operating conditions.

Technical Specifications (Typical):

• Bore Diameter: 40mm
• Stroke Length: 20mm
• Mounting Style: Female
• Pneumatic Connection: Threaded ports for pneumatic fittings
• Materials: Aluminum body, steel piston rod, polyurethane seals
• Temperature Range: Typically from -10°C to 80°C
• Operating Pressure Range: 1 to 10 bar (14.5 to 145 psi)

This model is part of Techno Pneumatic’s ADVU series, which focuses on high-performance cylinders for various automation and industrial applications. Always consult the technical datasheet provided by the manufacturer for detailed and accurate information before installation and use.
