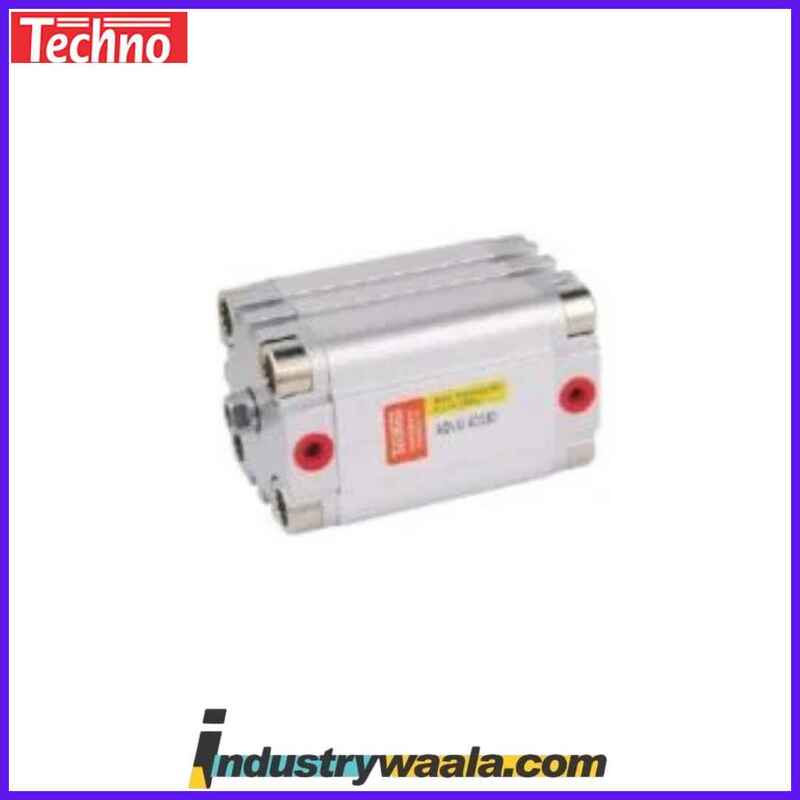

Techno ADVU-40x80F-S Pneumatic Cylinder Female Series

The Techno ADVU-40x80F-S Pneumatic Cylinder Female Series LONG DES refers to a specific model of pneumatic cylinder with the following detailed breakdown:

Key Features Breakdown:

1. Brand/Model: Techno ADVU-40x80F-S
   • Techno: The manufacturer or brand, which likely specializes in industrial automation components such as pneumatic cylinders and actuators.
   • ADVU: This indicates the product line or series, known as ADVU. This series typically includes pneumatic cylinders designed for precise motion in industrial applications.
   • 40x80:
     • 40 mm: The bore size, which is the diameter of the cylinder. The 40 mm bore indicates that the cylinder produces moderate force and is suitable for medium-duty applications.
     • 80 mm: The stroke length of the cylinder, which is the maximum distance the piston can move. The 80 mm stroke is relatively long, making it ideal for applications requiring larger linear motion compared to smaller stroke cylinders.
   • F: Refers to Female Threaded Ports, meaning the cylinder features female threads at its connection points for secure and reliable attachment of fittings or other components.
   • S: Likely indicates a specific variant or configuration of the model, such as a standard version of the cylinder in terms of mounting or performance.
2. Pneumatic Cylinder:
   • A pneumatic cylinder uses compressed air to create linear motion. Pneumatic cylinders are widely used in industrial applications to provide motion for various tasks such as pushing, pulling, lifting, pressing, or positioning.
   • Pneumatic cylinders are often used in automation, robotics, material handling, and machinery, among other fields, to control mechanical actions with precise movements.
3. Female Series:
   • The Female Series designation indicates that the pneumatic cylinder has female-threaded ports for the connection of fittings and other components. This is important for compatibility with standard pneumatic systems that use male-threaded fittings.
4. LONG DES:
   • The LONG DES likely refers to a long design variant of this pneumatic cylinder. This could imply a longer stroke (in this case, 80 mm), more versatile mounting options, or a design meant for applications requiring more extended or specialized travel distance. It could also indicate that the cylinder is intended for more demanding or specific industrial applications.

General Applications:

The Techno ADVU-40x80F-S Pneumatic Cylinder is ideal for applications requiring medium-force and moderate linear movement. Some potential uses include:

• Industrial Automation: The cylinder can be used to automate tasks like pushing, pulling, or positioning objects in machinery.
• Robotics: Pneumatic cylinders are commonly used in robotic systems for controlled movements in automated processes.
• Material Handling: These cylinders help with the transfer of materials, whether it's for lifting or moving items along a conveyor system.
• Assembly Line Automation: Pneumatic cylinders with longer stroke lengths (like the 80 mm here) are useful in assembly lines where parts need to be moved or manipulated over a longer distance.
• Pressing and Clamping Applications: In situations where larger strokes are necessary to apply force over a greater distance, pneumatic cylinders like this one are ideal.

Materials:

The Techno ADVU-40x80F-S cylinder is likely made from materials that ensure durability and resistance to wear and corrosion, such as:

• Aluminum: Lightweight, resistant to corrosion, and durable, aluminum is a common material used for the body of pneumatic cylinders.
• Stainless Steel: Often used for enhanced durability and corrosion resistance, especially in harsh environments or applications involving high moisture or chemicals.
• Steel: A standard material for industrial cylinders, offering strength and wear resistance.

Key Benefits:

• Medium Bore Size (40 mm): The 40 mm bore size provides moderate force suitable for applications requiring a balance of strength and precision. It is ideal for tasks that need moderate force without the bulk of larger cylinders.
• Long Stroke (80 mm): The 80 mm stroke allows for longer linear motion, making the cylinder ideal for applications that require a greater range of motion than shorter stroke cylinders.
• Female Threaded Ports: The female threaded connections ensure easy installation with male-threaded fittings and provide a secure, leak-proof connection in pneumatic systems.
• Long Design: The LONG DES variant suggests a design optimized for larger, more demanding strokes or specialized tasks. This makes it suitable for applications requiring extended travel or more robust performance.

Conclusion:

The Techno ADVU-40x80F-S Pneumatic Cylinder Female Series LONG DES is a reliable pneumatic cylinder designed for medium-duty, industrial applications that require a moderate force and a longer stroke length (80 mm). Its female threaded ports make it easy to integrate into pneumatic systems with male-threaded components. This cylinder is well-suited for applications in automation, material handling, robotics, and assembly lines that require precise, linear motion over an extended range.
