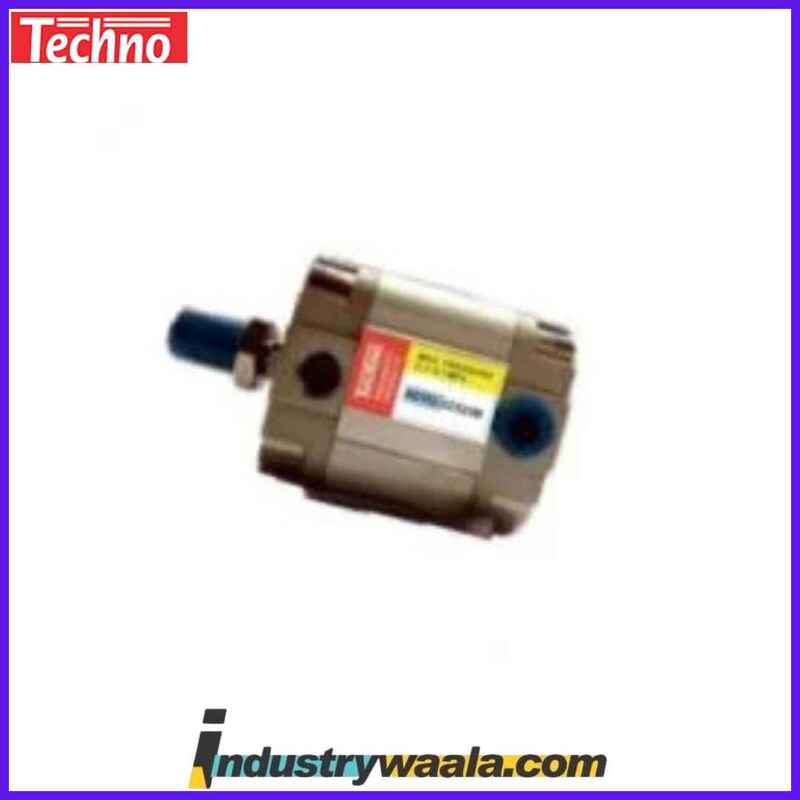

Techno ADVU-80 X 80M-S Pneumatic Cylinder Male Series

The Techno ADVU-80 X 80M-S Pneumatic Cylinder Male Series is a model of pneumatic cylinder designed by Techno. Pneumatic cylinders are commonly used in industrial automation, manufacturing, and robotics to generate linear motion using compressed air. Let's break down the likely specifications and features based on the naming conventions for this particular cylinder:

Breakdown of the Model Number:

• ADVU-80: This refers to the specific series and bore size.
  • ADVU likely indicates the series or family of cylinders within the Techno product range, which are known for their quality and versatility.
  • 80 typically represents the bore size (diameter of the cylinder). In this case, it is most likely 80mm, meaning the cylinder has a relatively large bore size. This would generally be used for higher force applications in medium to heavy-duty tasks.
• X: This could refer to a configuration or version of the cylinder within the ADVU series. It may indicate a particular feature, version, or modification, such as a specific type of sealing, stroke, or other performance characteristics.
• 80M-S: The 80M could indicate the stroke length and possibly a special feature or version related to mounting or seals.
  • M might refer to a special mounting type or configuration designed for this model. It is common for pneumatic cylinders to have different mounting styles (e.g., flange, trunnion, foot mounting).
  • S might indicate the specific seal type or other design elements meant to improve performance or suitability for certain environments.

Key Features of the ADVU-80 X 80M-S Pneumatic Cylinder:

1. Bore Size (80mm): The large bore size of 80mm suggests that this pneumatic cylinder is designed for applications that require higher forces or for moving larger loads. It would be suitable for medium to heavy-duty applications where higher force output is necessary.
2. Stroke Length: The 80M part suggests that the stroke length could be 80mm or another custom value, depending on the exact configuration. Stroke length is the distance the piston travels inside the cylinder when it is actuated by compressed air. This length determines the range of movement for the piston and is important for precise control.
3. Male Series: The "Male" designation could refer to a specific style of mounting or the connection type of the cylinder, which might involve male threads or specific end connectors that are commonly used in certain installations or machinery.
4. Seal and Protection (S): The S could indicate that the cylinder has special sealing technology to enhance its durability and performance. For instance, it might feature enhanced sealing for preventing air leakage, reducing wear, and increasing the cylinder’s life expectancy, especially in harsh environments (e.g., dusty or wet conditions).

Applications of the ADVU-80 X 80M-S Pneumatic Cylinder:

Given its likely high force and medium stroke length, this pneumatic cylinder would typically be used in applications such as:

• Material Handling: In automated systems where moving or positioning heavy parts is required.
• Robotics: For actuation of robotic arms or other machinery that requires significant force.
• Packaging and Assembly: Used in systems that require precise linear movement for assembling, packing, or placing components.
• Automation: For controlling valves, gates, or other machinery that requires linear motion.

Features and Benefits:

• Large Bore Size (80mm): Provides higher force output, making it suitable for heavy-duty applications.
• Short to Medium Stroke Length: Useful for controlled and precise linear motion in a range of industrial tasks.
• Enhanced Seals: Likely to have robust sealing to prevent leakage and wear, improving the cylinder's durability.
• Male Mounting Type: Offers compatibility with a variety of mounting options, likely featuring male threaded connections for easier integration into systems that require secure mounting.

Conclusion:

The Techno ADVU-80 X 80M-S Pneumatic Cylinder Male Series appears to be a robust, high-performance pneumatic actuator designed for heavy-duty applications requiring significant force and precision. Its large bore size (80mm) and medium stroke length (likely 80mm) make it ideal for industrial automation, material handling, and other mechanical systems that rely on pneumatic actuators. For precise technical details such as maximum pressure, mounting options, and materials, referring to the product's datasheet from the manufacturer would be essential.
