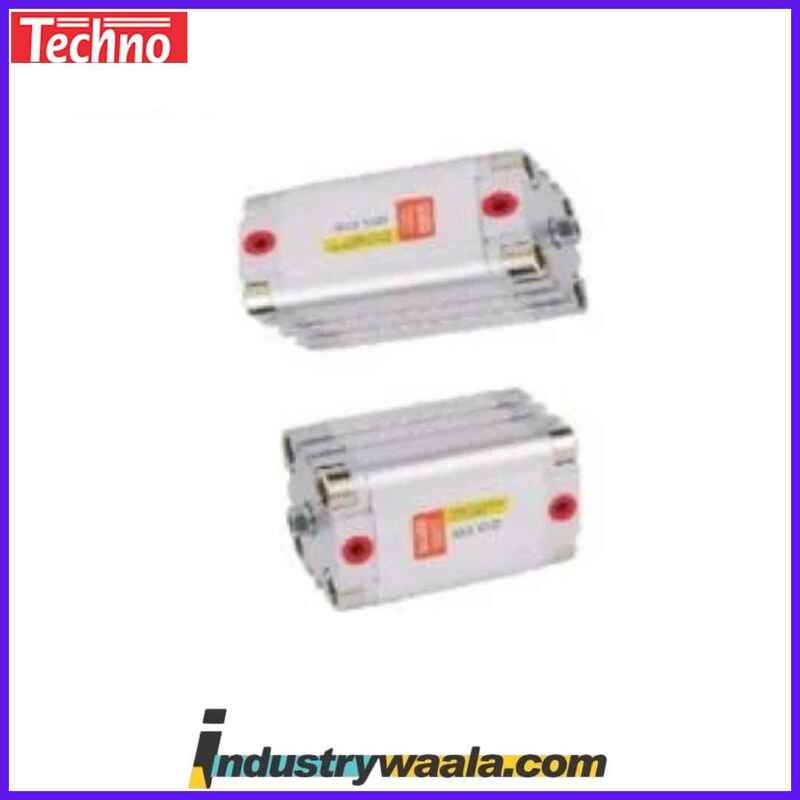

Techno ADVU-80x80F-S Pneumatic Cylinder Female Series

The Techno ADVU-80x80F-S is a high-performance pneumatic cylinder from the Female Series in the ADVU line. This model is engineered to provide reliable and efficient linear motion with a focus on precision and durability for a variety of industrial applications. Featuring a 80mm bore and 80mm stroke, the ADVU-80x80F-S is designed to deliver high force and long travel, making it suitable for demanding tasks in automation systems, material handling, and various machinery applications.

Key Features:

1. Bore Size: The 80mm bore refers to the internal diameter of the cylinder’s piston. A larger bore size enables the cylinder to generate more force, making it suitable for heavy-duty applications. The 80mm bore is ideal for tasks requiring substantial force and power, such as large-scale machinery, heavy lifting, or robotic automation.
2. Stroke Length: The 80mm stroke offers a longer travel distance, providing the ability to complete more extensive movements in one cycle. This extended stroke is particularly beneficial for applications where a significant range of motion is necessary, such as in material handling or in systems requiring long movements within a confined space.
3. Female Threaded Connections: The “F” in the model name indicates female-threaded connections. These connectors are designed for easy integration with systems that use male-threaded components. The female-threaded design ensures a secure and stable installation, making the cylinder an excellent choice for various industrial setups.
4. Double-Acting Function: The ADVU-80x80F-S is a double-acting cylinder, meaning that it uses pneumatic pressure to extend and retract the piston. This configuration is ideal for applications that require controlled movement in both directions, offering flexibility and improved performance for a variety of tasks.
5. Material Construction: Constructed from high-strength aluminum for the body and steel for the piston rod, the ADVU-80x80F-S is both lightweight and durable. The aluminum body ensures the cylinder is easy to handle and install, while the steel piston rod adds strength and resistance to wear, enabling the cylinder to perform reliably under high loads and for extended periods.
6. Operating Pressure: The ADVU-80x80F-S operates within a standard pneumatic pressure range of 1 to 10 bar (100 to 1000 kPa), ensuring consistent force output across a variety of applications. This pressure range is ideal for most industrial systems, providing the flexibility to use the cylinder in diverse environments and machinery.
7. Sealing System: Equipped with high-quality seals, the cylinder minimizes air leakage, ensuring smooth and efficient operation over time. These seals are designed to withstand the harsh environments and pressures found in industrial applications, contributing to the cylinder’s long lifespan and reliable performance.
8. Speed Control: The speed of the ADVU-80x80F-S can be adjusted using flow control valves, allowing for precise control over the piston’s movement. This feature is essential in applications requiring variable speeds for different phases of the operation, such as in assembly lines, packaging systems, or material handling.
9. Temperature Range: The ADVU-80x80F-S typically operates within the standard temperature range of -10°C to 60°C, ensuring it performs well in a wide range of industrial environments. Whether in cold storage areas, outdoor environments, or hot factory floors, this cylinder is built to handle temperature fluctuations effectively.
10. Compact and Robust Design: Despite its larger size, the ADVU-80x80F-S maintains a compact design relative to its force output, making it suitable for use in larger machinery or systems where space is available but high power is needed. This cylinder combines strength and efficiency, making it ideal for industrial applications that demand long-lasting, high-performance solutions.

Applications:

The Techno ADVU-80x80F-S pneumatic cylinder is versatile and designed for a range of applications, including:

• Material Handling: Ideal for moving large objects or heavy materials in conveyor systems, production lines, and warehouses.
• Heavy-Duty Automation: Used in large-scale robotic arms or automated systems that require extended movement and significant force.
• Lifting Systems: Suitable for lifting heavy loads or equipment in automated machinery, presses, or lifting tables.
• Machinery and Equipment: Can be used in applications requiring large-scale, controlled movements, such as presses, hoppers, or large-scale assembly lines.
• Packaging Machinery: Used in packaging machines for loading, sorting, or moving large products or packages.
• Testing and Measurement: For applications that require long and precise movements to test equipment or products.

Advantages:

• High Force Output: The 80mm bore and 80mm stroke provide significant force and a long travel distance, ideal for heavy-duty applications.
• Durability: Made with aluminum and steel, the cylinder is durable and designed to last through many operational cycles, even under heavy load.
• Easy Integration: The female-threaded connections make it simple to install and integrate into systems with male-threaded connectors, ensuring a secure and stable fit.
• Precision Control: With adjustable speed control and double-acting operation, the cylinder ensures precise, reliable movement in both directions.
• Versatility: Suitable for a variety of industrial tasks, from material handling to robotics and large machinery, making it a highly adaptable solution.

The Techno ADVU-80x80F-S pneumatic cylinder is a powerful and reliable option for high-force, long-range applications across multiple industries. Its robust design, precision control, and easy integration make it an excellent choice for any system that requires heavy-duty, long-lasting pneumatic motion.
