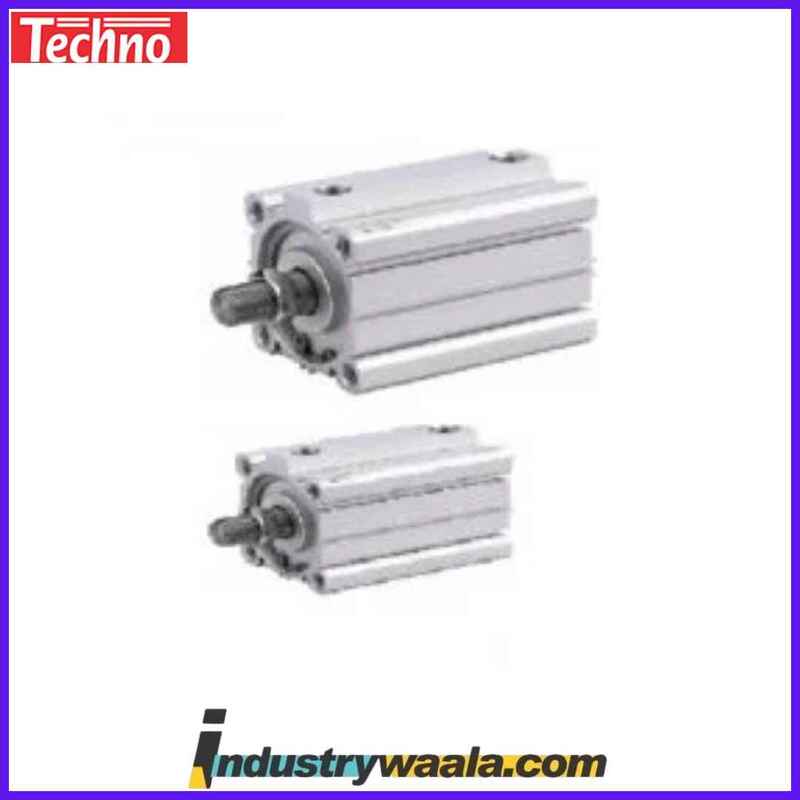

Techno CDQ2B-40 X 50M Pneumatic Cylinder Male Series

The Techno CDQ2B-40 X 50M Pneumatic Cylinder Male Series is a highly efficient, double-acting pneumatic cylinder designed to provide controlled linear motion in a wide range of industrial applications. With a 40 mm bore size and a 50 mm stroke length, this cylinder offers a compact yet powerful solution for tasks requiring moderate force and precise control. The male-threaded mounting design ensures easy integration into systems requiring threaded connections, providing secure and stable attachment.

1. Model Overview:

• Brand: Techno
• Model: CDQ2B-40 X 50M
• Type: Pneumatic Cylinder (Double-Acting)
• Bore Size: 40 mm
• Stroke Length: 50 mm
• Mounting Type: Male Threaded Mounting
• Operating Medium: Compressed Air
• Function: The pneumatic cylinder operates using compressed air to generate linear motion, which can be used in a wide array of applications that require both extension and retraction of the piston.

2. Key Features:

• Moderate Force Output: With a 40 mm bore, the cylinder is capable of providing moderate force suitable for light to medium-duty applications where space is a premium and precise movement is required.
• Double-Acting Operation: The double-acting design ensures that the cylinder operates with compressed air on both sides of the piston, providing consistent and efficient performance during both extension and retraction.
• Male Threaded Mounting: The male-threaded mounting offers secure and stable installation in systems requiring threaded connections, ensuring smooth operation and reducing the risk of misalignment.
• Low-Friction Design: A low-friction internal structure minimizes wear and tear, enhancing the cylinder's lifespan and efficiency. This reduces maintenance needs and helps in maintaining smooth performance over time.
• Durable Construction: The cylinder is constructed from high-quality, anodized aluminum, making it both lightweight and durable. This construction provides excellent resistance to wear and corrosion, even in harsh industrial environments.

3. Technical Specifications:

• Bore Size: 40 mm. The bore size strikes a balance between compactness and force output, making it suitable for applications that require moderate force but with limited space.
• Stroke Length: 50 mm. The 50 mm stroke length offers a moderate range of motion, perfect for applications that need precise and controlled movement over a small distance.
• Operating Pressure: Typically operates between 1 to 10 bar, making it compatible with a wide range of standard pneumatic systems.
• Temperature Range: The cylinder is designed to function effectively within a broad temperature range, allowing it to operate in both cold and hot industrial environments.
• Cushioning: The cylinder may feature optional cushioning at both ends of the stroke to reduce impact and improve performance. This cushioning helps protect the cylinder and surrounding machinery from damage caused by high-speed movements at the end of the stroke.

4. Common Applications:

• Automation: The cylinder is ideal for use in automation systems, where it can control the precise movement of robotic arms, conveyors, or assembly line equipment.
• Material Handling: It can be employed in material handling tasks such as lifting, pushing, or positioning components, helping to move products along conveyors or into position for further processing.
• Packaging: In packaging machinery, the cylinder is commonly used for tasks like product placement, sealing, labeling, or sorting, where accurate and reliable movements are required.
• Robotics: This cylinder is ideal for robotic applications where short-range, precise movements are needed, such as controlling grippers, adjusting positions, or operating mechanical arms.
• Textile Manufacturing: In textile machinery, the cylinder may be used for guiding, tensioning, and positioning materials, providing precision in high-speed production lines.

5. Advantages:

• Compact and Lightweight: With a 40 mm bore size and 50 mm stroke length, this cylinder is compact and lightweight, making it an ideal solution for systems with limited space or weight constraints.
• Low Maintenance: The low-friction design ensures that wear and tear are minimized, reducing the frequency of maintenance and extending the overall lifespan of the cylinder.
• Precise and Reliable: The 50 mm stroke length provides precise control over small movements, making it perfect for tasks requiring accuracy and repeatability.
• Easy Integration: The male-threaded mounting design makes installation simple and secure, ensuring easy integration into existing systems with minimal effort.
• Durability: The high-quality anodized aluminum construction provides resistance to corrosion and wear, ensuring the cylinder will perform reliably in industrial environments.
• Corrosion Resistance: The anodized finish protects the cylinder from corrosion, making it ideal for environments that are exposed to moisture, humidity, or chemicals.

6. Installation & Maintenance:

• Installation: The male-threaded mounting allows for easy installation into threaded systems, ensuring a secure fit. It is important to follow the torque specifications during installation to avoid damage or misalignment.
• Maintenance: Regular inspections for wear, leaks, and damage are recommended to ensure optimal performance. Keeping the cylinder clean and free of debris will also help maintain smooth operation.
• Lubrication: Periodic lubrication of the internal components is advised to reduce friction and ensure smooth operation. Only use lubricants that are compatible with pneumatic systems to avoid damage to seals and internal components.
• End-of-Stroke Check: If cushioning is present, it should be checked regularly to ensure it is functioning properly and preventing damaging impacts at the end of the stroke.

7. Compatible Accessories:

• Position Sensors: Position sensors can be added to monitor the cylinder’s movement and provide feedback to control systems for greater precision and efficiency in automated systems.
• Speed Control Valves: Speed control valves can be used to regulate the extension and retraction speeds of the cylinder, allowing for better control over movement in tasks that require specific speed parameters.
• Cushioning: Additional cushioning can be added to reduce impact when the cylinder reaches the end of its stroke, offering smoother operation and reducing the potential for damage.
• Auto-Switches: Auto-switches can be used to detect the position of the cylinder and send signals to the control system, allowing for synchronized operations in automated processes.

8. Environmental Compatibility:

• Temperature Resistance: The CDQ2B-40 X 50M operates effectively in a broad temperature range, ensuring reliability in both hot and cold industrial environments.
• Corrosion Resistance: The anodized aluminum body and high-quality seals provide resistance to corrosion, making the cylinder suitable for use in environments exposed to moisture, humidity, or chemicals.

The Techno CDQ2B-40 X 50M Pneumatic Cylinder Male Series offers efficient, precise, and reliable motion for a variety of industrial applications. Its combination of moderate force output, compact size, and durable construction makes it an excellent choice for automation, material handling, packaging, and robotics. With easy installation, low maintenance, and long-lasting performance, this pneumatic cylinder is a versatile and reliable component for systems that require high precision and efficiency in their operations.
