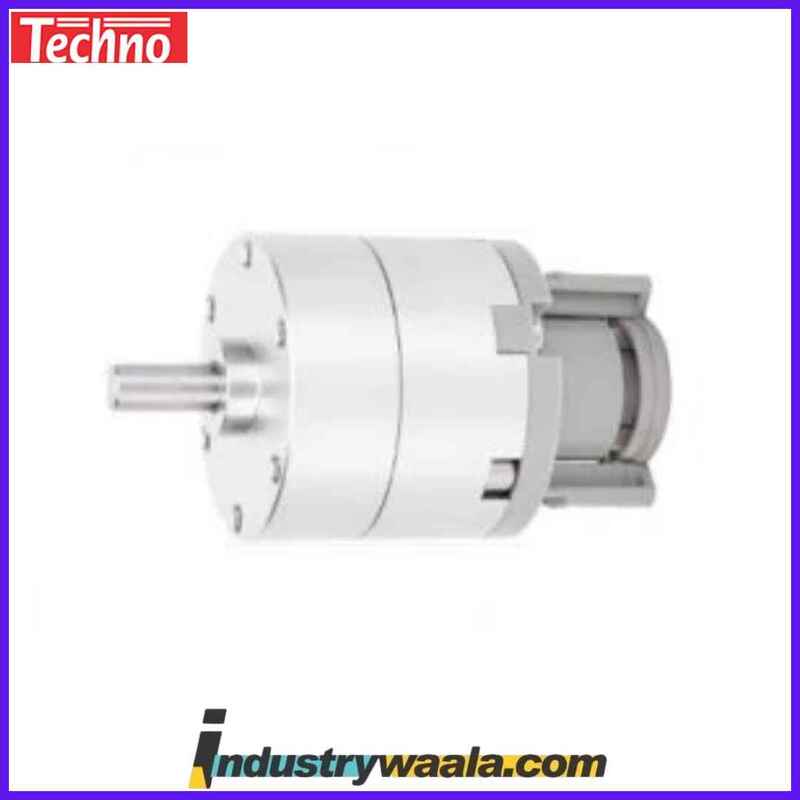

Techno CDRB2BW-40 90 Pneumatic Cylinder

The Techno CDRB2BW-40 90 Pneumatic Cylinder is a high-performance, double-acting pneumatic actuator designed to provide efficient, controlled linear motion in a wide range of industrial, automation, and material handling applications. This cylinder offers a blend of precision, durability, and versatility, making it ideal for tasks requiring reliable and repeatable movement.

Key Features & Specifications:

1. Bore Size:
   • The bore size of the CDRB2BW-40 cylinder is 40 mm. The bore size is crucial as it determines the force generated by the cylinder, with larger bores providing more force. The 40mm bore is well-suited for medium to heavy-duty applications, offering a balanced combination of size and force output.
2. Stroke Length:
   • The stroke length is 90 mm, which represents the maximum distance the piston can move from its fully retracted to its fully extended position.
   • The 90mm stroke length is ideal for applications that require precise control and a moderate range of motion. It allows for tasks such as clamping, pushing, pulling, or positioning components within confined spaces or tight working environments.
3. Double-Acting Design:
   • The Techno CDRB2BW-40 90 pneumatic cylinder is double-acting, meaning it uses compressed air to move the piston in both directions. This provides precise control over both extension and retraction, offering greater flexibility and efficiency compared to single-acting cylinders, which only perform movement in one direction.
   • The double-acting mechanism ensures that the cylinder operates smoothly and provides more accurate control for tasks that require linear motion in both directions.
4. Operating Pressure:
   • The CDRB2BW-40 cylinder typically operates within a pressure range of 1 to 8 bars (14.5 psi to 116 psi). This pressure range makes the cylinder suitable for a variety of industrial applications, where moderate to high air pressure is required to generate sufficient force for effective operation.
5. Body Construction:
   • The body of the cylinder is made from anodized aluminum, which offers several advantages. Anodizing enhances the aluminum’s natural corrosion resistance, making the cylinder suitable for use in environments where exposure to moisture, chemicals, or other corrosive elements might occur.
   • The lightweight yet durable anodized aluminum construction also reduces the overall weight of the cylinder, making it easier to handle and integrate into various machines or automation systems.
6. Piston Rod:
   • The piston rod is typically constructed from high-strength stainless steel, ensuring excellent durability, resistance to wear, and smooth operation.
   • The piston rod is the key component responsible for transferring the linear force generated by the air pressure to mechanical elements of the system, facilitating the required motion.
7. Temperature Range:
   • The cylinder can operate within a typical temperature range of -20°C to 80°C (-4°F to 176°F). This allows the cylinder to function effectively in diverse environmental conditions, making it suitable for use in various industries and applications.
8. Mounting Options:
   • The CDRB2BW-40 90 cylinder offers multiple mounting options such as foot, flange, or through-hole mounting. These versatile mounting options allow the cylinder to be integrated into different system designs, making it adaptable to various installation environments.
   • Its mounting options help ensure that it can be used in tight spaces, and its flexibility makes it a go-to choice for automation, robotic, and material handling applications.
9. Seal Design and Durability:
   • The piston seals in the CDRB2BW-40 cylinder are made from high-quality materials that ensure minimal leakage and maximum sealing efficiency. The design of these seals reduces air loss and enhances the overall performance and energy efficiency of the cylinder.
   • These seals also improve the durability of the cylinder by protecting the internal components from wear and tear due to friction and air pressure.
10. Performance Features:
    • The low-friction design of the cylinder ensures smooth operation and reduces wear over time, extending the lifespan of the cylinder.
    • The precision movement of the cylinder ensures that tasks requiring high levels of control can be performed accurately, making it ideal for applications that demand repeatability and exact positioning.
11. Applications:
    • Automation Systems: The CDRB2BW-40 90 pneumatic cylinder is frequently used in robotic arms, pick-and-place systems, assembly lines, and other automated processes where precise and controlled linear motion is necessary.
    • Material Handling: It is suitable for conveyor systems, sorting systems, and packaging machinery, where it provides reliable motion for pushing, pulling, and positioning components.
    • Machine Tools: Often used in machine tools for clamping, feeding, and positioning of workpieces, enhancing productivity and precision.
    • Medical Equipment: Can be integrated into medical devices that require compact and controlled motion, such as in diagnostic or treatment devices.
    • Industrial Machinery: Ideal for tasks that require high-force and controlled movement, such as pressing, clamping, and lifting.
12. Auto-switch Compatibility:
    • Many versions of the Techno CDRB2BW-40 90 cylinder are compatible with auto-switches for position sensing. These sensors detect when the piston is fully extended or retracted, providing real-time feedback to automated systems for better process control and efficiency.
    • This feature is particularly useful in automation systems, where precise control of the cylinder's position is necessary for optimizing performance.
13. Lubrication:
    • The CDRB2BW-40 cylinder is typically designed for self-lubricating operation, though regular maintenance and lubrication may still be required to ensure smooth operation and extend the lifespan of the cylinder.
    • Following the manufacturer’s guidelines for lubrication is essential to maintain optimal performance and prevent wear over time.

Conclusion:

The Techno CDRB2BW-40 90 Pneumatic Cylinder is a reliable, durable, and efficient solution for applications that require precise, controlled linear motion. With its 40mm bore size, 90mm stroke length, and double-acting design, it provides significant force while maintaining a compact footprint. Ideal for use in automation, material handling, robotics, and machine tools, this cylinder ensures consistent and repeatable performance across various industries. Its robust construction, ease of integration, and versatile mounting options make it a valuable component for a wide range of applications where durability and efficiency are key.
