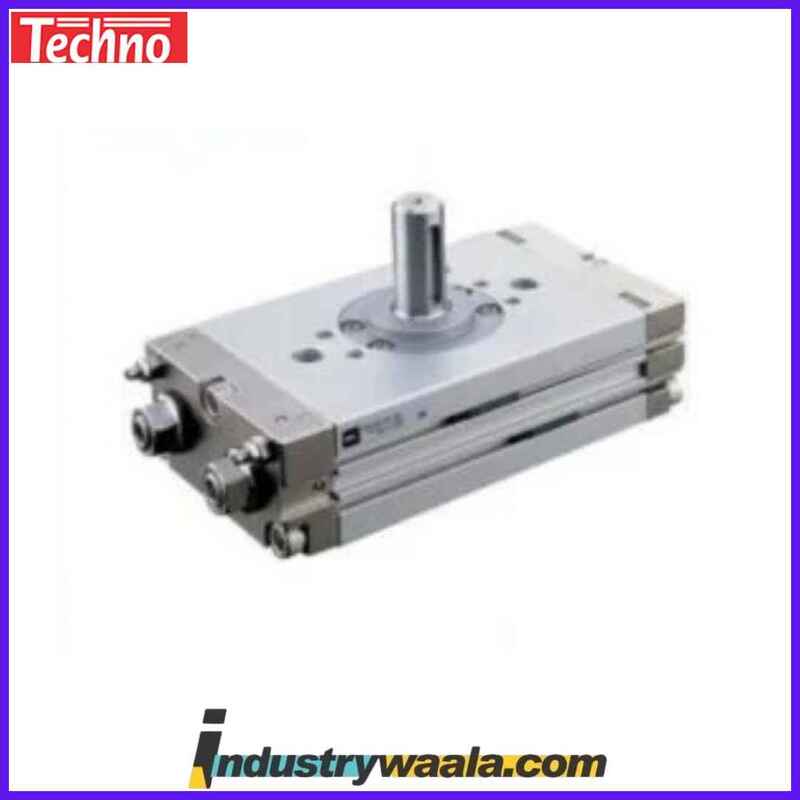

Techno CDRQ2B 15 X 90 Pneumatic Cylinder

The Techno CDRQ2B 15 x 90 Pneumatic Cylinder is a type of pneumatic actuator designed to provide linear motion using compressed air. Here's a detailed description of its key features and specifications:

General Features:

1. Model: CDRQ2B 15 x 90
2. Type: Double-acting pneumatic cylinder.
3. Bore Size: 15 mm (the internal diameter of the cylinder, determining its power and load capacity).
4. Stroke Length: 90 mm (the distance the piston travels when activated by compressed air).
5. Operating Pressure: Typically operates at a pressure range from 1 bar to 8 bars (14.5 psi to 116 psi), depending on the application requirements.
6. Materials:
   • Body Material: Typically made of anodized aluminum for durability and corrosion resistance.
   • Piston Seals: Made of high-quality materials designed to withstand air pressure and friction, ensuring longevity and smooth operation.
7. Mounting: The cylinder is designed to be mounted in various configurations depending on the application needs (e.g., foot mounting, flange mounting, or through-hole mounting).
8. Temperature Range: Can typically handle temperatures from -20°C to 80°C (-4°F to 176°F), but this can vary depending on specific seals and materials used.
9. Piston Rod: The rod, often made of stainless steel, extends and retracts during the operation, transferring the force generated by the air pressure to mechanical elements.
10. Cylinder Type: It is double-acting, meaning it uses air pressure to extend the piston and also to retract it, providing control in both directions.

Applications:

• Automation systems: Used in various industrial and automation systems for tasks requiring precise linear motion.
• Packaging: Used in machines that require pushing, pulling, or clamping actions.
• Material Handling: For conveyors or robotic arms.
• Machines and Tools: Where high precision linear motion is required.

Features for Performance and Efficiency:

• Low Friction Design: To ensure smooth operation and minimize wear.
• Long Stroke Life: Due to its robust design and quality materials, the Techno CDRQ2B series offers a long service life even under continuous use.
• Compact Size: The 15mm bore and relatively short 90mm stroke make it ideal for space-constrained applications.

Additional Options:

• Auto-switch capability: Some models include sensors or auto-switches for position sensing to monitor the cylinder's position.
• Lubrication: These cylinders may be internally lubricated, but it’s always recommended to check the manufacturer's guidelines for lubrication needs.

The Techno CDRQ2B series pneumatic cylinder is a reliable, compact solution for applications requiring efficient and consistent pneumatic linear movement, especially in constrained environments or automation setups.
