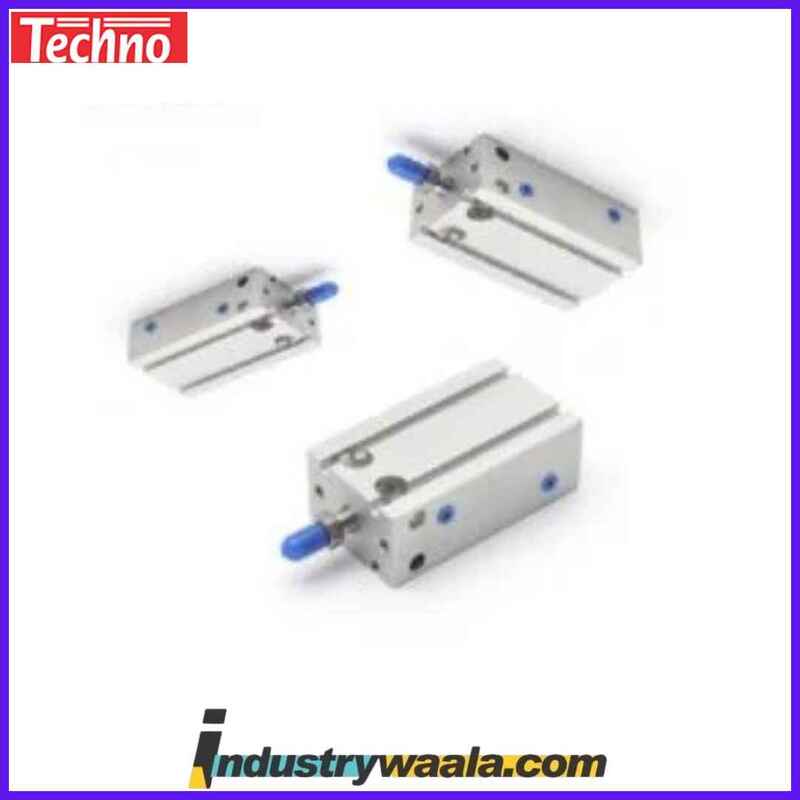

Techno CDU16 X 5-S Pneumatic Cylinder

The Techno CDU16 X 5-S Pneumatic Cylinder is a double-acting pneumatic actuator designed for precise linear motion in a wide range of industrial automation applications. Featuring a 16 mm bore size and a 5 mm stroke length, this compact cylinder is ideal for tasks requiring high precision in a constrained space.

Key Features:

• Bore Size: 16 mm, providing a balance between compactness and strength, suitable for light-duty applications.
• Stroke Length: 5 mm, offering precise movement over short distances for tasks requiring accuracy in limited spaces.
• Double-Acting Operation: The cylinder operates in both directions (extension and retraction), providing flexibility for varied applications.
• End-of-Stroke Cushioning: Cushioned at both ends to reduce impact, ensuring smoother operation and minimizing wear on internal components.
• Adjustable Speed Control: Allows the user to regulate the cylinder's movement speed for smoother transitions and reducing the potential for damage to other machinery.
• Durable Construction: The piston rod is made from stainless steel, ensuring strength and resistance to corrosion, while the barrel is constructed from anodized aluminum, offering durability and protection against wear and tear.
• Operating Pressure Range: This cylinder works efficiently within a pressure range of 1.5 to 10 bar, providing versatility for various pneumatic applications.
• Temperature Range: It is designed to operate in environments with a temperature range of -10°C to 80°C, making it suitable for diverse industrial conditions.
• Compact Design: Its small size makes it ideal for applications where space is limited but precise movement is required.

Applications:

The Techno CDU16 X 5-S Pneumatic Cylinder is well-suited for a variety of light-duty industrial tasks, including:

• Automated Machinery: Ideal for precision movements in small-scale automation systems or robotic arms.
• Material Handling Systems: Useful for light material handling tasks in compact systems.
• Packaging Machines: Suitable for precise, short movements in packaging and labeling equipment.
• Medical and Laboratory Equipment: Works well in applications where space is limited and precise control is necessary.
• Assembly Lines: Perfect for small-scale assembly operations requiring accurate linear motion.

Technical Specifications:

• Bore Size: 16 mm
• Stroke Length: 5 mm
• Cylinder Type: Double-acting
• Piston Rod Material: Stainless Steel
• Barrel Material: Anodized Aluminum
• End-of-Stroke Cushioning: Yes (at both ends)
• Adjustable Speed Control: Yes
• Operating Pressure Range: 1.5 to 10 bar
• Temperature Range: -10°C to 80°C

Summary:

The Techno CDU16 X 5-S Pneumatic Cylinder is a compact and highly efficient actuator designed for light-duty automation and material handling applications. Its 16 mm bore and 5 mm stroke provide precise, controlled motion in limited spaces, while its durable construction, cushioning, and adjustable speed control ensure smooth operation and long-lasting performance. This cylinder is an excellent choice for small-scale automation, robotic systems, and light-duty industrial tasks.
