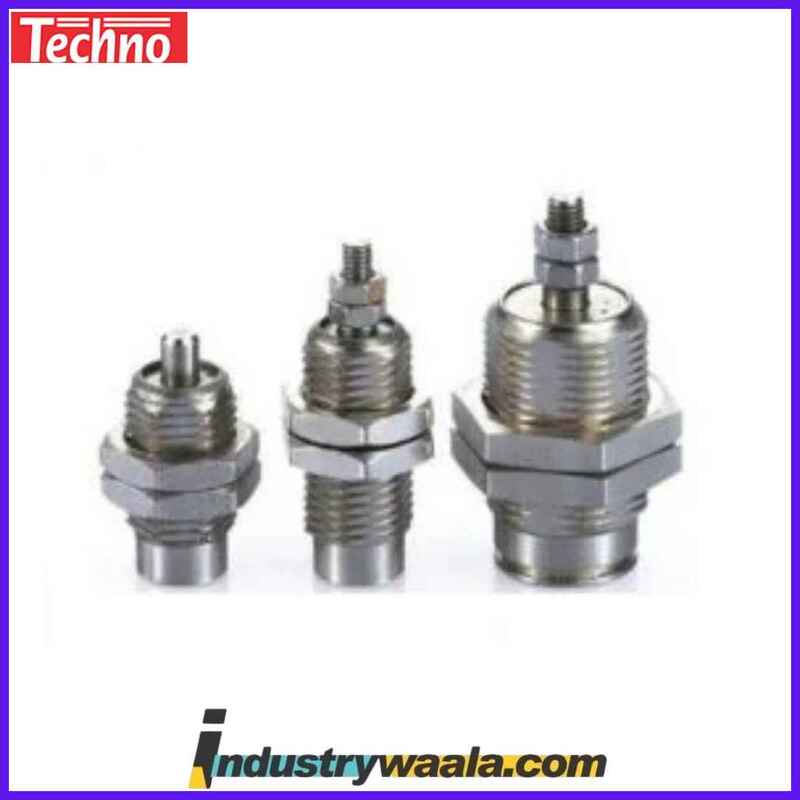

Techno CJPB6 X 15 Pneumatic Cylinder

The Techno CJPB6 X 15 Pneumatic Cylinder is a double-acting pneumatic actuator designed for precise and efficient linear motion in compact spaces. Featuring a 6 mm bore and 15 mm stroke, this cylinder is ideal for applications that require short but accurate movements. Its compact size makes it perfect for systems with limited space, while its robust design ensures reliable performance in a wide range of industries, including automation, material handling, robotics, and assembly lines.

The CJPB6 X 15 is constructed using high-quality materials for enhanced durability. It features a stainless steel piston rod, which provides superior strength and wear resistance, ensuring long-lasting performance even in high-cycle operations. The anodized aluminum barrel offers excellent resistance to corrosion, allowing the cylinder to perform well in harsh or humid environments. These materials help reduce maintenance needs and increase the service life of the cylinder.

One of the key features of the CJPB6 X 15 is its end-of-stroke cushioning. This cushioning system helps reduce shock and provides smooth deceleration when the piston reaches the end of its stroke. This is important for preventing mechanical damage and wear, particularly in high-precision systems where smooth motion is crucial. The cushioning feature ensures that the cylinder operates reliably, reducing the risk of damage to both the cylinder and other components in the system.

In addition, the CJPB6 X 15 offers adjustable speed control for both the extension and retraction strokes. This allows users to fine-tune the speed of the cylinder, which is essential for applications that require high levels of precision, such as in pick-and-place systems, packaging lines, or robotic arms. By adjusting the speed, the cylinder can be optimized for specific tasks, ensuring smooth and accurate motion in various settings.

The cylinder also provides flexibility in installation, with various mounting options including foot, flange, and trunnion mounts, making it adaptable to different system configurations. The CJPB6 X 15 operates efficiently within a pressure range of 1.5 to 10 bar and is suitable for a temperature range of -10°C to 80°C, ensuring reliable performance in a wide range of environments and applications.

Key Features:

• Cylinder Type: Double-acting pneumatic cylinder designed for controlled extension and retraction.
• Bore Size: 6 mm, perfect for compact applications requiring moderate force.
• Stroke Length: 15 mm, ideal for precise short linear movements.
• Material Construction:Stainless steel piston rod for strength and durability, anodized aluminum barrel for corrosion resistance.
• End-of-Stroke Cushioning: Smooth deceleration to reduce shock and prevent mechanical damage.
• Adjustable Speed Control: Allows precise control over extension and retraction speeds for optimal performance.
• Mounting Options:Foot, flange, and trunnion mounts for flexible installation.
• Operating Pressure Range: 1.5 to 10 bar, suitable for various industrial applications.
• Temperature Range: -10°C to 80°C, adaptable to diverse working conditions.

Technical Specifications:

• Bore Size: 6 mm
• Stroke Length: 15 mm
• Operating Pressure: 1.5 to 10 bar (15-1000 kPa)
• Piston Rod Material: Stainless steel for high strength and wear resistance.
• Cylinder Barrel Material: Anodized aluminum for smooth operation and corrosion resistance.
• Mounting Types: Foot, flange, trunnion
• Temperature Range: -10°C to 80°C
• Cushioning: End-of-stroke cushioning for reduced shock and smoother operation.
• Speed Control: Adjustable for fine control over movement speeds.

Applications:

The Techno CJPB6 X 15 Pneumatic Cylinder is highly versatile and suitable for applications that require compact, precise, and reliable motion in confined spaces. Common applications include:

• Automation Systems: Used in robotic arms, pick-and-place systems, and conveyor systems where compact, controlled movements are needed.
• Material Handling: Ideal for sorting, positioning, and handling materials in confined spaces, such as in automated warehouses or conveyor belts.
• Packaging Systems: Perfect for positioning and clamping products in packaging lines that require precise movements.
• Assembly Lines: Ideal for clamping, holding, and positioning components in automated assembly systems.
• Medical Devices: Can be used in medical equipment for controlled, precise linear movements in confined spaces.

Advantages:

• Compact Design: The 6 mm bore and 15 mm stroke make this cylinder ideal for installations where space is at a premium but moderate force is still required.
• Durability: The stainless steel piston rod and anodized aluminum barrel ensure the cylinder’s longevity and resistance to wear and corrosion.
• Smooth Operation: The end-of-stroke cushioning feature minimizes shock and ensures smooth, controlled motion at the end of the stroke, protecting both the cylinder and surrounding components.
• Adjustable Speed Control: The ability to adjust the extension and retraction speeds allows for precise movement control in a variety of applications.
• Flexible Mounting Options: Available foot, flange, and trunnion mounts make it adaptable to different installation configurations.
• Wide Operating Range: Capable of operating within a pressure range of 1.5 to 10 bar and a temperature range of -10°C to 80°C, making it suitable for a variety of environments.

Summary:

The Techno CJPB6 X 15 Pneumatic Cylinder is a reliable, high-performance actuator that is ideal for applications requiring precise, short linear movements in tight spaces. Its durable construction, stainless steel piston rods, and anodized aluminum barrel ensure long-lasting operation even in demanding environments. With end-of-stroke cushioning, adjustable speed control, and versatile mounting options, the cylinder is highly adaptable for a range of applications in automation, material handling, robotics, and packaging systems. Operating within a pressure range of 1.5 to 10 bar and a temperature range of -10°C to 80°C, it offers consistent and reliable performance across various industrial applications.
