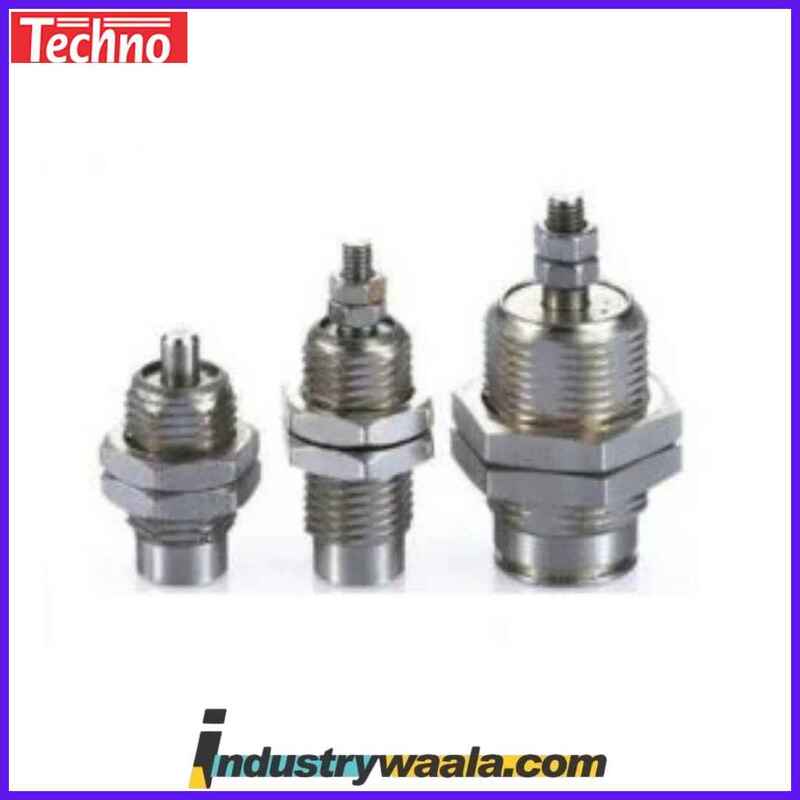

Techno CJPB6 X 5 Pneumatic Cylinder

The Techno CJPB6 X 5 Pneumatic Cylinder is a double-acting pneumatic actuator designed for precise and efficient linear motion in applications where space is limited. With a 6 mm bore and 5 mm stroke, this cylinder is ideal for use in compact systems that require moderate force over short distances. The CJPB6 X 5 is built for reliability and durability, making it suitable for a wide range of industries, including automation, robotics, and material handling.

Constructed from high-quality materials, the cylinder features a stainless steel piston rod that provides high strength and resistance to wear, ensuring long-lasting performance even in environments where frequent cycling is required. The anodized aluminum barrel provides excellent resistance to corrosion, ensuring the cylinder can operate effectively even in harsh or humid conditions.

The Techno CJPB6 X 5 is equipped with end-of-stroke cushioning, which ensures smooth and controlled deceleration when the piston reaches the end of its stroke. This cushioning feature reduces mechanical shock, helping to protect both the cylinder and surrounding components from damage due to excessive impact. This is especially beneficial in systems that require high precision, such as automated assembly lines or packaging systems.

For applications requiring fine control, the adjustable speed control allows users to set the extension and retraction speeds, providing flexibility for different tasks. This feature ensures that the cylinder can operate smoothly and accurately, which is particularly useful in pick-and-place systems, robotic arms, and conveyor belts where precision is key.

With a variety of mounting options available, including foot, flange, and trunnion mounts, the CJPB6 X 5 offers flexibility in installation, making it easy to integrate into various system configurations. The cylinder operates efficiently within a pressure range of 1.5 to 10 bar and is capable of withstanding a temperature range of -10°C to 80°C, ensuring reliable performance across a wide range of environments.

Key Features:

• Cylinder Type: Double-acting pneumatic cylinder for controlled extension and retraction.
• Bore Size: 6 mm, ideal for compact applications requiring moderate force.
• Stroke Length: 5 mm, perfect for short, precise linear movements.
• Material Construction:Stainless steel piston rod for strength and wear resistance, anodized aluminum barrel for corrosion resistance.
• End-of-Stroke Cushioning: Smooth deceleration at the end of the stroke to reduce shock and mechanical impact.
• Adjustable Speed Control: Fine-tune the extension and retraction speeds for precise control.
• Mounting Options: Available in foot, flange, and trunnion mounts for flexible installation.
• Operating Pressure Range: 1.5 to 10 bar, suitable for a variety of industrial tasks.
• Temperature Range: -10°C to 80°C, making it adaptable to different working environments.

Technical Specifications:

• Bore Size: 6 mm
• Stroke Length: 5 mm
• Operating Pressure: 1.5 to 10 bar (15-1000 kPa)
• Piston Rod Material: Stainless steel for high strength and durability.
• Cylinder Barrel Material: Anodized aluminum for corrosion resistance and smooth operation.
• Mounting Types: Foot, flange, trunnion
• Temperature Range: -10°C to 80°C
• Cushioning: End-of-stroke cushioning for reduced shock and smoother operation.
• Speed Control: Adjustable for precise movement control.

Applications:

The Techno CJPB6 X 5 Pneumatic Cylinder is highly versatile and is suitable for a wide range of applications that require compact, controlled, and precise motion. Some of its common applications include:

• Automation Systems: Ideal for use in robotic arms, pick-and-place systems, and conveyor systems, where small, precise movements are required.
• Material Handling: Used in sorting, positioning, and handling materials in automated systems, particularly in tight spaces where standard cylinders might not fit.
• Packaging Systems: Perfect for applications in packaging lines where precise movements and compact cylinders are required to handle products.
• Assembly Lines: Used for clamping, positioning, and holding components in automated assembly systems that require small but reliable linear actuators.
• Medical Devices: Can be used in medical equipment for tasks that demand precise linear movements within confined spaces.

Advantages:

• Compact Design: The 6 mm bore and 5 mm stroke make this cylinder ideal for installations where space is at a premium.
• Durability: Constructed with stainless steel piston rods and an anodized aluminum barrel, ensuring long-term performance and resistance to corrosion and wear.
• Smooth Operation:End-of-stroke cushioning minimizes mechanical shock, extending the life of the cylinder and surrounding components.
• Adjustable Speed Control: Allows for precise adjustment of extension and retraction speeds, enabling fine control over the motion.
• Flexible Mounting: Multiple mounting options provide versatility in integrating the cylinder into different system designs.
• Wide Operating Range: With an operating pressure range of 1.5 to 10 bar and a temperature range of -10°C to 80°C, the cylinder is suitable for a variety of environments and industrial applications.

Summary:

The Techno CJPB6 X 5 Pneumatic Cylinder is a reliable, high-performance actuator that is well-suited for applications requiring precise, short linear movements in confined spaces. Constructed with durable stainless steel piston rods and a corrosion-resistant anodized aluminum barrel, it ensures long-lasting performance. The end-of-stroke cushioning, adjustable speed control, and flexible mounting options make it highly adaptable for tasks in automation, material handling, robotics, and packaging systems. Operating within a pressure range of 1.5 to 10 bar and a temperature range of -10°C to 80°C, this cylinder offers reliable performance across various industrial environments.
