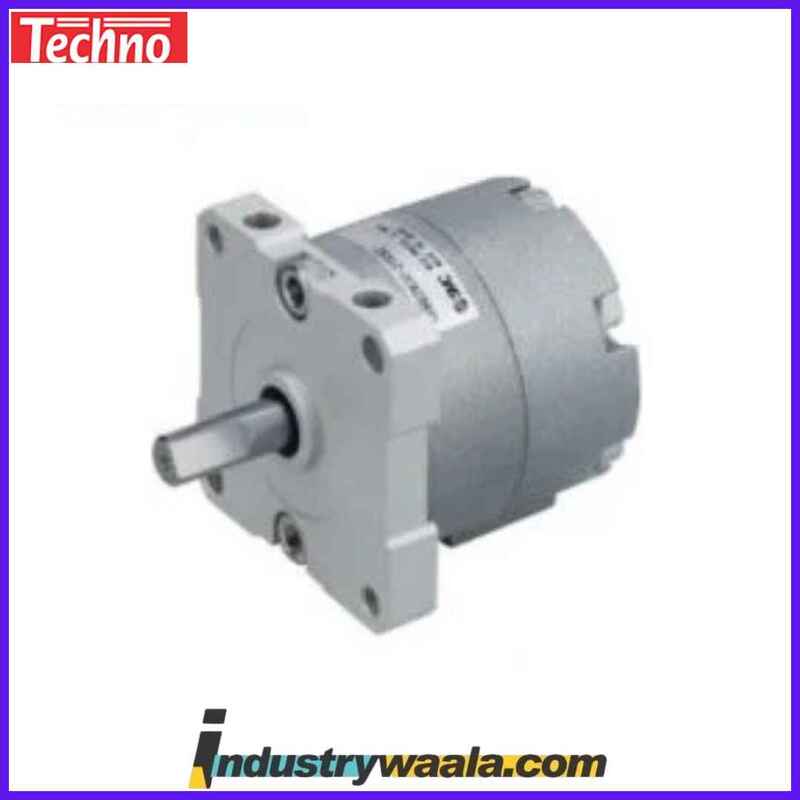

Techno CRB2BW-15 180 Pneumatic Cylinder

The Techno CRB2BW-15 x 180 Pneumatic Cylinder is a high-performance double-acting actuator designed for applications requiring moderate to heavy-duty linear motion. With a 15 mm bore and 180 mm stroke, this pneumatic cylinder delivers reliable and controlled movement for a wide range of industrial tasks, from automation systems to material handling and clamping operations.

The CRB2BW-15 x 180 features a stainless steel piston rod and anodized aluminum barrel, offering superior durability and corrosion resistance, ensuring that it operates efficiently even in harsh environments. The cylinder is equipped with end-of-stroke cushioning, which helps absorb shock and reduces wear and tear on the system, promoting longevity and smooth operation.

To further enhance performance, the cylinder is designed with adjustable speed control, allowing precise regulation of the piston’s extension and retraction speeds. This feature is particularly useful in applications that require exact movement control, ensuring smooth operation without sudden jerks or vibrations.

With multiple mounting options such as foot, flange, and trunnion, the Techno CRB2BW-15 x 180 offers flexibility in installation, allowing users to integrate it into a variety of systems and setups. It operates within a pressure range of 1.5 to 10 bar, providing the flexibility to adjust force requirements for different tasks.

Key Features:

• Cylinder Type: Double-acting pneumatic cylinder that utilizes compressed air for both extension and retraction, ensuring controlled linear motion in both directions.
• Bore Size: 15 mm bore size, offering moderate force output, making it ideal for applications requiring medium-duty actuation.
• Stroke Length: 180 mm stroke length, providing ample travel for various tasks that require a longer reach.
• Material Construction: Constructed with a stainless steel piston rod and anodized aluminum barrel, the cylinder offers exceptional durability, resistance to wear, and protection against corrosion.
• End-of-Stroke Cushioning: The end-of-stroke cushioning minimizes impact at the ends of the piston’s travel, reducing mechanical shock and enhancing the longevity of the cylinder and the system.
• Adjustable Speed Control: Allows for the adjustment of extension and retraction speeds, offering greater control over the cylinder’s motion to accommodate specific application needs.
• Mounting Options: Flexible installation with multiple mounting types, including foot, flange, and trunnion, for easy integration into various applications and systems.
• Operating Pressure Range: The cylinder operates effectively within a pressure range of 1.5 to 10 bar (15-1000 kPa), allowing for flexible force adjustment based on requirements.
• Temperature Range: Suitable for environments with temperatures ranging from -10°C to 80°C, making it versatile for various operational conditions.

Technical Specifications:

• Bore Size: 15 mm
• Stroke Length: 180 mm
• Operating Pressure: 1.5 to 10 bar (15-1000 kPa)
• Piston Rod Material: Stainless steel
• Cylinder Barrel Material: Anodized aluminum
• Sealing Material: Polyurethane (commonly used for seals)
• Mounting Types: Foot, flange, trunnion
• Temperature Range: -10°C to 80°C
• Cushioning: End-of-stroke cushioning
• Speed Control: Adjustable speed control valves

Applications:

The Techno CRB2BW-15 x 180 Pneumatic Cylinder is well-suited for a variety of industrial and automation applications that require reliable linear motion with a medium force output. Some common uses include:

• Automation Systems: Ideal for robotic arms, conveyor systems, and pick-and-place applications, where precise and repeatable movement is essential for handling parts or components.
• Material Handling: Suitable for use in material handling systems for positioning, moving, and sorting materials or products, ensuring smooth and controlled motion across various stages of the process.
• Clamping and Positioning: The cylinder is often used in clamping and positioning systems where consistent and reliable movement is critical, such as in machinery used for assembly, packaging, or testing.
• Packaging Systems: The CRB2BW-15 x 180 is also useful for packaging, sorting, and sealing operations, where controlled force and motion are needed to position and manipulate items efficiently.

Advantages of the CRB2BW-15 x 180:

• Increased Durability: The stainless steel piston rod and anodized aluminum barrel provide superior protection against wear and corrosion, increasing the cylinder's longevity and performance over time.
• Precise Control: Features like end-of-stroke cushioning and adjustable speed control offer precise motion control, reducing mechanical shock and enabling smoother operation, which is crucial for sensitive tasks.
• Versatile Installation: The multiple mounting options provide flexibility for installation in a variety of systems and machine designs, whether stationary or dynamic.
• Reliable Performance: With an operating pressure range of 1.5 to 10 bar, the CRB2BW-15 x 180 can be adapted for different force requirements, making it versatile across a broad range of applications.
• Space-Efficient: Despite its medium force output, the cylinder is designed to operate efficiently within a compact form factor, making it ideal for environments where space is at a premium.

Summary:

The Techno CRB2BW-15 x 180 Pneumatic Cylinder is a versatile and durable actuator, built to provide reliable, controlled linear motion in a variety of industrial and automation applications. With a 15 mm bore and 180 mm stroke, it offers medium-duty force and a relatively long travel distance. Constructed with high-quality stainless steel and anodized aluminum, the cylinder is designed to withstand wear and corrosion, ensuring longevity and consistent performance. Features such as end-of-stroke cushioning, adjustable speed control, and multiple mounting options make the CRB2BW-15 x 180 an ideal choice for a wide range of applications, including automation, material handling, and clamping. Its ability to operate within a pressure range of 1.5 to 10 bar further enhances its versatility in various operational conditions.
