| Brand Name : | TECHNO |
| Model no. : | CXS32x25-S |
| Type of Product : | Pneumatic Cylinder |
| Quantity : | 1 pcs |
| Weight | 1 kg |
| Dimensions (L x W x H) | 10 x 10 x 15 |

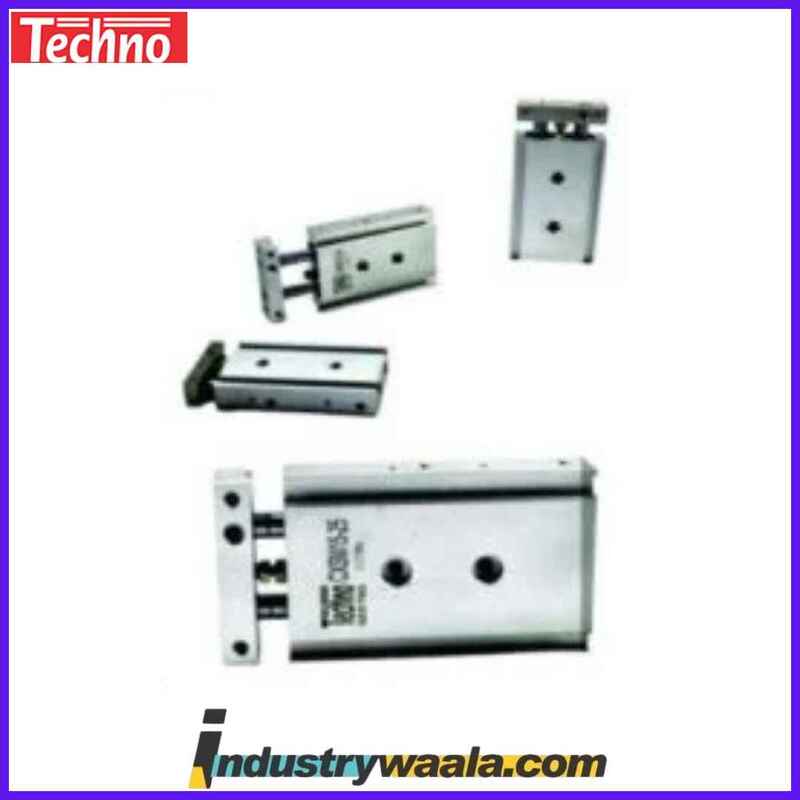

The Techno CXS32x25-S Pneumatic Cylinder Series is a high-performance pneumatic actuator designed for applications that require precise linear motion in medium-duty industrial environments. Featuring a 32 mm bore size and 25 mm stroke length, the CXS32x25-S offers a compact yet powerful solution for a variety of automation, material handling, and assembly tasks. This cylinder is engineered to provide smooth, reliable, and energy-efficient performance, making it ideal for systems where space constraints and precision are key considerations.
Product Overview:
The Techno CXS32x25-S Pneumatic Cylinder is a double-acting actuator, meaning it uses compressed air to extend and retract the piston. This design ensures smooth motion in both directions, allowing the cylinder to perform a wide range of tasks with controlled, repeatable linear movement. The 32 mm bore size strikes an optimal balance between force output and compact design, providing enough power for medium-duty applications without taking up excessive space.
The 25 mm stroke length makes the CXS32x25-S ideal for applications where limited movement is required. Its small stroke is suitable for tasks that involve small positioning, pushing, or lifting motions in confined spaces. Despite its compact design, the CXS32x25-S is engineered for durability and long service life, even under continuous operation.
The cylinder's body is made of anodized aluminum, providing corrosion resistance and structural strength. The hardened steel piston rod is built to withstand wear and tear, ensuring that the cylinder can handle frequent use without loss of performance. The CXS32x25-S is also equipped with high-quality seals that reduce friction and leakage, further extending the lifespan of the cylinder while ensuring smooth and efficient operation.
Additionally, the CXS32x25-S can be equipped with an optional magnetic piston, which allows for easy integration with position sensors. This feature is particularly useful in automated systems that require real-time position feedback for precise control of movement.
Key Features:
- Bore Size: The 32 mm bore provides an ideal balance between compactness and force, offering sufficient power for medium-duty applications while maintaining a small footprint.
- Double-Acting Design: The double-acting configuration uses compressed air to extend and retract the piston, providing smooth and controlled motion in both directions. This design is suitable for applications requiring precise, repeatable linear movement.
- Customizable Stroke Length: The 25 mm stroke length is designed for applications that require a limited range of motion. This short stroke length is ideal for tasks that require fine positioning or small adjustments.
- Durable Construction: The anodized aluminum body provides corrosion resistance and structural strength, while the hardened steel piston rod offers superior wear resistance, making the cylinder durable and reliable in demanding environments.
- Magnetic Piston Option: The magnetic piston option enables easy integration with position sensors, allowing for real-time feedback on the position of the piston. This is crucial for applications requiring precise motion control in automated systems.
- High-Quality Seals: The CXS32x25-S is equipped with high-performance seals that minimize leakage and reduce friction, ensuring smooth operation and longer service life with minimal maintenance.
- Operating Pressure Range: The cylinder operates within a pressure range of 1.5 to 8 bar, providing efficient performance in a wide variety of industrial applications.
- Compact Design: The 32 mm bore and 25 mm stroke length make this cylinder ideal for use in space-constrained environments where compact actuators are required without sacrificing performance.
- Flexible Mounting Options: The CXS32x25-S offers a variety of mounting options, including foot mounting and flange mounting, allowing for easy integration into different systems and configurations.
Applications:
The Techno CXS32x25-S Pneumatic Cylinder Series is suitable for a wide range of applications where space is limited but precise, reliable motion is required. Some common applications include:
- Automation Systems: The compact size and precise movement make it ideal for automated systems, including assembly lines, pick-and-place applications, and material handling systems.
- Robotics: The CXS32x25-S is well-suited for robotic arms and other robotic systems that need to perform small, precise movements in a limited space.
- Packaging: Commonly used in packaging machinery for tasks like positioning, sorting, or pushing products, the short stroke length ensures fine adjustments.
- Textile Machinery: Ideal for textile machinery that requires precise, repeatable movement in a small form factor.
- Medical Equipment: The small size of the cylinder makes it perfect for medical devices or laboratory equipment that require compact, accurate motion.
- Electronics Assembly: Perfect for use in electronics manufacturing where small, controlled movements are needed for assembly or testing processes.
- Food Processing: Can be used in food processing lines where space-saving actuators are needed for tasks such as sorting, packaging, and moving components.
Performance Characteristics:
- Moderate Force Output: The 32 mm bore provides sufficient force for medium-duty tasks, making the cylinder ideal for applications that require moderate force but need to conserve space.
- Precise Motion: The 25 mm stroke length offers precise movement in applications that do not require large ranges of motion, allowing for fine adjustments.
- Energy Efficient: The CXS32x25-S is designed to operate efficiently within its 1.5 to 8 bar pressure range, helping to reduce energy consumption without sacrificing performance.
- Low Maintenance: The durable construction and high-quality seals ensure that the cylinder requires minimal maintenance, reducing downtime and operational costs.
Specifications:
- Bore Size: 32 mm
- Stroke Length: 25 mm (customizable)
- Operating Pressure: 1.5 to 8 bar
- Materials: Anodized aluminum body, hardened steel piston rod, high-performance seals
- Magnetic Piston: Available for position sensor integration
- Mounting Options: Foot, flange, and other custom mounting options
- Temperature Range: Suitable for various industrial applications with standard operating temperature ranges.
Advantages:
- Compact and Efficient: The 32 mm bore and 25 mm stroke provide a compact yet powerful actuator suitable for tight spaces while maintaining strong performance for medium-duty tasks.
- Low Maintenance: The use of high-quality seals and durable materials ensures a long service life with minimal maintenance requirements.
- Precise Control: The cylinder's small stroke length allows for precise movement, making it ideal for tasks requiring fine adjustments or small positioning changes.
- Flexible Mounting: The versatile mounting options provide flexibility in system design, allowing easy integration into various configurations.
- Cost-Effective: With its efficient design and low-maintenance features, the CXS32x25-S offers a cost-effective solution for medium-duty applications.
Installation and Maintenance:
- Installation: The CXS32x25-S can be easily installed using its available mounting options, making it adaptable to various system designs and configurations.
- Maintenance: Regular inspection of seals and lubrication is recommended to ensure optimal performance, but the cylinder is designed to require minimal maintenance, thanks to its high-quality materials and durable construction.
Conclusion:
The Techno CXS32x25-S Pneumatic Cylinder Series offers a compact, reliable, and efficient solution for medium-duty industrial applications where space constraints and precision are important. With its 32 mm bore size, 25 mm stroke length, and double-acting design, it delivers consistent, repeatable motion for tasks requiring fine adjustments. The CXS32x25-S is ideal for use in automation, material handling, robotics, packaging, and other industries, offering a durable and low-maintenance option that improves performance while saving space.
