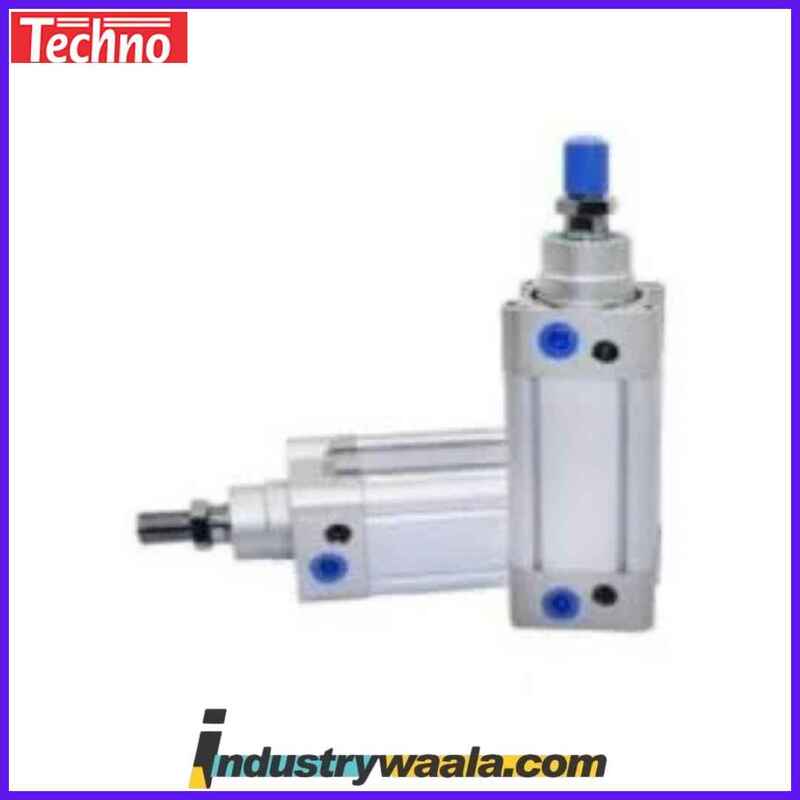

Techno DNC100 X 200-S Pneumatic Cylinder

The Techno DNC100 X 200-S Pneumatic Cylinder is a high-performance, double-acting pneumatic actuator designed for precise motion control in various industrial and automation applications. With a 100mm bore diameter and 200mm stroke length, this cylinder provides powerful force output and smooth, controlled motion over a medium-to-long travel distance. It is part of Festo’s renowned DNC series, known for its durability, versatility, and excellent performance in demanding environments.

Overview

The Techno DNC100 X 200-S Pneumatic Cylinder is engineered to deliver efficient and reliable performance in applications requiring both substantial force and moderate-to-long stroke lengths. The 100mm bore diameter allows for high force output, while the 200mm stroke length offers a broader range of movement for a variety of industrial tasks. Designed for high-cycle operations, the DNC100 X 200-S is suitable for use in assembly lines, material handling systems, robotic automation, and other tasks where precision and reliability are critical.

Key Features

1. Design and Construction:
   • The 100mm bore diameter ensures that the cylinder can generate substantial force while maintaining efficient operation. This makes it ideal for medium-duty to heavy-duty applications.
   • The 200mm stroke length provides a longer range of motion compared to smaller cylinders, making it suitable for applications requiring greater travel or displacement.
   • Constructed from anodized aluminum, the cylinder is lightweight and highly resistant to corrosion and wear, making it durable and long-lasting in both indoor and outdoor environments.
   • The S in the model name denotes a standard design, meaning the cylinder is adaptable to a wide variety of mounting configurations and easy to integrate into existing systems.
2. Performance:
   • The double-acting design enables the cylinder to operate efficiently in both extension and retraction, providing smooth and controlled motion in both directions.
   • Pneumatic cushioning is incorporated at both ends of the cylinder, ensuring gradual deceleration as the piston reaches the end of its stroke. This reduces impact, minimizes noise, and enhances the cylinder’s longevity by preventing excessive wear.
   • The magnetic piston enables position sensing, which is useful for providing feedback to automated systems. This feature is essential for ensuring accurate positioning and control in industrial applications.
3. Applications:
   • The DNC100 X 200-S pneumatic cylinder is perfect for applications requiring moderate-to-long stroke lengths, such as clamping, pressing, material handling, lifting, and robotic movements.
   • It is commonly used in automated assembly lines, packaging machinery, conveyor systems, and robotic arms, where precise and controlled movement is essential.
   • This cylinder is also suitable for use in textile machinery, automotive production, electronics assembly, and food processing, where high-performance actuators are needed for repetitive or high-cycle operations.
4. Mounting and Installation:
   • The DNC100 X 200-S offers various mounting options, such as flange, foot, and through-hole mounts. This allows for flexibility in installation, enabling the cylinder to be positioned in various configurations depending on the application.
   • Mounting accessories are available to simplify installation, ensuring that the cylinder remains securely fixed and aligned during operation.
5. Durability and Material Composition:
   • The anodized aluminum construction provides resistance to corrosion, abrasion, and environmental damage, ensuring long-term reliability even in harsh conditions.
   • The internal seals and components are designed to withstand high-pressure operations and ensure smooth performance over extended cycles.
6. Pressure and Force:
   • The DNC100 X 200-S operates within a pressure range of 1.5 to 8 bar, providing consistent and efficient force output for various applications.
   • With its 100mm bore, the cylinder can generate a significant amount of force, making it effective for applications requiring substantial power over moderate-to-long stroke lengths.
7. Compatibility:
   • The DNC100 X 200-S is compatible with a variety of Festo accessories, such as position sensors, pneumatic valves, and cushions, which allow for enhanced performance and system integration.
   • It is also easily integrated into automation systems, offering the flexibility to work with other components like sensors and controllers for precise control over motion.

Advantages

• Long stroke length (200mm) allows for applications requiring substantial travel, making it ideal for tasks like lifting, pressing, and other applications requiring extended range.
• Double-acting design offers smooth, efficient operation in both extension and retraction, maximizing performance and minimizing energy loss.
• Pneumatic cushioning at both ends of the stroke reduces impact and wear, enhancing cylinder longevity and reducing the need for frequent maintenance.
• Magnetic piston provides position sensing, making it suitable for integration with automated systems and improving operational accuracy.
• Durable anodized aluminum construction ensures resistance to wear, corrosion, and environmental damage, ensuring a long service life in industrial environments.
• Multiple mounting options provide flexibility during installation, ensuring compatibility with various machine configurations and systems.

Conclusion

The Techno DNC100 X 200-S Pneumatic Cylinder is a robust, high-performance solution for applications that require substantial force and moderate-to-long stroke lengths. Its double-acting operation, pneumatic cushioning, and magnetic piston provide smooth, controlled motion and accurate position feedback, making it ideal for use in a variety of industrial settings. The cylinder’s durable anodized aluminum construction ensures long-lasting reliability, while its flexible mounting options make it easy to integrate into existing systems. Whether used in automation systems, material handling, robotic arms, or assembly lines, the DNC100 X 200-S provides consistent and efficient performance in demanding industrial environments.
