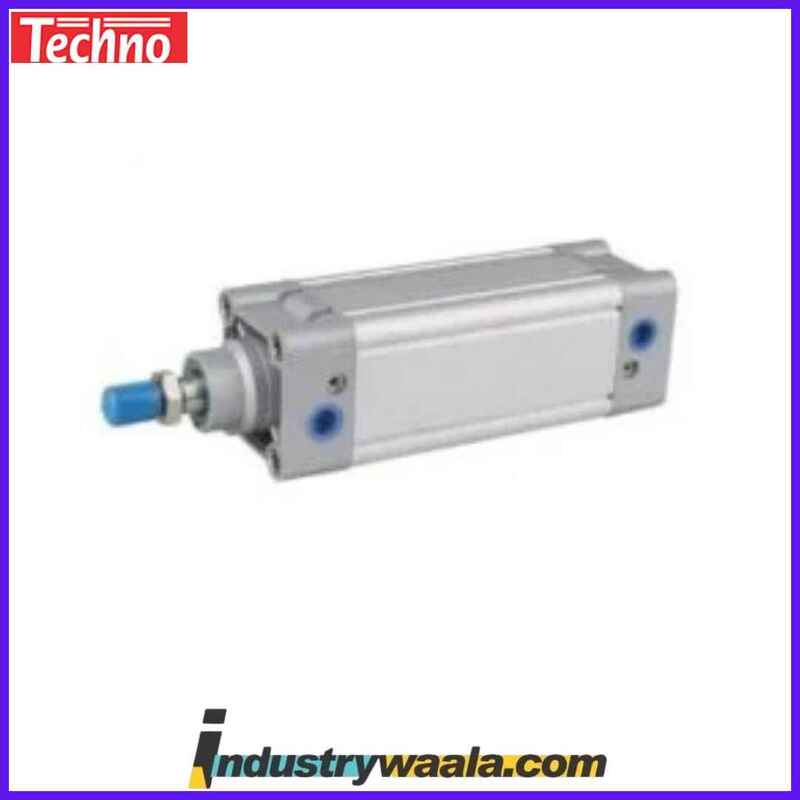

TECHNO DNC100 X 600-S Pneumatic Cylinder

The TECHNO DNC100 x 600-S Pneumatic Cylinder is a double-acting pneumatic actuator engineered for high-performance applications that require significant force and precise linear motion over extended distances. Designed with a 100 mm bore and a 600 mm stroke, this cylinder is built to deliver reliable performance in medium to heavy-duty industrial systems, including automation, robotics, material handling, and assembly processes.

Detailed Description of the DNC100 x 600-S Pneumatic Cylinder:

1. Type of Cylinder: Double-Acting

• The DNC100 x 600-S is a double-acting cylinder, meaning it uses compressed air to extend the piston in one direction and retract it in the opposite direction. This design provides controlled movement in both directions, ensuring precise and repeatable actions required in automation systems or other industrial processes.

2. Bore Size: 100 mm

• The 100 mm bore indicates the internal diameter of the piston, providing a large surface area for force generation. This large bore allows the cylinder to generate significant force, making it suitable for tasks that require high output, such as pushing, lifting, clamping, or pressing. The larger bore size is ideal for medium to heavy-duty applications, where force output and efficiency are critical.

3. Stroke Length: 600 mm

• The 600 mm stroke refers to the total distance the piston can travel from its fully extended position to its fully retracted position. With such a long stroke length, the DNC100 x 600-S is capable of providing substantial movement in applications that require extended reach or travel. This feature is ideal for tasks such as material handling, lifting, or moving components across long distances in manufacturing or assembly lines.

4. Mounting Options:

• The DNC100 x 600-S pneumatic cylinder offers several mounting options to ensure flexibility in installation. Common mounting configurations include:
  • Foot mounting: Allows for the cylinder to be securely attached to a flat surface, providing a stable foundation for operations.
  • Flange mounting: Ideal for applications where the cylinder needs to be mounted directly to a frame or structure, especially in confined spaces.
  • Trunnion mounting: Useful when rotation is required, such as in robotic arms, tilting devices, or adjustable positioning systems.

These mounting options ensure that the DNC100 x 600-S can be easily integrated into various machine designs and environments.

5. Cushioning:

• The DNC100 x 600-S features adjustable cushioning at both ends of the stroke. This cushioning system reduces the impact at the end positions of the piston stroke, preventing sudden stops that could cause mechanical shock or damage. The adjustable feature allows for fine-tuning of the cushioning to optimize performance and reduce noise and wear, contributing to the overall longevity of the cylinder and associated machinery.

6. Material and Construction:

• Constructed from anodized aluminum for the body, the DNC100 x 600-S combines lightweight construction with high durability. The anodized finish provides corrosion resistance, making the cylinder suitable for a wide range of industrial environments. The end caps are made from strong materials to ensure a secure seal and maintain internal pressure. High-quality seals, often made from NBR (Nitrile Rubber), ensure minimal air leakage, improving efficiency and reducing the need for maintenance.

7. Operating Pressure Range:

• The DNC100 x 600-S operates within an operating pressure range of 1 to 10 bar (14.5 to 145 psi). This allows the cylinder to function effectively in a variety of pneumatic systems that require different levels of air pressure. The ability to operate efficiently within this range makes it versatile for a wide range of industrial applications.

8. Temperature Range:

• This pneumatic cylinder is designed to perform within a temperature range of -20°C to 80°C (-4°F to 176°F). This broad range makes the cylinder suitable for both cold and warm environments, ensuring reliable operation in diverse industrial conditions, from refrigerated areas to high-temperature environments.

9. Performance and Efficiency:

• The DNC100 x 600-S is designed for high efficiency, with low internal friction and high-quality seals that reduce energy consumption. The cylinder is engineered for long-term use, providing consistent performance even in continuous-duty applications. Its efficient design minimizes air leakage, ensuring that the cylinder operates at maximum effectiveness without excessive energy waste.

10. Applications:

• The DNC100 x 600-S Pneumatic Cylinder is ideal for a wide range of applications, including:
  • Material handling: Used in automated conveyor systems or robotic arms to transport materials over long distances.
  • Assembly lines: Providing precise, extended motion for tasks such as part insertion, positioning, or assembly.
  • Pressing and clamping: Perfect for industrial presses or clamping applications that require significant force over a long stroke.
  • Lifting and positioning: Used in applications that require lifting or positioning heavy loads with precision, such as palletizing or stacking.
  • Robotic systems: Integrated into robotic arms for accurate movement and positioning in complex tasks like welding or assembly.

11. ISO Standard Compliance:

• The DNC100 x 600-S pneumatic cylinder complies with ISO 6432 standards, ensuring compatibility with other components in the same series. This standardization makes it easy to replace or maintain, as well as integrate with other pneumatic components from different manufacturers that meet the same ISO specifications.

12. Environmental Resistance:

• The cylinder’s design is resistant to external factors such as dust, dirt, and moisture, making it suitable for use in industrial environments with challenging conditions. Its robust construction ensures reliable operation even in harsher settings, reducing the need for frequent maintenance and improving its overall service life.

Key Advantages of the TECHNO DNC100 x 600-S Pneumatic Cylinder:

• High Force Output: With a 100 mm bore, this cylinder provides a substantial force output, making it ideal for medium to heavy-duty applications.
• Long Stroke: The 600 mm stroke length allows for extended movement, perfect for tasks that require large displacement or long-distance motion.
• Adjustable Cushioning: Reduces mechanical shock, extending the life of the cylinder and ensuring smooth operation throughout its cycle.
• Versatile Mounting: Multiple mounting options ensure flexibility in installation, allowing the cylinder to be integrated into various machinery setups.
• ISO 6432 Compliance: Ensures compatibility and easy replacement with other pneumatic components, reducing downtime and simplifying maintenance.

Conclusion:

The TECHNO DNC100 x 600-S Pneumatic Cylinder is a powerful, durable, and efficient solution for industrial applications requiring substantial force and extended motion. Its long stroke, high force output, and adjustable cushioning make it ideal for tasks like material handling, lifting, pressing, and robotic operations. With flexible mounting options, compliance with ISO standards, and reliable performance in a variety of environments, the DNC100 x 600-S is an excellent choice for demanding industrial systems.
