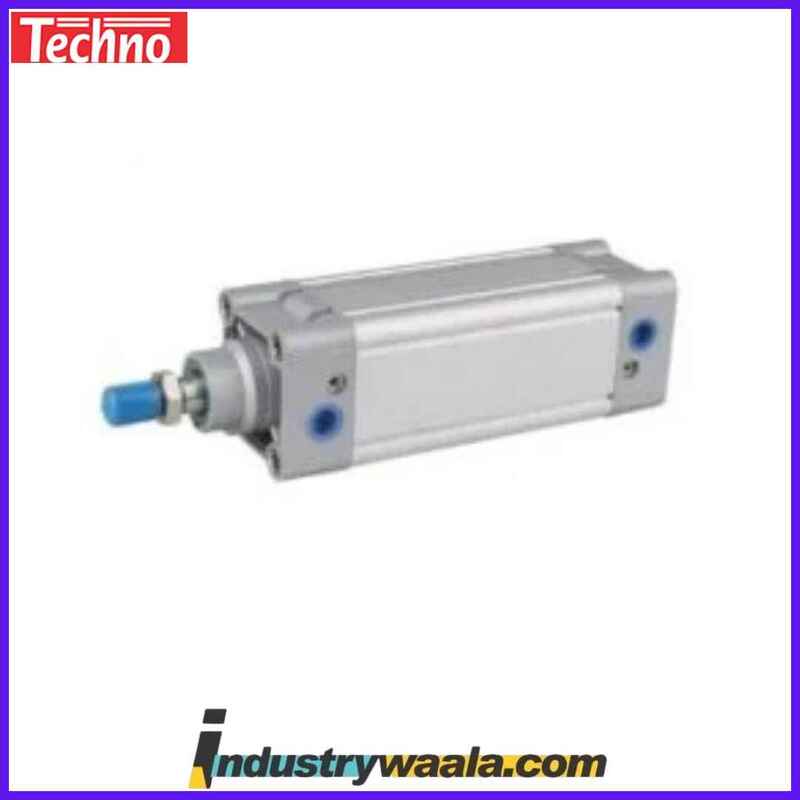

TECHNO DNC40 X 125-S Pneumatic Cylinder

The TECHNO DNC40 X 125-S is a double-acting pneumatic cylinder with a 40 mm bore and a 125 mm stroke. This compact, reliable cylinder is designed to provide precise linear motion for a variety of industrial applications. Its moderate stroke length and bore size make it suitable for tasks such as positioning, clamping, and material handling, where precise and controlled movement is required in confined spaces or areas with limited installation space.

Long Description of the TECHNO DNC40 X 125-S Pneumatic Cylinder:

• Model: TECHNO DNC40 X 125-S
• Type: Double-Acting Pneumatic Cylinder
• Bore Size: 40 mm
• Stroke Length: 125 mm

1. Bore Size (40 mm):

• The 40 mm bore offers a balanced combination of force output and compactness. This size is ideal for applications requiring moderate force and space-saving solutions. It provides reliable performance in a variety of tasks while keeping the overall cylinder size compact and efficient.

2. Stroke Length (125 mm):

• The 125 mm stroke is a medium length that allows the cylinder to provide sufficient movement for applications that do not require extended travel. This makes it suitable for precision movement tasks in machinery, positioning systems, and robotic arms.

3. Double-Acting Design:

• As a double-acting cylinder, the TECHNO DNC40 X 125-S is designed to provide movement in both extension and retraction using compressed air. This configuration is ideal for providing controlled motion in both directions, offering higher efficiency compared to single-acting cylinders and eliminating the need for external springs.

4. Operating Pressure:

• The DNC40 X 125-S operates effectively within a pressure range of 1 to 10 bar (14.5 psi to 145 psi). This gives users the flexibility to adjust the pressure based on the application requirements, enabling fine control over the force exerted during both extension and retraction strokes.

5. Durable Construction:

• Constructed from anodized aluminum and featuring a stainless steel piston rod, the cylinder is highly resistant to corrosion and wear. These materials ensure the cylinder’s long-lasting durability, even in challenging environments. The stainless steel rod further enhances resistance to abrasions and environmental factors, extending the product's lifespan.

6. Sealing System:

• The sealing system incorporates high-quality seals made from materials such as NBR (nitrile rubber) or PU (polyurethane), providing excellent performance in terms of leak prevention and smooth operation. The seals ensure minimal friction and longevity of the cylinder's internal components, even in harsh operating conditions.

7. Force Output:

• The 40 mm bore size provides a moderate force output, making the cylinder suitable for medium-duty applications where control and moderate power are needed. This cylinder is perfect for use in light to medium industrial tasks such as clamping, adjusting, and positioning components.

8. Mounting Options:

• The DNC40 X 125-S offers a range of mounting options, including foot mounting, flange mounting, and pivot mounting. These mounting styles allow the cylinder to be easily installed in a variety of configurations, making it highly adaptable to different systems and applications. The flexibility in mounting positions makes the cylinder suitable for automated machinery, assembly lines, and robotic systems.

9. Applications:

• Material Handling: Ideal for pick-and-place, sorting, and transporting small or lightweight components in automated material handling systems.
• Clamping: Frequently used in clamping applications where precise holding power is needed to secure parts or tools in machining operations.
• Positioning: Suitable for precise positioning tasks in automated systems, such as robotic arms or assembly lines, where controlled linear motion is required to move parts to exact locations.
• Automation: A common choice for pneumatic actuators in automation systems, where small travel distances are needed for precise, controlled motion.
• Robotic Systems: Often used in robotic arms for precise component movement or in machine tool setups for automated processes.

10. Speed Control:

• The cylinder offers the ability to adjust the speed of both the extension and retraction strokes. This allows users to fine-tune the performance, optimizing the cylinder’s motion for applications where smooth acceleration, deceleration, and precise timing are important.

11. Advantages:

• Compact Design: The 40 mm bore and 125 mm stroke make the cylinder suitable for applications where space is limited and a smaller footprint is required.
• Durability: The anodized aluminum body and stainless steel piston rod make it highly resistant to environmental factors, ensuring long-term reliability.
• Efficient Operation: The double-acting design allows for efficient use of compressed air, improving the overall energy efficiency of the system.
• Adaptability: A variety of mounting options makes it adaptable to a wide range of industrial and automation systems, ensuring compatibility with many machine configurations.
• Minimal Maintenance: The sealing system ensures minimal leakage and wear, reducing the need for frequent maintenance and improving operational uptime.

Summary:

The TECHNO DNC40 X 125-S is a compact and reliable pneumatic cylinder with a 40 mm bore and 125 mm stroke, ideal for medium-duty applications requiring precise linear motion. With a double-acting design, adjustable speed control, and various mounting options, this cylinder is suitable for material handling, clamping, positioning, and robotic systems. The durable construction of anodized aluminum and stainless steel piston rod ensures longevity and minimal maintenance, while the adjustable pressure range offers flexibility for different application needs.
