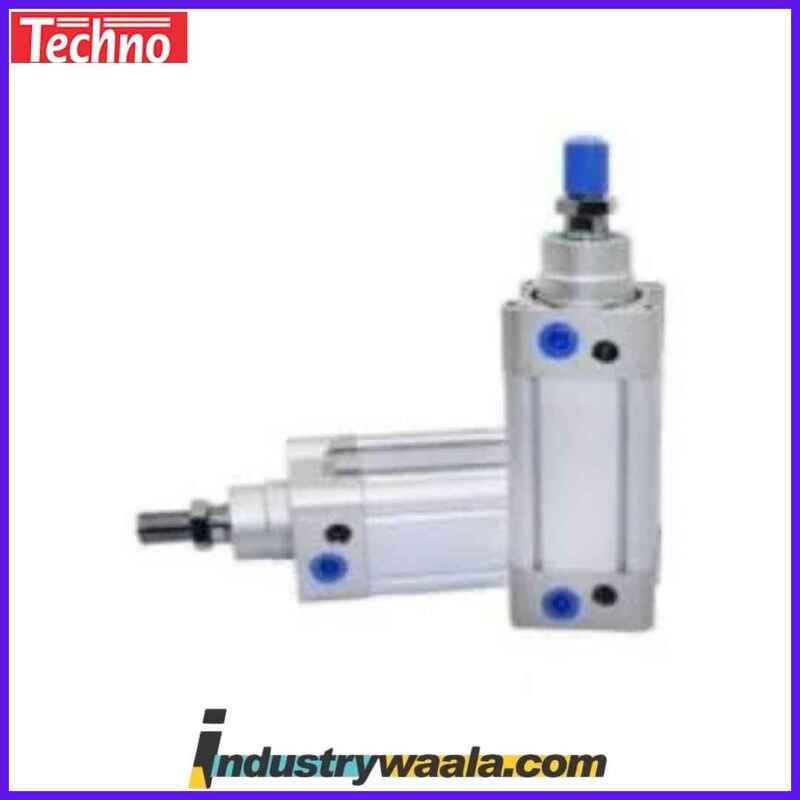

TECHNO DNC63 X 125-S Pneumatic Cylinder

The TECHNO DNC63 X 125-S pneumatic cylinder is a double-acting actuator designed for applications requiring precise and reliable linear motion with a balance of power and control. With a 63 mm bore and a 125 mm stroke, it is ideal for medium-duty tasks where both force and a moderate travel range are needed, such as clamping, pressing, material handling, and automated machinery. This cylinder is engineered to withstand demanding environments, offering durability and longevity through high-quality materials and an efficient sealing system.

Long Description of the TECHNO DNC63 X 125-S Pneumatic Cylinder:

• Model: TECHNO DNC63 X 125-S
• Type: Double-Acting Pneumatic Cylinder
• Bore Size: 63 mm
• Stroke Length: 125 mm

1. Bore Size (63 mm):

• The 63 mm bore refers to the internal diameter of the cylinder's bore, which determines the amount of force the cylinder can generate. A 63 mm bore is ideal for applications that require a medium level of force without being overly large or heavy. This bore size provides a strong yet controlled force output, suitable for tasks like pushing, clamping, lifting, and positioning parts within various automation and manufacturing systems.

2. Stroke Length (125 mm):

• The 125 mm stroke allows for a moderate travel distance, making it an excellent choice for applications requiring precision movement within a relatively short reach. This stroke length is particularly effective for handling components, adjusting parts, or performing smaller-scale movements in machinery. The shorter stroke also allows the cylinder to be compact and easy to integrate into systems with limited space.

3. Double-Acting Design:

• The double-acting design of the DNC63 X 125-S uses compressed air to push and pull the piston in both directions. This mechanism provides smooth, controlled movement during both the extension and retraction of the piston. Unlike a single-acting cylinder, which uses a spring or gravity for retraction, the double-acting cylinder ensures equal force in both directions, resulting in consistent and reliable performance for tasks requiring bidirectional motion.

4. Operating Pressure:

• The TECHNO DNC63 X 125-S operates within a typical pressure range of 1 bar (14.5 psi) to 10 bar (145 psi). The higher the air pressure, the greater the force the cylinder will generate. This versatility allows the DNC63 X 125-S to be used for a variety of applications, with the force output adjustable based on system needs.

5. Construction and Materials:

• The TECHNO DNC63 X 125-S is constructed from high-quality anodized aluminum for the cylinder body and stainless steel for the piston rod and end caps. This combination of materials ensures that the cylinder is both lightweight and corrosion-resistant, enabling it to perform reliably in demanding environments. The stainless steel piston rod offers enhanced durability and reduces wear over time, contributing to the longevity of the cylinder.

6. Sealing System:

• The cylinder is equipped with a high-performance sealing system that ensures smooth operation and reduces the risk of air leakage. Typically, the seals are made of Nitrile Rubber (NBR) or Polyurethane, materials chosen for their durability, wear resistance, and ability to function effectively in a wide range of environments. The sealing system also minimizes friction, allowing for higher efficiency and smoother movement.

7. Force Output:

• The force output of the TECHNO DNC63 X 125-S depends on the 63 mm bore and the operating pressure. At higher pressures, this cylinder is capable of generating significant force, making it suitable for applications that require medium-level pushing, lifting, or clamping. The combination of moderate bore size and stroke length ensures that the cylinder is capable of handling a broad range of tasks efficiently.

8. Mounting Options:

• The TECHNO DNC63 X 125-S offers multiple mounting options, allowing for flexible installation depending on the needs of the system. Common mounting styles include foot mounting, flange mounting, and pivot mounting. These mounting configurations allow the cylinder to be integrated into various types of machinery and equipment, making it a versatile solution for different industries.

9. Applications:

• Automation Systems: The DNC63 X 125-S is perfect for industrial automation tasks that require both precision and force in moderate travel ranges. It can be used in positioning, part manipulation, or assembly processes where controlled motion is critical.
• Material Handling: This pneumatic cylinder is also ideal for conveyor systems and other material handling applications, where a medium force and precise travel are needed to move or position components.
• Clamping and Pressing: The cylinder is useful for clamping or pressing tasks where a steady, controlled force is necessary. It can be used in various manufacturing and assembly line applications.
• Packaging and Assembly: In packaging machinery or assembly lines, this cylinder provides reliable force and motion to ensure products are positioned and packaged correctly, making it an essential component in automated systems.

10. Speed Control:

• The DNC63 X 125-S allows for adjustable speed control through flow control valves. This feature enables operators to modify the speed at which the piston extends and retracts, providing flexibility for different tasks that may require faster or slower motion. It allows for precise control in delicate operations, reducing the likelihood of damage to components and ensuring smoother, more accurate performance.

11. Advantages:

• Medium Force and Moderate Stroke: The 63 mm bore and 125 mm stroke make the DNC63 X 125-S suitable for medium-duty tasks that require a controlled and moderate range of movement.
• Durable and Long-lasting: Constructed from anodized aluminum and stainless steel, the cylinder is designed to withstand wear, harsh environments, and high cycle rates.
• Flexible Mounting: With multiple mounting options, it can be easily integrated into a wide variety of machinery and automated systems.
• Adjustable Speed: The ability to adjust the extension and retraction speed enhances the cylinder's versatility and ensures smooth, controlled movements for sensitive applications.
• Reliability: The double-acting design provides consistent performance in both directions, making it more efficient than single-acting cylinders.

Summary:

The TECHNO DNC63 X 125-S pneumatic cylinder, featuring a 63 mm bore and a 125 mm stroke, is ideal for medium-duty applications requiring both force and precise linear motion. Designed for use in automation systems, material handling, clamping, and pressing, it offers flexibility, durability, and efficiency. Constructed from high-quality materials, the DNC63 X 125-S features a double-acting design, adjustable speed control, and multiple mounting options, ensuring reliable, long-lasting performance in various industrial settings.
