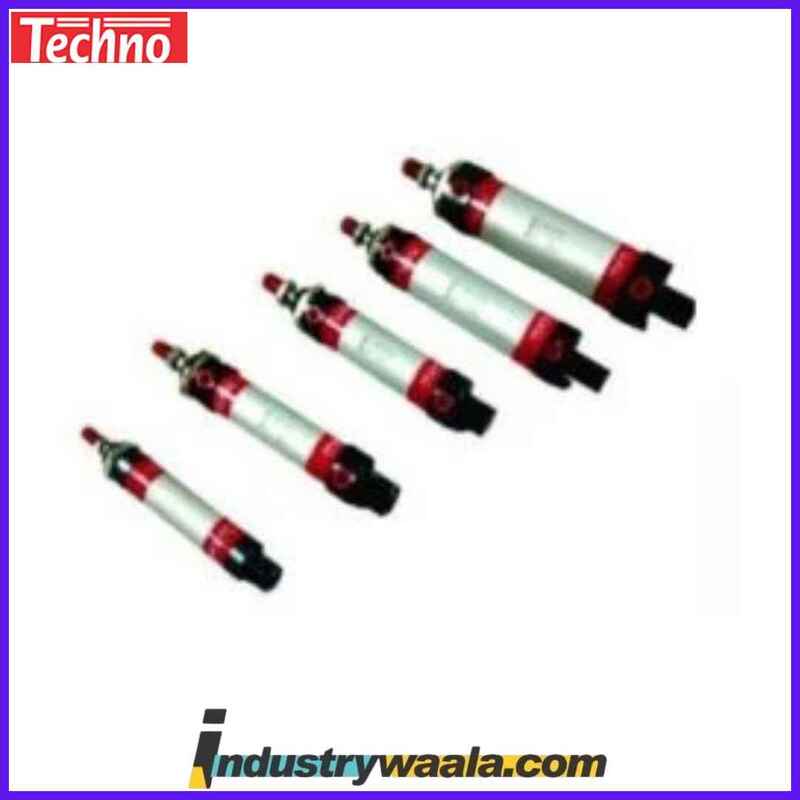

Techno MAL16x40 Pneumatic Cylinder Series

The Techno MAL16x40 Pneumatic Cylinder Series is a compact and reliable actuator designed for applications that require precise linear motion in confined spaces. With a 16 mm bore and 40 mm stroke, this cylinder is ideal for tasks where space is limited, but the need for accurate, smooth, and repeatable motion is crucial. The cylinder is built for a wide range of industrial applications where high precision and low-maintenance operation are required.

Key Features:

1. 16 mm Bore and 40 mm Stroke:
   • The 16 mm bore provides a compact design without sacrificing force output. The 40 mm stroke allows for short-range travel, making the MAL16x40 suitable for applications that need precise movement in tight spaces or for tasks involving light loads.
2. Double-Acting and Single-Acting Configurations:
   • The MAL16x40 is available in double-acting and single-acting versions:
     • Double-acting cylinders use pneumatic pressure to extend and retract, offering greater control over movement in both directions. This configuration is ideal for tasks requiring bi-directional movement.
     • Single-acting cylinders extend with air pressure and return via an internal spring, making them ideal for applications where movement is required in only one direction.
3. Pressure Range:
   • The MAL16x40 operates efficiently within a pressure range of 1 to 10 bar (14.5 to 145 psi), making it suitable for light to medium-duty applications where consistent force and precision are necessary.
4. Magnetic Piston Option:
   • The cylinder can be equipped with an optional magnetic piston, enabling the use of position sensors. This feature enhances the accuracy of the system by providing real-time feedback on the cylinder’s position, which is particularly useful for automated control systems and high-precision applications.
5. Multiple Mounting Options:
   • The MAL16x40 offers multiple mounting configurations, including foot mounts, flange mounts, and clevis mounts. These options provide flexibility in installation, ensuring compatibility with various machinery designs. Whether mounted vertically or horizontally, the cylinder can be easily integrated into different systems.
6. Durable Sealing System:
   • This cylinder is designed with a high-quality sealing system that minimizes air leakage, preventing dust, dirt, and moisture from entering the cylinder. This feature contributes to the durability and efficiency of the cylinder, ensuring a longer service life and reducing maintenance requirements.
7. Temperature Range:
   • The MAL16x40 can function effectively in a temperature range of -20°C to 80°C, which makes it suitable for a variety of environments, from cold industrial settings to hot factory floors.
8. Smooth and Precise Motion:
   • The MAL16x40 ensures smooth and precise linear motion. Its ability to provide accurate and repeatable movement makes it ideal for use in applications requiring exact positioning, such as clamping, positioning, and testing.
9. Applications:
   • The MAL16x40 is ideal for a range of applications requiring short-range, precise movement, such as:
     • Automation: Used in robotic arms, pick-and-place systems, and sorting machines for accurate, controlled movement.
     • Material Handling: Perfect for use in sorting, positioning, and transporting lightweight components in automated systems.
     • Packaging: Frequently used in packaging machinery to position, clamp, or sort products.
     • Robotics: Suitable for robotic applications requiring precision for tasks like gripping, clamping, or aligning components.
     • Testing and Calibration: Used in test stands and calibration systems for precise, repeatable motion control during testing and validation processes.
10. Low-Maintenance Design:
    • The MAL16x40 is engineered for low-maintenance operation. Its durable components, combined with its high-quality sealing system, reduce wear and tear and make it a reliable solution for high-cycle applications.
11. Reliability and Longevity:
    • Built with high-quality materials, the MAL16x40 is designed to offer long-lasting performance. It can endure high-cycle operations, making it an ideal choice for applications with frequent use, ensuring minimal downtime and lower operational costs.

Summary:

The Techno MAL16x40 Pneumatic Cylinder Series features a 16 mm bore and 40 mm stroke, offering a compact and efficient solution for applications requiring precise, short-range linear motion. Available in double-acting and single-acting versions, it operates within a pressure range of 1 to 10 bar and can be equipped with an optional magnetic piston for position sensing. With multiple mounting options, a durable sealing system, and a wide temperature range of -20°C to 80°C, this cylinder is ideal for automation, material handling, robotics, and packaging. It delivers smooth, precise, and low-maintenance performance, making it a reliable and cost-effective solution for various industrial applications.
