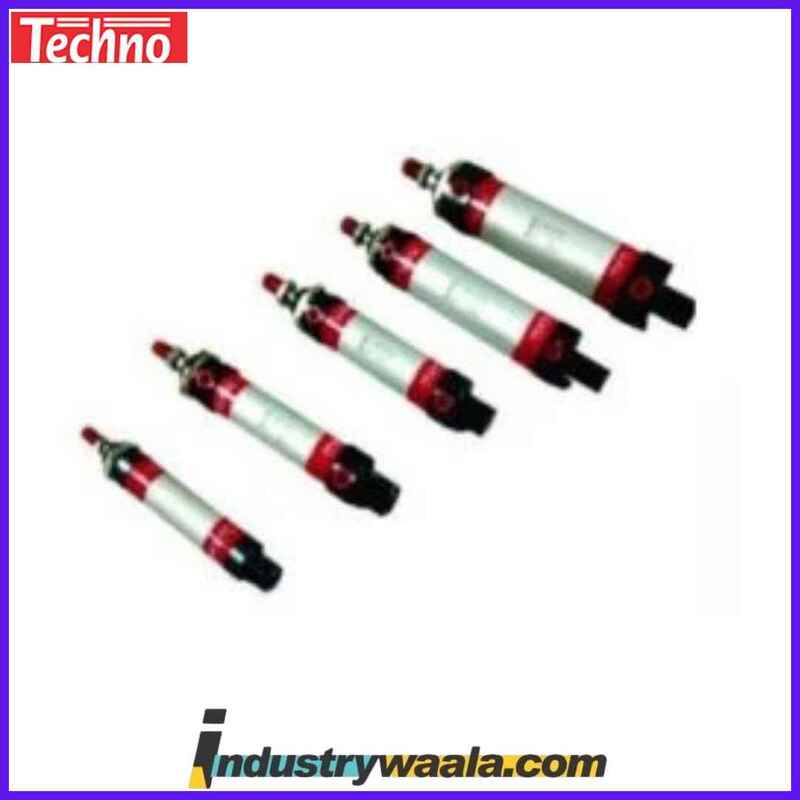

Techno MAL16x50 Pneumatic Cylinder Series

The Techno MAL16x50 Pneumatic Cylinder Series is a compact and efficient linear actuator designed for applications that require precise control and reliable performance in a small form factor. With a 16 mm bore and 50 mm stroke, this cylinder is ideal for systems where space constraints or lightweight requirements are crucial, but high reliability and consistent operation are still necessary.

Key Features:

1. 16 mm Bore and 50 mm Stroke:
   • The 16 mm bore ensures the cylinder is compact, making it ideal for installations where space is limited. Despite its small size, it can deliver sufficient force for light-duty tasks. The 50 mm stroke allows for moderate travel, making it suitable for applications that require short-distance motion with precision.
2. Double-Acting and Single-Acting Configurations:
   • The MAL16x50 is available in both double-acting and single-acting versions:
     • Double-acting cylinders extend and retract using pneumatic pressure, offering better control over movement in both directions, which is beneficial for tasks requiring consistent motion.
     • Single-acting cylinders extend via pneumatic pressure and retract using an internal spring, which is ideal for applications requiring movement in only one direction.
3. Pressure Range:
   • This cylinder operates effectively within a pressure range of 1 to 10 bar (14.5 to 145 psi). This range ensures reliable performance in a variety of light-duty industrial applications.
4. Magnetic Piston Option:
   • The MAL16x50 can be equipped with an optional magnetic piston, allowing for position sensors to be integrated. This feature provides real-time feedback on the cylinder's position, improving system control and enabling automation in processes where precise positioning is crucial.
5. Multiple Mounting Options:
   • The cylinder supports multiple mounting configurations, such as foot mounts, flange mounts, and clevis mounts, making it easy to integrate into various machine designs. This flexibility ensures the cylinder can be installed in both vertical and horizontal orientations.
6. Durable Sealing System:
   • The MAL16x50 incorporates a high-quality sealing system that minimizes air leakage and helps protect the internal components from dust, dirt, and moisture. This contributes to consistent operation and a longer service life, reducing maintenance requirements.
7. Temperature Range:
   • The cylinder operates in a temperature range of -20°C to 80°C, making it suitable for a variety of environments, from cold storage areas to hot factory floors.
8. Smooth and Precise Motion:
   • The MAL16x50 delivers smooth and precise linear motion, ensuring accurate and repeatable movement, which is critical for applications that demand high control, such as clamping, positioning, and testing.
9. Applications:
   • The MAL16x50 is ideal for applications requiring precise, small-scale movement, such as:
     • Automation: Perfect for robotic arms, pick-and-place machines, and sorting systems that require accurate movement in confined spaces.
     • Material Handling: Can be used in sorting, positioning, and transporting small components or materials efficiently.
     • Packaging: Suitable for use in packaging systems for positioning and clamping products.
     • Robotics: Ideal for robotic systems, particularly in applications requiring precise, light-duty movement for tasks like gripping and aligning.
     • Testing and Calibration: Used in systems requiring accurate, repeatable motion for testing or calibration of components.
10. Low-Maintenance Design:
    • The MAL16x50 is designed for low-maintenance operation. Its durable construction and sealing system reduce the likelihood of wear and tear, and periodic maintenance is typically limited to occasional lubrication and inspection.
11. Reliability and Longevity:
    • Built with high-quality materials, the MAL16x50 provides reliable and long-lasting performance. The cylinder is capable of handling high-cycle operations, ensuring minimal downtime and lower maintenance costs in environments with continuous use.

Summary:

The Techno MAL16x50 Pneumatic Cylinder Series features a 16 mm bore and 50 mm stroke, offering a compact solution for applications requiring precise, light-duty linear motion. It is available in double-acting and single-acting versions and operates within a pressure range of 1 to 10 bar. The optional magnetic piston for position sensing, multiple mounting options, and durable sealing system ensure high reliability and easy integration into various systems. With a temperature range of -20°C to 80°C, it is suitable for a wide range of applications in automation, material handling, robotics, and packaging, delivering smooth, precise, and low-maintenance performance.
