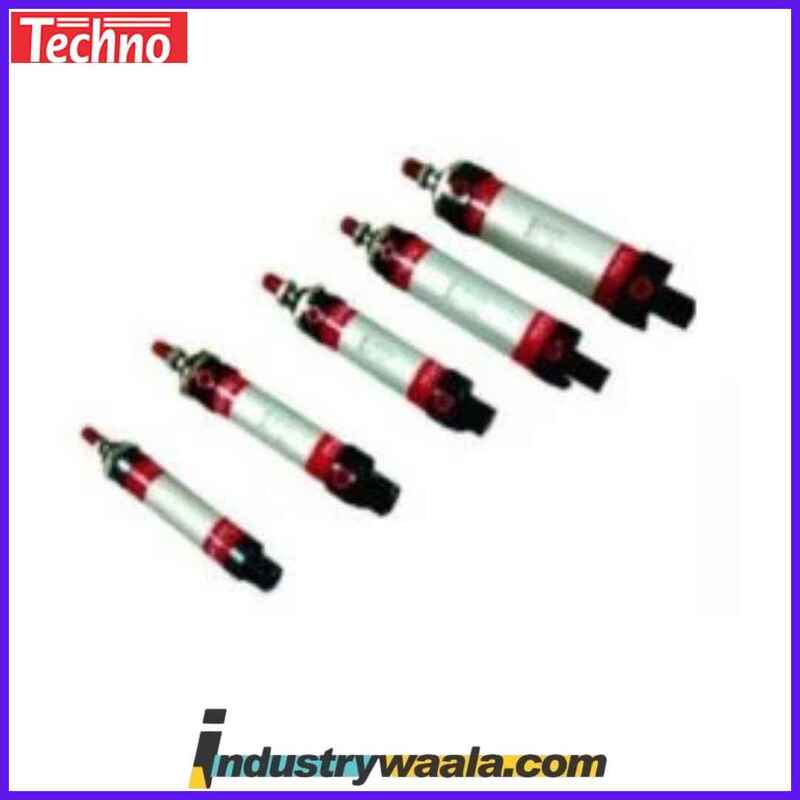

Techno MAL25x100 Pneumatic Cylinder Series

The Techno MAL25x100 Pneumatic Cylinder Series is a high-performance pneumatic actuator designed to provide precise, reliable, and efficient linear motion for medium-duty applications. Featuring a 25 mm bore and 100 mm stroke, this cylinder is compact yet powerful, making it ideal for use in tasks that require accurate motion and consistent performance. Its robust design and versatile mounting options make it suitable for applications in automation systems, material handling, packaging, robotics, and assembly lines. The MAL25x100 is built for high durability, low maintenance, and a long service life, ensuring dependable performance even in demanding environments.

Key Features:

1. 25 mm Bore and 100 mm Stroke:
   • The 25 mm bore provides a compact yet powerful solution, while the 100 mm stroke offers the necessary range for tasks requiring controlled linear motion. This combination makes the cylinder versatile for applications in confined spaces or where only a moderate stroke length is required.
2. Double-Acting and Single-Acting Configurations:
   • The MAL25x100 is available in both double-acting and single-acting versions:
     • Double-acting cylinders allow for movement in both directions, using pneumatic pressure for both extension and retraction, providing smooth and precise control.
     • Single-acting cylinders use pneumatic pressure to extend the piston, with a spring used for retraction. This configuration is ideal for applications where motion is needed in one direction only.
3. Pressure Range:
   • This cylinder operates within a pressure range of 1 to 10 bar (14.5 to 145 psi), making it compatible with most standard pneumatic systems. This pressure range ensures consistent operation across various industrial applications while providing flexibility in integration.
4. Magnetic Piston for Position Sensing:
   • An optional magnetic piston allows for position sensing using proximity sensors, providing real-time feedback on the position of the piston. This feature is particularly useful in automated systems requiring accurate feedback for precise positioning.
5. Multiple Mounting Options:
   • The MAL25x100 offers various mounting options, including foot mounts, flange mounts, and clevis mounts, providing flexibility for installation in different machine layouts. These options support both horizontal and vertical mounting configurations, making it versatile for a variety of setups.
6. Durable Sealing System:
   • Equipped with a high-quality sealing system, the MAL25x100 prevents air leakage and protects the internal components from contaminants such as dust and moisture. This robust sealing system contributes to the cylinder's long-lasting durability and low-maintenance operation.
7. Wide Temperature Range:
   • The MAL25x100 operates effectively within a temperature range of -20°C to 80°C, making it suitable for use in both cold and hot environments without compromising its performance. This wide operating range ensures reliable functionality across various industrial and environmental conditions.
8. Smooth and Consistent Operation:
   • The cylinder is engineered to deliver smooth, consistent, and repeatable motion, ensuring high precision and reliability for every cycle. This consistency makes it ideal for applications where continuous, accurate motion is required.
9. Applications:
   • The MAL25x100 is ideal for a wide range of industrial applications, including:
     • Automation: Perfect for robotic arms, pick-and-place systems, and conveyor belts where precise, controlled movements are needed.
     • Material Handling: Suitable for sorting, lifting, positioning, and transporting components in warehouses, manufacturing, and packaging environments.
     • Packaging: Frequently used in packaging machines for tasks such as clamping, aligning, and sorting products before they are packaged.
     • Assembly Lines: Ideal for clamping, pressing, testing, and positioning parts in assembly line processes.
     • Industrial Machinery: Used in machines for pressing, testing, positioning, and other similar applications.
10. Maintenance and Longevity:
    • Designed with low maintenance in mind, the MAL25x100 is built for durability, even in continuous use environments. Regular inspections, such as checking seals and applying lubricants as necessary, will ensure optimal performance and extend the cylinder's life.
11. Consistent Performance:
    • The MAL25x100 delivers consistent performance with every operation, making it ideal for applications that require high levels of precision. Its design ensures that the cylinder performs accurately over an extended period, with minimal deviation in motion.

Summary:

The Techno MAL25x100 Pneumatic Cylinder Series combines a 25 mm bore with a 100 mm stroke, providing a compact yet efficient solution for medium-duty applications. Available in double-acting and single-acting configurations, it operates within a pressure range of 1 to 10 bar and features an optional magnetic piston for position sensing. With multiple mounting options, a durable sealing system, and a temperature range of -20°C to 80°C, this cylinder is suitable for automation, material handling, packaging, and assembly line applications. It ensures low maintenance and long-lasting performance, offering smooth and consistent motion for a wide range of industrial applications.
