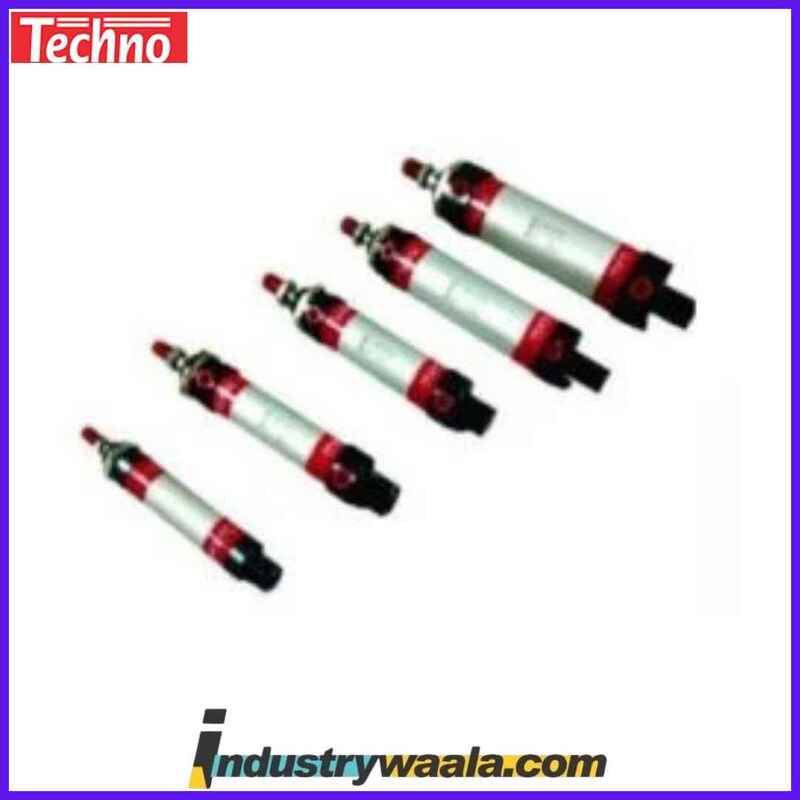

Techno MAL25x500 Pneumatic Cylinder Series

The Techno MAL25x500 Pneumatic Cylinder Series is a high-performance linear actuator designed for applications requiring reliable and precise motion over long distances. With a 25 mm bore and 500 mm stroke, this cylinder is optimized for tasks that demand extended travel lengths without compromising performance or reliability. It is an excellent choice for applications in automation, material handling, assembly lines, packaging, and other industries that require smooth, controlled linear motion.

Key Features:

1. Extended Stroke for Greater Reach:
   • The 500 mm stroke offers a longer travel distance, making this cylinder suitable for applications that require significant linear motion. This is ideal for systems where a longer range of movement is necessary, such as material handling, positioning, and clamping tasks in various machinery setups.
2. Compact Bore Size:
   • Despite its extended stroke, the 25 mm bore ensures that the MAL25x500 remains compact and efficient. This smaller bore size allows the cylinder to fit into tighter spaces while still providing the force and precision needed for medium-duty tasks. It balances space-saving design with the necessary force output, making it ideal for systems with spatial constraints.
3. Double-Acting and Single-Acting Configurations:
   • The MAL25x500 is available in double-acting and single-acting versions:
     • Double-acting cylinders provide motion in both directions by applying pressure to both sides of the piston, offering precise, controlled movement in both directions. This configuration is ideal for applications that require consistent force and movement in both forward and return strokes.
     • Single-acting cylinders operate with pressure on one side of the piston, using a spring return mechanism for the opposite direction. This configuration is suitable for applications where movement is needed in one direction only, such as pushing, lifting, or opening tasks.
   • These configuration options allow for flexibility in design and function to meet the specific needs of different systems and applications.
4. Wide Operating Pressure Range:
   • The MAL25x500 operates efficiently within a pressure range of 1 to 10 bar (14.5 to 145 psi), making it compatible with a wide variety of pneumatic systems. This pressure range ensures reliable performance in typical industrial environments, where consistent operation is required for extended periods.
5. Optional Magnetic Piston for Position Sensing:
   • The MAL25x500 can be equipped with an optional magnetic piston that allows for position sensing through the use of proximity sensors. This is particularly useful in automated systems where precise feedback is necessary to track the position of the piston in real-time, facilitating closed-loop control.
   • The magnetic piston option ensures high accuracy and allows the cylinder to be integrated into complex automated processes requiring continuous feedback on piston positioning.
6. Multiple Mounting Options:
   • The MAL25x500 offers a variety of mounting options to suit different installation needs. These include foot mounts, flange mounts, and clevis mounts, providing flexibility for installation in various orientations (horizontal, vertical, or other angles).
   • The wide selection of mounting configurations ensures that the cylinder can be easily integrated into a broad range of equipment and machinery, simplifying installation and making it adaptable to diverse industrial environments.
7. Durable Sealing System:
   • The MAL25x500 is equipped with a high-quality sealing system that protects the internal components from contaminants like dust, dirt, and moisture. This ensures smooth, leak-free operation even in harsh conditions, increasing the reliability and durability of the cylinder over its lifetime.
   • The effective sealing system reduces the likelihood of wear and tear on critical components, minimizing maintenance requirements and extending the operational life of the cylinder.
8. Wide Temperature Range:
   • The MAL25x500 can operate in a temperature range of -20°C to 80°C, making it suitable for a variety of environments, including low-temperature and high-temperature applications. Whether used in outdoor settings, in refrigerated environments, or in areas subject to high heat, this cylinder maintains consistent performance across a broad temperature spectrum.
9. Applications:
   • The Techno MAL25x500 Pneumatic Cylinder is ideal for applications that require a combination of extended travel distance, medium force, and high precision. Its features make it suitable for:
     • Automation: Used in robotic arms, conveyor systems, and pick-and-place operations where long strokes are necessary for moving components or products.
     • Material Handling: Perfect for lifting, positioning, and moving goods across production lines or warehouse systems, ensuring smooth and controlled operations even over longer distances.
     • Packaging: Used in packaging machinery for tasks such as sorting, filling, and sealing products, where a long travel distance and accurate motion are needed to complete the cycle.
     • Assembly Lines: Ideal for clamping and positioning parts in assembly processes, where a long stroke is needed to fit specific assembly tasks.
     • Industrial Machinery: Suitable for applications that require consistent, high-performance linear motion for tasks like pressing, testing, or handling components.
10. Maintenance and Longevity:
    • The MAL25x500 is designed for low-maintenance operation, with its durable sealing system and high-quality components. Regular checks to ensure proper lubrication and seal condition are recommended for optimal performance.
    • Its robust construction and effective sealing help reduce the frequency of repairs and extend the overall lifespan of the cylinder, making it an investment in long-term reliability.
11. Precision and Consistent Performance:
    • The MAL25x500 delivers smooth, precise, and repeatable motion, ensuring high accuracy even over long travel distances. Its consistent performance in both double-acting and single-acting configurations makes it suitable for precision tasks in automated and industrial applications.
    • Whether used in high-speed or heavy-duty systems, the MAL25x500 provides dependable and accurate movement over extended cycles.

Summary:

The Techno MAL25x500 Pneumatic Cylinder Series features a 25 mm bore and 500 mm stroke, making it ideal for tasks requiring long-distance linear motion in automation, material handling, packaging, and assembly applications. It is available in double-acting and single-acting configurations and offers a pressure range of 1 to 10 bar. The cylinder can be equipped with an optional magnetic piston for position sensing and comes with multiple mounting options for easy integration. With a temperature range of -20°C to 80°C and a durable sealing system, the MAL25x500 is designed for long-lasting, high-performance operation across a wide range of environments and applications.
