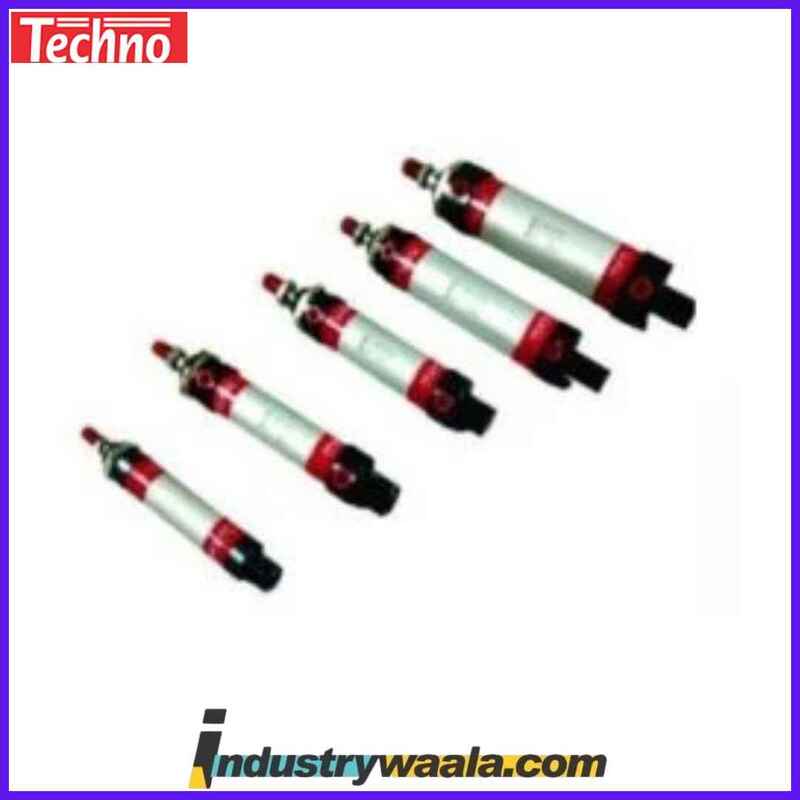

Techno MAL25x80 Pneumatic Cylinder Series

The Techno MAL25x80 Pneumatic Cylinder Series is a compact yet powerful pneumatic actuator designed for precise and reliable linear motion in industrial applications. With a 25 mm bore diameter and 80 mm stroke length, this cylinder series is perfect for tasks requiring moderate force and accurate movement in confined spaces. The MAL25x80 offers versatility and robust performance for applications such as automation, material handling, packaging, and assembly lines where compact size and precision are essential.

Key Features:

1. Compact and Durable Design:
   • The MAL25x80 is designed with a 25 mm bore diameter and 80 mm stroke, providing a balance between compactness and performance. Constructed from anodized aluminum, the cylinder is lightweight, resistant to corrosion, and durable enough to handle demanding industrial environments.
   • Its compact size allows easy integration into applications where space is limited, yet it still offers sufficient force for light to medium-duty tasks.
2. Bore Size and Stroke Length:
   • The 25 mm bore determines the force the cylinder can exert, making it ideal for moderate force applications. The 80 mm stroke offers short but accurate travel, ideal for positioning, lifting, or pushing smaller components in precise movements.
   • This cylinder provides controlled actuation over a medium stroke length, making it suitable for a wide range of tasks, including push/pull actions, clamping, and lifting.
3. Double-Acting and Single-Acting Configurations:
   • The MAL25x80 is available in double-acting and single-acting versions:
     • Double-acting cylinders use air pressure on both sides of the piston, allowing for controlled extension and retraction. This configuration is ideal for applications that require bidirectional movement.
     • Single-acting cylinders only use air pressure on one side of the piston, with a spring on the other side to return the piston when air pressure is released. This version is suitable for applications that require movement in one direction.
   • The availability of these configurations ensures the cylinder can be tailored to the specific demands of the application, whether the motion needs to be bi-directional or unidirectional.
4. Operating Pressure Range:
   • The MAL25x80 cylinder operates within a pressure range of 1 to 10 bar (14.5 to 145 psi), which is compatible with most standard pneumatic systems. This wide pressure range ensures the cylinder can perform reliably in a variety of industrial settings.
   • The cylinder is optimized for stable performance across this pressure range, offering consistent force and movement across a broad range of operating conditions.
5. Magnetic Piston Option:
   • The MAL25x80 is available with an optional magnetic piston, which incorporates a magnet that allows the use of proximity sensors to detect the position of the piston. This feature enables real-time monitoring of the piston’s location, which is crucial for automated systems requiring precise feedback on actuator position.
   • The magnetic piston option adds versatility, enabling applications such as position sensing, automated feedback, and control systems that rely on exact movement tracking.
6. Mounting Options:
   • The MAL25x80 cylinder comes with various mounting options, including foot mounts, flange mounts, and clevis mounts. These mounting options ensure the cylinder can be easily integrated into a wide range of machinery and equipment, providing flexibility in installation.
   • Whether the cylinder is installed horizontally, vertically, or at an angle, these versatile mounting styles allow for secure attachment and optimal positioning within the system.
7. Sealing System:
   • The MAL25x80 is equipped with a high-performance sealing system designed to prevent air leaks and minimize wear on the internal components. The seals are constructed from durable materials, ensuring reliable operation even in challenging environments.
   • The effective sealing system ensures that the cylinder remains airtight, preventing air loss and maintaining efficiency over time. This system also helps reduce the need for frequent maintenance and extends the service life of the cylinder.
8. Temperature Range:
   • The MAL25x80 operates within a temperature range of -20°C to 80°C, making it suitable for use in a variety of environments, including both indoor and outdoor applications.
   • This broad temperature tolerance allows the cylinder to perform consistently, even in extreme conditions or environments with fluctuating temperatures.
9. Applications:
   • The Techno MAL25x80 Pneumatic Cylinder is ideal for a wide range of industrial applications, including:
     • Automation: For robotic systems, conveyors, and other automation processes where precise movement and compact size are required.
     • Material Handling: For lifting, pushing, or positioning components on production lines or in warehouses.
     • Packaging: In machines for tasks such as filling, sealing, or labeling where short, controlled linear movements are necessary.
     • Assembly Lines: For moving components into position or assisting with tasks that require accurate and repeatable movement.
     • Clamping: For clamping or securing parts in place during various manufacturing processes.
     • Textile Manufacturing: For light pressing or precise actuation in textile machinery that requires controlled movement.
10. Maintenance and Longevity:
    • The MAL25x80 is designed to require minimal maintenance, thanks to its durable construction and effective sealing system. However, routine checks for air leaks, contamination, and proper lubrication can help maximize the lifespan of the cylinder.
    • The robust construction ensures reliable operation even in continuous or high-duty cycles, making it a cost-effective solution for applications where minimal downtime is critical.
11. Precision and Reliability:
    • The MAL25x80 cylinder is designed to offer high precision and repeatability. Its smooth and accurate motion makes it ideal for applications requiring tight tolerance and reliability.
    • The durable materials and robust sealing system ensure that the cylinder performs consistently over time, even under continuous use, reducing the need for maintenance and ensuring operational efficiency.

Summary:

The Techno MAL25x80 Pneumatic Cylinder Series is a compact, high-performance pneumatic actuator designed for applications requiring moderate force, precise linear motion, and compact size. With a 25 mm bore and 80 mm stroke, it is perfect for automation, material handling, packaging, and assembly line applications. The cylinder is available in double-acting and single-acting configurations, with an optional magnetic piston for position sensing. With flexible mounting options, a reliable sealing system, and a wide temperature range, the MAL25x80 offers long-lasting performance with minimal maintenance. Its compact design, precision, and reliability make it an ideal choice for demanding industrial tasks.
