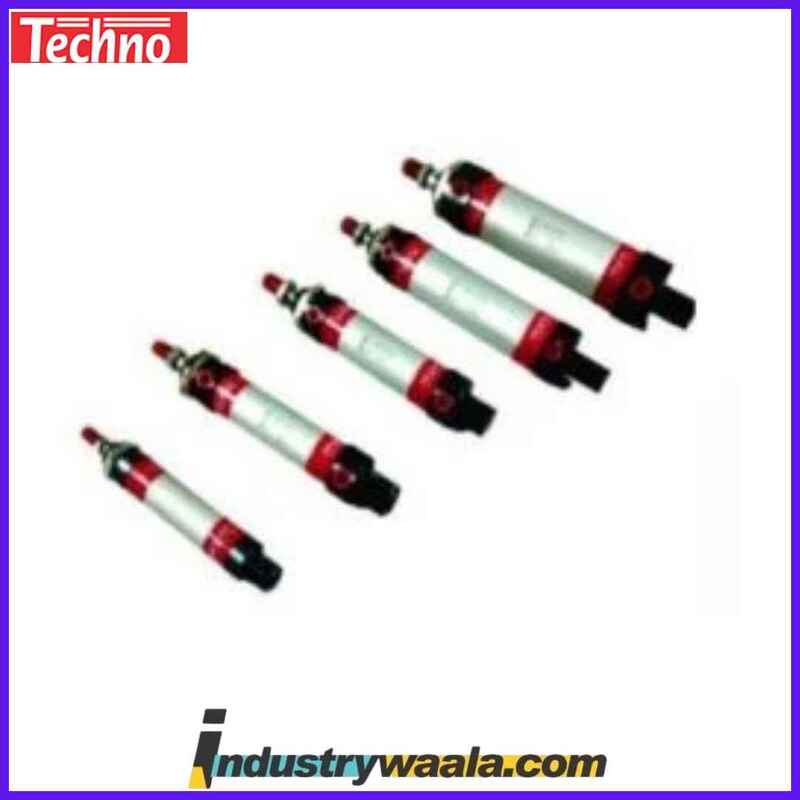

Techno MAL32x25 Pneumatic Cylinder Series

The Techno MAL32x25 Pneumatic Cylinder Series is a precision-engineered pneumatic actuator designed for applications requiring compact, efficient, and reliable linear motion. With a 32 mm bore diameter and a 25 mm stroke length, the MAL32x25 series is well-suited for applications with limited space, yet still requiring moderate force and accurate motion control. Below is a detailed description of the key features and specifications of the Techno MAL32x25 Pneumatic Cylinder Series:

Key Features:

1. Compact Design:
   • The MAL32x25 cylinder is designed to be extremely compact, making it ideal for installations where space is at a premium, but the need for accurate and reliable motion control still exists.
   • The cylinder body is typically made from anodized aluminum, providing a robust and corrosion-resistant structure, ideal for both standard and harsh operating environments.
2. Bore Size and Stroke Length:
   • The 32 mm bore refers to the cylinder's inner diameter, which determines the force the cylinder can exert. The 25 mm stroke length refers to how far the piston travels during operation, making the MAL32x25 ideal for applications that require relatively short movements with precision.
   • Despite its small stroke, the cylinder offers high performance, enabling it to be used in a wide variety of industrial tasks that require minimal movement but high reliability.
3. Double-Acting and Single-Acting Versions:
   • The MAL32x25 series is available in both double-acting and single-acting variants:
     • Double-acting cylinders use compressed air on both sides of the piston to control motion in both directions, providing greater control and versatility.
     • Single-acting cylinders use compressed air on only one side of the piston, with a spring on the opposite side to return the piston to its starting position when air pressure is released.
   • This versatility allows the MAL32x25 to be used in a range of applications, depending on the specific requirements for movement control.
4. Operating Pressure Range:
   • The MAL32x25 pneumatic cylinder operates within a pressure range of 1 to 10 bar (14.5 to 145 psi), making it compatible with most standard pneumatic systems.
   • This pressure range allows the cylinder to be utilized in a variety of applications where both light and moderate forces are needed.
5. Magnetic Piston Option:
   • For applications that require position sensing, the MAL32x25 is available with a magnetic piston option. This feature enables the use of proximity sensors to detect the position of the piston, allowing for precise control and feedback in automated systems.
   • The magnetic piston is especially useful in applications requiring accurate position detection for monitoring or controlling cylinder movements.
6. Mounting Options:
   • The MAL32x25 cylinder comes with a variety of mounting styles, including foot mounts, flange mounts, and clevis mounts, making it easy to integrate into a wide range of equipment and machinery configurations.
   • These versatile mounting options allow the cylinder to be installed in different orientations and positions, depending on the design of the system it is part of.
7. Sealing System:
   • The cylinder features a high-quality sealing system made from durable materials designed to prevent air leaks, contamination, and excessive wear.
   • This sealing system enhances the cylinder's longevity, ensuring consistent and reliable performance even after extended use in demanding environments.
8. Temperature Range:
   • The MAL32x25 cylinder can operate in a temperature range of -20°C to 80°C, making it suitable for both standard indoor applications as well as environments with temperature fluctuations or extremes.
   • This broad temperature tolerance ensures that the cylinder maintains reliable performance in various industrial settings, including outdoor or high-temperature environments.
9. Applications:
   • The Techno MAL32x25 Pneumatic Cylinder is versatile and can be used across a wide range of applications, including:
     • Automation: For controlling linear movements in robotic arms, conveyors, or other automated machinery.
     • Packaging: In machines that require short, precise motions, such as labeling, filling, or sealing machines.
     • Assembly Lines: For positioning components or for use in precision assembly tasks that require minimal movement.
     • Material Handling: For lifting, pushing, or pulling small components or materials in production environments, especially when space is constrained.
     • Laboratory Equipment: Where precise motion control is required in a small, space-efficient design.
10. Maintenance and Longevity:
    • The MAL32x25 pneumatic cylinder is designed to require minimal maintenance. The durable construction, high-quality seals, and corrosion-resistant materials reduce the frequency of required upkeep.
    • Regular checks for air leaks and occasional lubrication of moving parts can further enhance the cylinder's lifespan and operational efficiency.
11. Precision and Reliability:
    • The cylinder is designed for precise control of short movements. Whether used in automation, packaging, or material handling, the MAL32x25 provides consistent and accurate performance.
    • The reliable design ensures that tasks requiring small but precise motions are carried out with high repeatability and precision.

Summary:

The Techno MAL32x25 Pneumatic Cylinder Series is a high-performance, compact actuator ideal for applications requiring short strokes and moderate force. With a 32 mm bore, 25 mm stroke, and options for both double-acting and single-acting configurations, this cylinder offers flexibility, precision, and reliability. Its robust construction, wide operating temperature range, and magnetic piston option for position sensing make it suitable for a variety of industrial applications, such as automation, material handling, packaging, and assembly lines. The cylinder’s efficient design, low maintenance requirements, and adaptability to different mounting options ensure it meets the needs of diverse environments and systems.
