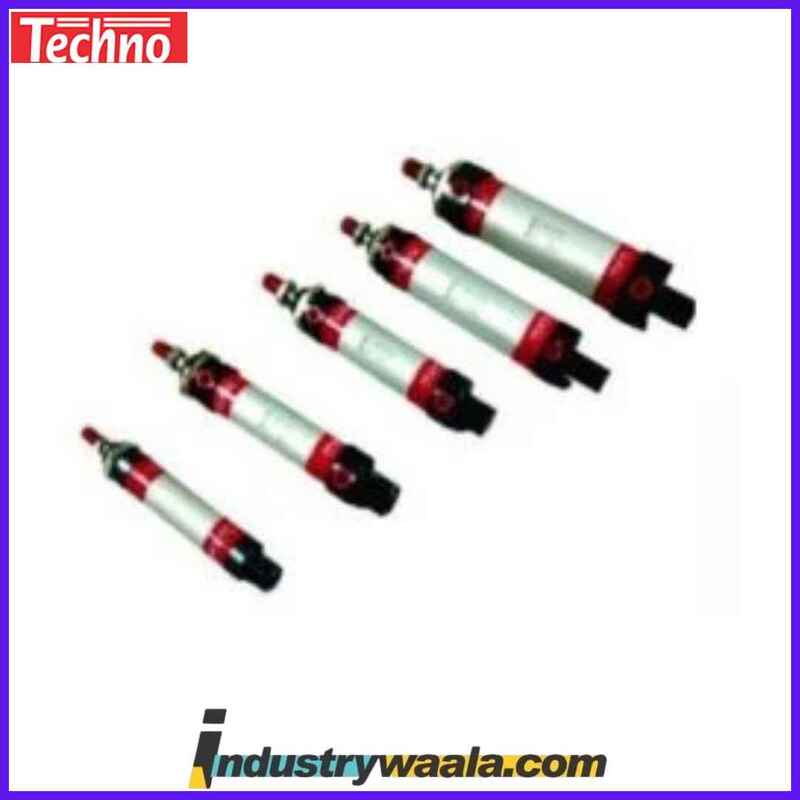

Techno MAL32x50 Pneumatic Cylinder Series

The Techno MAL32x50 Pneumatic Cylinder Series is a compact and versatile pneumatic cylinder designed for medium-duty applications requiring moderate force and short travel. With a 32 mm bore and a 50 mm stroke, this cylinder is ideal for applications in automation, clamping, positioning, and material handling, where precise movement is required within a small operating range.

Key Features:

1. 32 mm Bore Size:

• The 32 mm bore size strikes an ideal balance between size and force, providing sufficient power for medium-duty applications. It's particularly suitable for systems that require moderate force but do not need excessively large or heavy cylinders.
• The 32 mm bore ensures compactness while still offering reliable force for various tasks.

2. 50 mm Stroke Length:

• The 50 mm stroke makes the MAL32x50 perfect for applications where short travel distances are needed. This short stroke offers quick and precise movement, making it ideal for tasks like small adjustments, positioning, or compact automation systems.
• Its small stroke length makes it suitable for applications where space is limited but precise and reliable motion is still required.

3. Single-Acting and Double-Acting Versions:

• The cylinder is available in both single-acting and double-acting versions to meet different application requirements.
• The single-acting version is used where movement in one direction is required, typically with a spring return for simple pushing or ejecting tasks.
• The double-acting version allows bidirectional motion, providing versatility for tasks that require movement in both directions, such as clamping or assembly operations.

4. End-of-Stroke Cushioning:

• End-of-stroke cushioning at both ends of the cylinder prevents mechanical shock and impact, resulting in quieter operation and reduced wear at the limits of the piston’s travel.
• This feature helps extend the cylinder’s life, reducing maintenance needs and increasing overall system reliability.

5. Durable Construction:

• The MAL32x50 is built with anodized aluminum for the body and a stainless steel piston rod, making it highly resistant to corrosion and wear.
• This construction ensures the cylinder’s longevity, even in environments where exposure to moisture or corrosive substances is common.
• The materials used also allow the cylinder to function in harsh environments while maintaining smooth, reliable operation.

6. Wide Pressure Range:

• The MAL32x50 operates within a pressure range of 1 to 8 bar (14.5 to 116 psi), providing the flexibility to work with a variety of pneumatic systems.
• The cylinder remains efficient within this range, ensuring consistent performance in different industrial applications.

7. Energy-Efficient Design:

• The cylinder is designed to minimize air consumption through low-friction seals and optimized internal components. This makes the MAL32x50 an energy-efficient solution for medium-duty applications, reducing overall operational costs.
• The energy-efficient design is especially beneficial for systems with high cycling demands, helping to maintain performance while lowering energy costs.

8. Flexible Mounting Options:

• The MAL32x50 offers several mounting options, including front, rear, and flange mounts, making it adaptable to various systems.
• These flexible mounting options ensure the cylinder can be easily integrated into a wide range of machinery and automation systems, even in tight or complex spaces.

9. Precise and Smooth Operation:

• The cylinder offers smooth and consistent motion, even under moderate loads, ensuring high precision in applications such as material handling, assembly, and packaging.
• The low-friction components provide reliable movement, reducing wear and extending the operational life of both the cylinder and the machinery it’s integrated into.

Applications:

The Techno MAL32x50 Pneumatic Cylinder is ideal for medium-duty applications that require short strokes and moderate force. Some typical applications include:

• Automation: Ideal for compact automation systems where short travel distances and quick, precise motion are required.
• Clamping: Used in applications where components need to be held in place for assembly or testing.
• Material Handling: Suitable for tasks such as lifting, pushing, or positioning light materials within confined spaces.
• Packaging: Often used in packaging lines where quick adjustments and compact movements are needed for product sorting or positioning.
• Assembly Line Operations: Perfect for precise positioning or moving small components in automated assembly lines.
• Test and Inspection Systems: Used in testing stations where components need to be moved or adjusted over short distances.

Benefits:

• Compact Design: The 32 mm bore and 50 mm stroke offer a space-efficient solution for applications with limited space.
• Moderate Force Output: Provides sufficient force for medium-duty applications without the need for excessively large cylinders.
• Energy Efficiency: Optimized for low air consumption, helping to lower operational costs in high-cycle environments.
• Long-lasting Durability: Constructed from corrosion-resistant materials for extended cylinder life and reduced maintenance.
• Versatile Mounting: Flexible mounting options provide compatibility with a variety of installation configurations.

Conclusion:

The Techno MAL32x50 Pneumatic Cylinder Series is a reliable, compact, and efficient solution for medium-duty tasks that require short strokes and precise motion. With its 32 mm bore and 50 mm stroke, this cylinder is perfect for applications in automation, clamping, material handling, and assembly. The energy-efficient design, durable construction, and precise operation make it an excellent choice for systems where space is limited but performance cannot be compromised. Whether used in industrial automation or light-duty applications, the MAL32x50 ensures smooth, consistent, and long-lasting operation.
