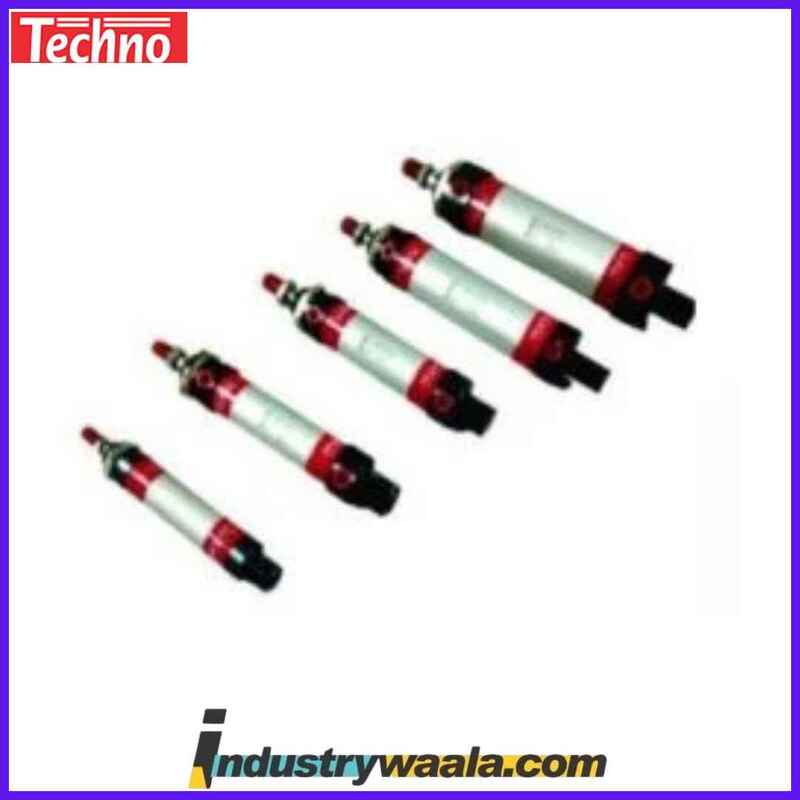

Techno MAL40x50 Pneumatic Cylinder Series

The Techno MAL40x50 Pneumatic Cylinder Series is a robust and high-performance actuator designed for medium- to heavy-duty applications requiring reliable and powerful linear motion. With a 40 mm bore and a 50 mm stroke, this pneumatic cylinder combines strength, precision, and durability, making it ideal for use in automation, material handling, robotics, and other industrial applications where high force and controlled movement are necessary.

Key Features of the Techno MAL40x50 Pneumatic Cylinder Series:

1. Bore Size: 40 mm

• The 40 mm bore provides increased force output, making it suitable for tasks that require more substantial power for movement. This bore size delivers significant force while maintaining compactness compared to larger cylinders.
• The larger bore size ensures that the cylinder can handle heavier loads or higher forces, making it perfect for industrial applications that need robust actuation.

2. Stroke Length: 50 mm

• The 50 mm stroke offers a moderate travel length for many applications that require precise linear movement. It is ideal for tasks such as pushing, clamping, lifting, or positioning where the required travel is relatively short but still requires sufficient force.
• The moderate stroke length is perfect for use in confined spaces or applications that require rapid and repetitive movement, as it provides quick response and short cycle times.

3. Single-Acting or Double-Acting Configurations:

• The MA40x50 is available in single-acting and double-acting versions:
  • Single-Acting Cylinder: In this configuration, air pressure is applied to one side of the piston, with a spring or gravity returning the piston to its initial position. This is ideal for applications requiring motion in one direction only, such as pushing or clamping.
  • Double-Acting Cylinder: Air is applied to both sides of the piston, enabling movement in both directions. Double-acting cylinders are ideal for more complex applications where bidirectional motion is required, such as material handling, positioning, or robotic systems.
• This flexibility in configuration allows the MAL40x50 to be customized for various tasks, from simple one-direction movements to more sophisticated bi-directional operations.

4. End-of-Stroke Cushioning:

• The end-of-stroke cushioning feature ensures that the cylinder’s piston decelerates smoothly as it approaches the end of the stroke, reducing impact and wear on internal components. This cushioning mechanism helps prevent noise and vibration during operation.
• This feature extends the overall lifespan of the cylinder by reducing mechanical stress and minimizing wear and tear, especially in high-cycle environments. It also contributes to quieter operation, ensuring that the cylinder runs efficiently and smoothly.

5. Durable Construction:

• The MA40x50 is constructed from anodized aluminum, which is both lightweight and resistant to corrosion. This ensures long-term durability and reliability, even in harsh environments.
• The stainless steel piston rod ensures high resistance to wear and corrosion, providing smooth operation even in demanding applications with high cycle rates or exposure to moisture.
• The combination of anodized aluminum and stainless steel construction ensures the MA40x50 can withstand the stresses of industrial environments and heavy-duty tasks.

6. Operating Pressure:

• The MA40x50 operates efficiently within a pressure range of 1 to 8 bar (14.5 to 116 psi). This standard pressure range allows the cylinder to be integrated seamlessly into most pneumatic systems without requiring special equipment.
• The wide operating pressure range allows the cylinder to perform consistently in varying conditions, making it highly versatile and suitable for a broad spectrum of applications.

7. Flexible Mounting Options:

• The MA40x50 offers a variety of mounting options for easy integration into different systems:
  • Front and Rear Mounts: Standard configurations for secure attachment to machinery or structural elements.
  • Flange Mounts: For more stable, high-support mounting, ideal for systems that require added stability or resistance to higher forces.
  • Through-Hole Mounting: Allows for customized integration, providing additional flexibility in system design.
• These mounting options ensure that the cylinder can be easily adapted for use in a wide range of equipment and applications, offering flexibility and ease of installation.

8. Energy Efficiency:

• The MA40x50 is designed to operate efficiently, reducing air consumption while still delivering powerful performance. This helps to lower operational costs and increase the overall efficiency of the system in which it is installed.
• The cylinder's design optimizes airflow and reduces wastage, making it suitable for applications where energy efficiency is a priority.

9. Precision and Smooth Operation:

• The MA40x50 is designed to provide smooth and precise linear motion with minimal friction. This ensures that each cycle is completed accurately and consistently, making the cylinder ideal for tasks requiring precise positioning, clamping, or lifting.
• The low-friction design also reduces wear on internal components, contributing to the cylinder's longevity and minimizing maintenance requirements.

Applications:

The Techno MAL40x50 Pneumatic Cylinder Series is ideal for medium- to heavy-duty applications that require reliable and precise linear motion. Some common uses include:

• Material Handling: Suitable for tasks such as moving, lifting, or positioning materials on conveyors, sorters, or assembly lines.
• Automation Systems: Perfect for use in pick-and-place applications, robotic arms, or other automated systems that require controlled, powerful linear motion.
• Clamping and Positioning: Ideal for applications where components need to be held securely in place during assembly, processing, or machining.
• Packaging Systems: Used in packaging systems for material handling, sorting, or inserting components in automated packaging lines.
• Robotics: Used in robotic applications for precise movements in assembly, testing, or handling operations.

Benefits:

• Energy-Efficient: Designed to reduce air consumption, contributing to lower operational costs while maintaining high performance.
• Durable and Long-Lasting: Constructed from high-quality anodized aluminum and stainless steel to ensure durability and longevity in high-cycle, heavy-duty applications.
• Flexible and Versatile: Available in single-acting and double-acting versions with multiple mounting options to suit a wide range of applications.
• Smooth and Reliable Performance: Provides precise, repeatable motion with minimal friction, ensuring high accuracy in positioning and clamping tasks.
• Low Maintenance: End-of-stroke cushioning reduces impact and wear, helping extend the lifespan of the cylinder and minimizing maintenance needs.

Conclusion:

The Techno MAL40x50 Pneumatic Cylinder Series is an ideal solution for medium- to heavy-duty industrial applications requiring controlled and reliable linear motion. With its 40 mm bore, 50 mm stroke, and durable construction, it delivers high performance in a wide range of tasks such as material handling, automation, robotics, and clamping. Its flexible mounting options, end-of-stroke cushioning, and energy-efficient design make it a versatile and cost-effective choice for many industries. The MA40x50 provides the power, precision, and reliability needed to meet the demands of modern industrial systems.
