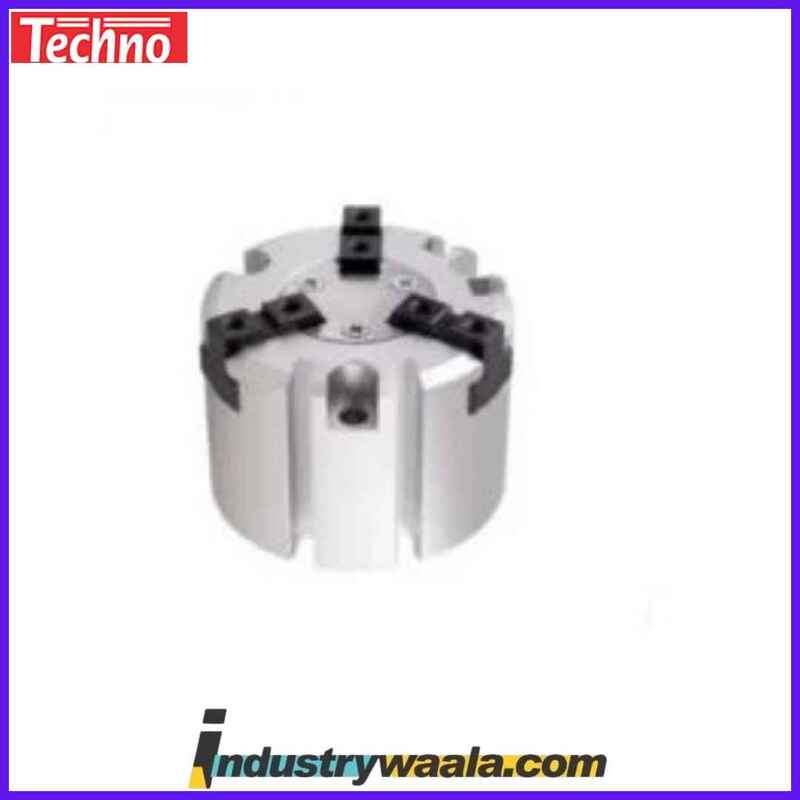

Techno MHS4-50D Pneumatic Cylinder

The Techno MHS4-50D Pneumatic Cylinder is a robust and high-performance double-acting actuator engineered for a wide range of industrial applications, including automation, robotics, and material handling. With a 50 mm bore size, it delivers powerful linear motion and force, ensuring reliability and efficiency in demanding environments. This cylinder is particularly suitable for tasks requiring both precision and high power.

Key Features:

1. Bore Size (50 mm):
   • The 50 mm bore size provides enhanced force output, making the MHS4-50D ideal for medium-to-heavy-duty applications. This size allows for a perfect balance between power and compactness, ensuring powerful performance in confined spaces.
2. Double-Acting Design:
   • The double-acting configuration ensures smooth and efficient motion in both the extend and retract strokes. It provides reliable force in both directions, improving the overall efficiency and speed of the process.
3. Durable Construction:
   • The cylinder is constructed using high-quality anodized aluminum and hardened steel, providing corrosion resistance and increased durability. This ensures longevity and reliable performance in harsh environments, reducing the need for frequent maintenance.
4. Adjustable Stroke Length:
   • The MHS4-50D offers an adjustable stroke length, which allows for customization depending on the specific application requirements. This feature enhances versatility and precision, making the cylinder adaptable to various operational needs.
5. High Operating Pressure:
   • This pneumatic cylinder operates effectively within a pressure range of 1 to 8 bar, providing consistent performance even under higher pressure conditions. It ensures stability and reliability, even in more demanding tasks.
6. Smooth and Precise Motion:
   • The MHS4-50D offers smooth motion control, especially when used with speed control valves. This allows for fine-tuned extension and retraction speeds, ensuring controlled motion and reducing wear on both the cylinder and connected systems.
7. Energy Efficiency:
   • The cylinder is designed for energy-efficient performance, with low-friction seals that minimize internal air leakage. This feature not only reduces energy consumption but also ensures optimal operation with minimal air loss, making it an economical choice for systems.
8. Wide Temperature Range:
   • The MHS4-50D operates effectively in a wide temperature range, typically from -20°C to 80°C. This makes it suitable for diverse environments, ensuring reliable operation in both cold and hot industrial conditions.
9. Multiple Mounting Options:
   • The cylinder offers various mounting configurations, such as foot mounts, flange mounts, and trunnion mounts. These options provide flexibility, enabling easy integration into different machine designs and installations.
10. Compact and Efficient:
    • Despite its power, the MHS4-50D has a compact design, making it ideal for systems with limited space. It ensures high force output while maintaining a size that allows for easy installation in constrained environments.

Applications:

• Automation Systems: Used in automated assembly lines, where precise linear motion and reliable force are required for tasks like sorting, positioning, conveying, and picking.
• Material Handling: The MHS4-50D is well-suited for material handling systems that need reliable force for lifting, pushing, or pulling loads across production lines.
• Packaging: Ideal for packaging applications, where it can be used for pick-and-place operations, sorting, or packaging machines requiring fast and precise movements.
• Robotics: Frequently used in robotic arms for tasks that demand both strength and accuracy in operations such as assembly, gripping, or positioning parts.
• Heavy-Duty Machinery: Perfect for larger machines or industrial equipment that require consistent, high-force actuation, including presses, clamps, and other machinery with high demand for linear motion.
• Manufacturing: Suitable for various manufacturing operations such as pressing, cutting, and forming, where controlled and consistent motion is essential for quality and efficiency.

Advantages:

• High Force and Power: The 50 mm bore size provides significant force output, making the cylinder suitable for demanding applications that require a balance of power and precision.
• Energy Efficiency: The use of low-friction seals minimizes air leakage, optimizing energy use and reducing the overall cost of operation.
• Long-Lasting Performance: The corrosion-resistant anodized aluminum and hardened steel construction provide enhanced durability, ensuring that the MHS4-50D continues to perform at its best even under harsh conditions.
• Precision Control: The adjustable stroke length and smooth motion features enable precise control, making the MHS4-50D ideal for applications that require accurate positioning and speed control.
• Versatility: With its adjustable stroke and multiple mounting options, the MHS4-50D is flexible enough to be integrated into a variety of systems, providing efficient motion control in different industrial applications.

Conclusion:

The Techno MHS4-50D Pneumatic Cylinder is a high-performance, double-acting actuator offering powerful, precise, and reliable linear motion for a wide range of industrial applications. Its 50 mm bore size, adjustable stroke length, and smooth motion control make it ideal for tasks in automation, material handling, robotics, and manufacturing. With its durable construction, energy-efficient design, and flexible mounting options, the MHS4-50D delivers exceptional performance while maintaining cost-effectiveness and long-lasting reliability.
