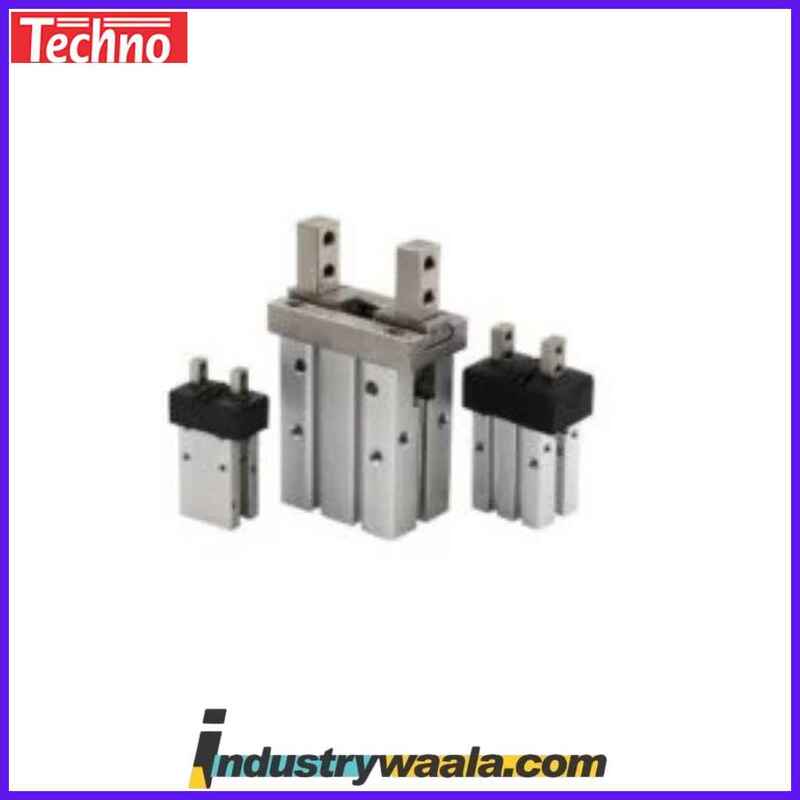

Techno MHZ2-40D Pneumatic Cylinder

The Techno MHZ2-40D Pneumatic Cylinder is a double-acting pneumatic actuator designed for precise and reliable linear motion in various industrial applications. Featuring a 40 mm bore size, this cylinder provides enhanced force output while maintaining a compact and efficient design, making it ideal for medium to heavy-duty tasks in automation, robotics, material handling, and clamping systems. With customizable stroke lengths, the MHZ2-40D is designed to perform reliably in space-constrained environments while offering flexible integration into diverse systems.

Key Features:

1. Bore Size (40 mm):
   • The 40 mm bore size offers increased force output, providing the necessary power for a wide range of applications, including those requiring moderate to heavy-duty operation. Its robust design ensures efficient operation even under demanding conditions.
2. Double-Acting Design:
   • The cylinder is double-acting, meaning it uses compressed air for both the extension and retraction strokes. This provides smooth, controlled movement in both directions, making it ideal for applications requiring balanced and consistent force throughout the operation.
3. Flexible Stroke Length:
   • The stroke lengths of the MHZ2-40D cylinder are adjustable, allowing for custom configurations to fit specific application needs. Stroke lengths typically range from 5 mm to 100 mm, making it suitable for tasks where precision in movement is required, such as positioning or clamping.
4. Pressure Range:
   • Operating within a pressure range of 1 to 8 bar, the MHZ2-40D offers flexibility for use in both low- and high-pressure systems. This range supports reliable operation in a variety of environments, from light-duty to heavy-duty industrial systems.
5. Speed Control:
   • The cylinder features adjustable speed control valves, allowing for precise control over the movement speed during both extension and retraction. This feature is particularly useful in applications where consistent motion and control over velocity are critical.
6. Durable Construction:
   • Built with anodized aluminum for the body and hardened steel for key internal components, the MHZ2-40D is designed to withstand harsh industrial environments. This construction ensures durability, resistance to corrosion, and long-lasting performance, reducing the need for frequent maintenance.
7. Temperature Range:
   • The cylinder is designed to operate effectively in a temperature range of -20°C to 80°C, making it suitable for use in both cold and hot environments without sacrificing performance.
8. Sealing System:
   • Equipped with high-quality sealing technology, the MHZ2-40D minimizes air leakage, ensuring energy efficiency and long-term operational reliability. This advanced sealing reduces the likelihood of wear and tear, contributing to a longer service life.
9. Versatile Mounting Options:
   • The MHZ2-40D offers multiple mounting configurations, such as foot mounts, flange mounts, and through-hole mounts, allowing for flexible integration into various systems. These options provide ease of installation and ensure compatibility with different industrial setups.
10. Energy Efficiency:
    • With its optimized sealing and internal components, the cylinder is designed to be energy-efficient, which helps reduce air consumption and operating costs in large-scale operations.

Applications:

• Industrial Automation: The MHZ2-40D is commonly used in automated systems for tasks such as positioning, sorting, clamping, and handling of parts. Its reliable performance and flexibility make it ideal for integration in modern robotic cells and automated production lines.
• Material Handling: The cylinder is perfect for material handling tasks, including lifting, pushing, and conveying components, where precision and consistent force are essential.
• Clamping and Gripping: The MHZ2-40D is widely used in clamping systems, providing accurate and repeatable movements necessary to hold parts in place during assembly, machining, or testing operations.
• Packaging and Assembly: Its ability to provide consistent force and precise motion makes it ideal for applications in packaging lines, assembly stations, and inspection systems.
• Robotics: The MHZ2-40D is used in robotic systems where precise and repeatable motion is required. It can be integrated into robotic arms for tasks such as gripping, positioning, and sorting.

Advantages:

• Increased Force Output: The 40 mm bore size provides higher force output compared to smaller cylinders, making it suitable for medium-duty to heavy-duty applications.
• Versatility: With adjustable stroke lengths, multiple mounting options, and speed control, the MHZ2-40D is highly customizable to suit various industrial needs.
• Durability and Longevity: Constructed with high-strength materials and high-quality seals, the cylinder offers long-lasting performance with minimal maintenance needs.
• Energy Efficient: The advanced sealing and optimized design minimize air leakage and reduce energy consumption, making the MHZ2-40D a cost-effective solution in the long run.
• Compact and Powerful: Despite its larger bore size, the MHZ2-40D remains compact and easy to integrate into systems that require both power and space efficiency.

Conclusion:

The Techno MHZ2-40D Pneumatic Cylinder offers a combination of powerful force, precision, and durability for a variety of medium to heavy-duty applications. Its 40 mm bore size provides enhanced force output, while its adjustable stroke lengths and speed control ensure flexibility and precision. Whether used in industrial automation, robotics, material handling, or clamping systems, the MHZ2-40D is an ideal solution for applications that require reliable, consistent, and precise motion in demanding environments.
