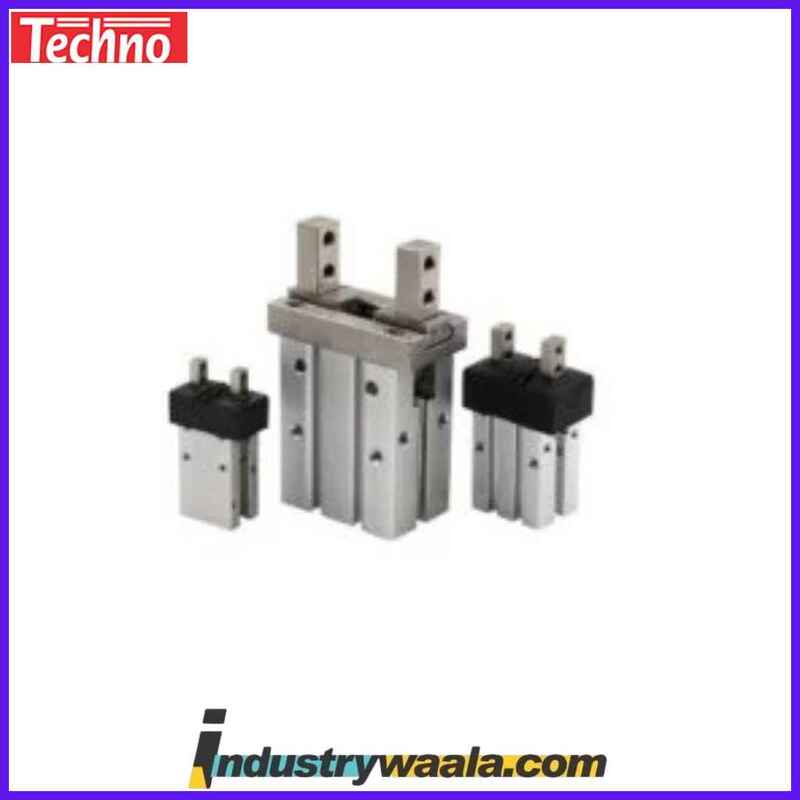

Techno MHZL2-25D Pneumatic Cylinder

The Techno MHZL2-25D Pneumatic Cylinder is a double-acting, linear actuator designed for precision motion in various industrial and automation applications. With a 25 mm bore size and stroke lengths ranging from 5 mm to 100 mm, this cylinder delivers consistent and controlled force in both directions, making it ideal for applications that require high precision and reliability. It is commonly used in robotics, material handling, positioning systems, and clamping applications, where compactness, strength, and flexibility are essential.

Key Features:

1. Bore Size (25 mm):
   • The 25 mm bore size provides a balance of force and compactness, allowing the cylinder to deliver sufficient power for a wide range of applications while maintaining a manageable size for integration into tight spaces within industrial systems.
2. Double-Acting Design:
   • The double-acting mechanism ensures that the cylinder exerts force during both the extension and retraction strokes. This design is ideal for repetitive motions that require constant force and precision in both directions, making it suitable for a wide variety of tasks.
3. Compact and Versatile Design:
   • The MHZL2-25D is designed with a compact profile, making it perfect for integration into space-constrained environments. Despite its small size, it provides enough force for medium-duty applications, including positioning, clamping, and robotic systems.
4. Stroke Length:
   • The cylinder offers a stroke range from 5 mm to 100 mm, providing flexibility for different application needs. This range of stroke lengths makes it suitable for tasks requiring small, medium, and moderate adjustments in industrial settings.
5. Operating Pressure Range:
   • The MHZL2-25D operates within a pressure range of 1 to 8 bar, providing efficient and consistent performance for light to medium-duty tasks. This pressure range ensures reliable performance in various environments, offering controlled force output.
6. Temperature Range:
   • This cylinder operates efficiently in a temperature range of -20°C to 80°C, making it ideal for use in both standard and harsh environments, such as outdoor, cold, or high-temperature industrial settings.
7. Advanced Sealing System:
   • Equipped with advanced sealing technology, the MHZL2-25D minimizes air leakage and friction, ensuring energy efficiency and increasing the operational life of the cylinder. This contributes to overall maintenance cost reduction and long-term durability.
8. Durable Construction:
   • Constructed from anodized aluminum and steel components, the MHZL2-25D is highly durable and resistant to wear and corrosion. This ensures reliable operation even under demanding industrial conditions, extending the life of the actuator.
9. Mounting Options:
   • The cylinder is available with multiple mounting options, such as foot mounts and flange mounts, providing flexibility for installation into a variety of automation systems, robotic arms, positioning systems, or material handling equipment.
10. Adjustable Speed Control:
    • The cylinder features adjustable speed control that allows operators to fine-tune the speed of both extension and retraction. This helps provide precision control in applications where specific motion speeds are necessary.

Applications:

• Automation Systems: The MHZL2-25D is widely used in automated manufacturing systems, where precise and consistent linear motion is required. It can be used for tasks like positioning, sorting, material handling, and component assembly in various industrial environments.
• Robotics: This cylinder is suitable for robotic applications requiring precise linear motion for tasks like part placement, gripping, and adjusting parts within robotic arms and automated processes.
• Material Handling: The MHZL2-25D is used in material handling systems to move parts and position materials within production lines. Its compact size and high force output make it ideal for handling small to medium-sized components.
• Clamping Systems: Ideal for clamping operations, the cylinder can be used to hold parts during machining, assembly, or testing processes. Its precise control over extension and retraction makes it useful in applications requiring accurate positioning.
• Positioning Systems: The MHZL2-25D is commonly integrated into positioning systems, where accurate, repeatable movements are critical. It provides linear motion control for moving parts or adjusting positions in various industrial setups.
• Packaging Systems: The MHZL2-25D can be used in packaging systems for tasks such as positioning packaging materials, adjusting components, and handling lightweight products during the packaging process.

Advantages:

• Compact and Strong: The 25 mm bore size provides a good balance between force output and space efficiency, making it ideal for medium-duty applications in constrained spaces.
• Precise Motion: With its double-acting design and adjustable stroke length, the MHZL2-25D delivers high-precision movement that is reliable and repeatable, ensuring accuracy in all operations.
• Durability and Longevity: Made from high-quality materials, the cylinder offers excellent wear resistance and corrosion protection, ensuring long-lasting performance even under heavy use in industrial environments.
• Energy Efficient: The advanced sealing technology reduces air leakage, improving energy efficiency and reducing operating costs by minimizing energy wastage.
• Flexible Integration: With varied mounting options and adjustable speed control, the MHZL2-25D can be easily integrated into different systems, allowing for flexible application in various industrial settings.

Conclusion:

The Techno MHZL2-25D Pneumatic Cylinder is a compact, reliable, and versatile actuator that delivers precise linear motion in space-limited environments. Its 25 mm bore size, double-acting mechanism, and adjustable stroke range make it suitable for a wide variety of tasks, including automation, robotics, material handling, and clamping systems. With its advanced sealing system, adjustable speed control, and durable construction, the MHZL2-25D offers long-lasting performance and reliability, making it an excellent choice for medium-duty industrial applications where precision, efficiency, and durability are essential.
