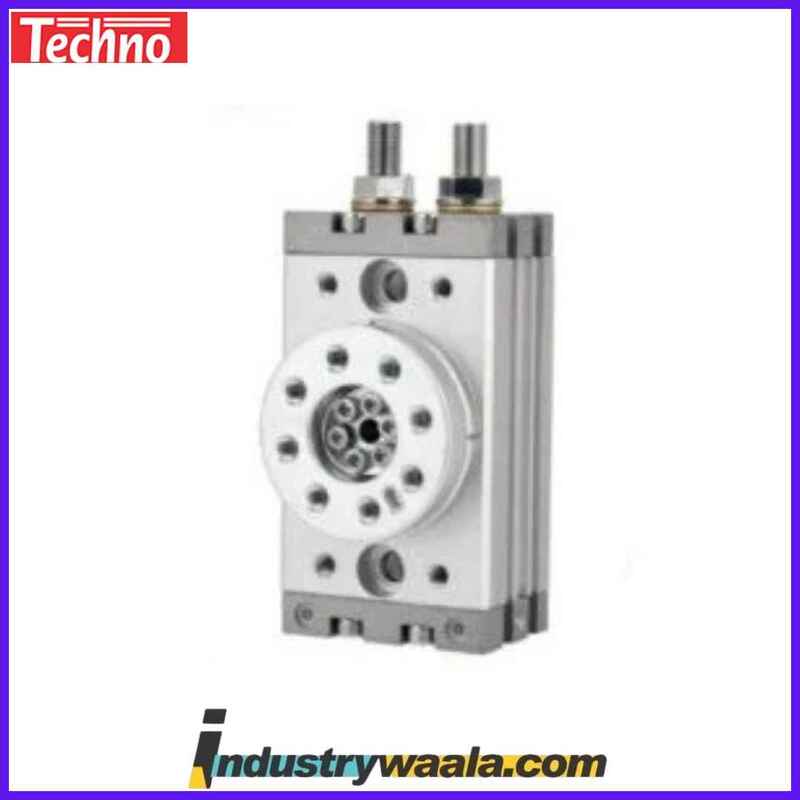

Techno MSQB-50R Pneumatic Cylinder

The Techno MSQB-50R Pneumatic Cylinder is a high-performance, double-acting actuator designed for precise and reliable linear motion in a variety of industrial applications. With a 50 mm bore size and robust construction, this pneumatic cylinder is ideal for medium-duty tasks that require both high durability and operational efficiency. It offers superior performance in applications where space is a concern, yet high force and reliable motion are essential. The MSQB-50R is particularly suited for automation systems, material handling, packaging, and assembly lines where controlled motion, accuracy, and versatility are required.

Key Features:

1. Bore Size (50 mm):
   • The 50 mm bore size is optimal for medium-force applications, providing an effective balance of power and compactness. This makes it ideal for tasks requiring moderate force while maintaining a compact profile, especially in constrained spaces.
2. Double-Acting Design:
   • As a double-acting cylinder, the MSQB-50R uses compressed air to actuate the piston in both directions, ensuring smooth, efficient motion in both extension and retraction. This design eliminates the need for external springs and provides high performance with consistent results.
3. Stroke Length Options:
   • The stroke length of the cylinder can be customized based on specific application needs, offering flexibility in its use across a range of tasks. The adjustable stroke length allows for tailored solutions in systems that require specific movement distances.
4. Durable Construction:
   • Built with high-quality materials, the MSQB-50R offers outstanding durability, ensuring reliable performance under continuous use. The cylinder’s construction, typically featuring anodized aluminum and steel components, resists wear and damage, extending the service life of the unit.
5. Advanced Sealing Technology:
   • The advanced sealing system minimizes air leakage, reducing friction and enhancing efficiency. These seals are designed to withstand harsh environments, ensuring long-lasting, leak-free operation even under demanding conditions.
6. Pressure Range:
   • The MSQB-50R operates within a pressure range of 2 to 8 bar, allowing users to adjust the cylinder's force output to meet specific application needs. This flexible pressure range enables efficient operation across various industrial tasks.
7. Temperature Range:
   • With a temperature range of -20°C to 80°C, the MSQB-50R is designed for use in diverse industrial environments. It can perform efficiently in both cold and warm climates, ensuring stable performance even in harsh conditions.
8. Mounting Options:
   • The MSQB-50R offers a variety of mounting configurations (foot, flange, etc.), providing flexibility for integration into different systems. This versatility allows the cylinder to be easily adapted for a wide range of industrial applications.
9. Speed Control:
   • For applications requiring precise motion control, the cylinder can be equipped with speed control valves to adjust the extension and retraction speeds. This feature ensures smooth, controlled movement, critical for tasks requiring accuracy.
10. Compact Design:

• Despite its medium-force capabilities, the MSQB-50R is designed to be compact and space-efficient, making it an excellent choice for installations in tight spaces where a larger cylinder would not fit.

Applications:

• Material Handling: The MSQB-50R can be used in material handling systems to push, pull, or position components on conveyor belts, feeders, or sorting systems. Its precise linear motion ensures that materials are handled efficiently and accurately.
• Clamping and Positioning: The cylinder is suitable for clamping applications, such as in automated assembly lines where parts need to be securely held in place during processing. Its precise motion ensures that parts are held securely without damaging delicate components.
• Assembly Lines: In assembly automation, the MSQB-50R can assist with the placement of parts, component feeding, or other assembly tasks. The cylinder's versatility and ability to operate in compact spaces make it ideal for use in various automation equipment.
• Packaging Systems: The MSQB-50R can be used in packaging machines for positioning, sorting, or sealing products. Its medium-force output is perfect for handling smaller packages or lightweight items in high-speed packaging operations.
• Robotic Systems: Integrated into robotic arms or automated systems, the cylinder can provide linear motion for tasks such as pick-and-place, part handling, or precision positioning in manufacturing and assembly robots.
• Automated Manufacturing: The cylinder can be used in production lines for tasks such as feeding, stacking, lifting, or moving parts through various stages of manufacturing, where precision and reliability are essential.

Advantages:

• Medium-Force Capability: The 50 mm bore size allows the MSQB-50R to provide adequate force for medium-duty tasks while keeping the size compact enough for installation in limited spaces.
• Durability and Longevity: Constructed with high-quality materials and advanced sealing technology, the cylinder is designed for long-lasting performance, even in demanding industrial environments.
• Flexible Integration: The multiple mounting options and adjustable pressure range make the MSQB-50R suitable for a wide range of industrial applications, offering flexibility in both integration and operation.
• Precise Motion Control: The cylinder’s speed control feature enables fine-tuning of motion, ensuring smooth and controlled operation for delicate tasks that require high precision.
• Compact Design for Tight Spaces: Despite offering medium-force capabilities, the MSQB-50R remains compact and ideal for systems with limited installation space, without sacrificing performance.
• Wide Temperature Range: Its temperature tolerance allows it to perform reliably in environments with fluctuating temperatures, from cold storage areas to moderately heated production lines.

Conclusion:

The Techno MSQB-50R Pneumatic Cylinder is an ideal solution for medium-duty industrial applications requiring reliable, precise, and efficient linear motion. With its 50 mm bore size, advanced sealing system, and multiple mounting options, it delivers superior performance in tasks such as material handling, assembly, clamping, and packaging. Its compact design, wide pressure and temperature ranges, and speed control features make it versatile and adaptable to various operational conditions, ensuring smooth and accurate movement across a wide array of industrial systems. Whether for automation systems, robotic applications, or manufacturing, the MSQB-50R provides the necessary reliability and efficiency to improve productivity and reduce downtime.
