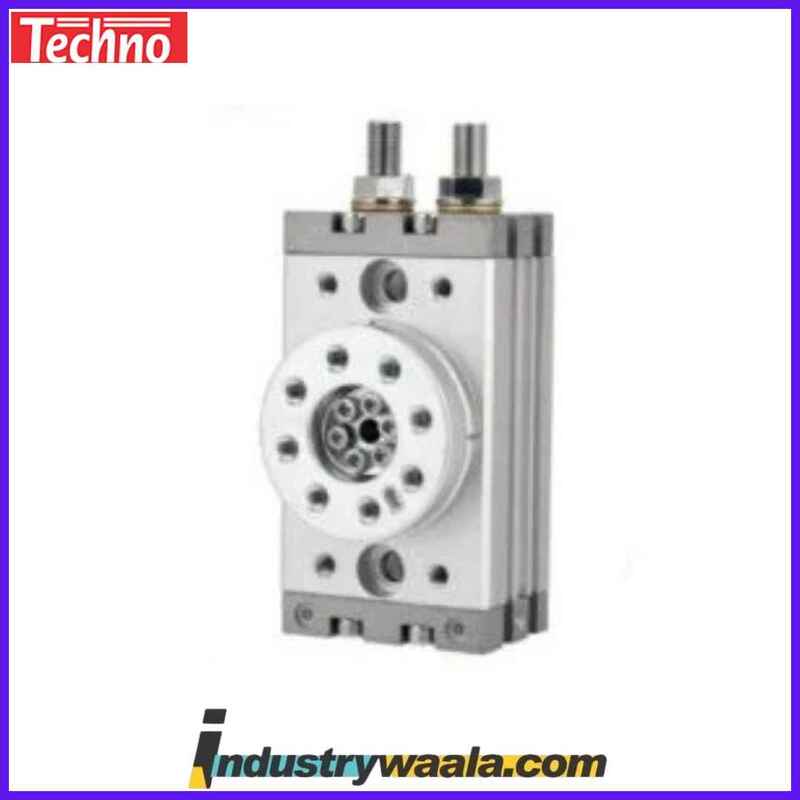

Techno MSQB-70A Pneumatic Cylinder

The Techno MSQB-70A Pneumatic Cylinder is a high-performance, double-acting pneumatic actuator designed for applications that require medium to high force output and reliable linear motion. With a 70 mm bore size, this cylinder is engineered for durability and efficiency, offering consistent and precise operation in a variety of industrial environments. The MSQB-70A is ideal for tasks that involve material handling, automation systems, clamping, and assembly processes, where moderate to high force is required. It provides smooth, controlled movement and is designed to meet the demands of various industrial applications with both reliability and longevity.

Key Features:

1. Bore Size (70 mm):
   • The 70 mm bore size offers an ideal balance of power and compactness, providing adequate force for medium to high-duty applications. The larger bore size ensures enough pushing and pulling force while maintaining a manageable size for integration into systems where space is a consideration.
2. Double-Acting Design:
   • The double-acting configuration uses compressed air to drive the piston in both directions, making the cylinder versatile in applications requiring movement in both extension and retraction. This efficient design ensures smooth and continuous motion without the need for additional springs, offering increased operational reliability and performance.
3. Stroke Length Options:
   • The stroke length of the MSQB-70A is customizable to suit specific application requirements. Users can adjust the stroke length for precise control over the range of motion, making this cylinder ideal for diverse tasks where flexibility in movement is needed.
4. Durable Construction:
   • Built from high-quality, anodized aluminum and steel components, the cylinder is constructed to withstand heavy-duty use. The durable materials used in the cylinder ensure it operates effectively in rugged environments and under demanding conditions, minimizing wear and tear over time.
5. Advanced Sealing Technology:
   • The MSQB-70A incorporates advanced sealing technology to prevent air leakage and minimize internal friction. This design reduces maintenance needs and enhances the operational life of the cylinder by ensuring effective sealing even in challenging environments.
6. Pressure Range:
   • The cylinder operates efficiently within a pressure range of 2 to 8 bar, providing flexibility to adjust the force output based on the specific requirements of the application. The ability to adjust the pressure range allows for more precise control over movement and force, improving efficiency in different processes.
7. Temperature Range:
   • Designed to function across a wide temperature range of -20°C to 80°C, the MSQB-70A is versatile and capable of operating in a variety of industrial conditions. Whether used in cold environments or heated areas, the cylinder can maintain consistent performance and reliability.
8. Mounting Options:
   • The MSQB-70A offers multiple mounting options, such as foot mounts, flange mounts, and others, providing flexibility for integrating the cylinder into a wide range of applications and equipment. This flexibility ensures compatibility with different machine designs and installation configurations.
9. Speed Control:
   • The cylinder can be equipped with speed control valves, allowing users to regulate the extension and retraction speeds. This feature is particularly useful in applications requiring precise motion control, ensuring smooth and accurate operation for tasks like positioning, sorting, or part handling.
10. Compact Design:
    • Despite its larger bore size, the MSQB-70A maintains a compact design, making it suitable for use in systems where space is limited but high force output is still needed. This compactness allows for efficient use in confined environments without compromising performance.

Applications:

• Material Handling: The MSQB-70A is highly effective in material handling systems, where it can be used for pushing, pulling, or positioning components along conveyors, feeders, or sorting systems. The larger bore size provides ample force for moving heavier materials or larger components.
• Clamping and Positioning: In clamping applications, such as assembly or packaging lines, the MSQB-70A ensures secure holding of parts during processes such as fastening, pressing, or welding. Its medium to high force output ensures reliable clamping without damaging delicate components.
• Assembly Lines: The cylinder’s precise motion and reliable force output make it suitable for automated assembly lines. Whether for component feeding, placement, or alignment, the MSQB-70A ensures efficient handling and assembly of parts, enhancing productivity.
• Packaging Systems: In packaging systems, the MSQB-70A is used to position, sort, or pack products. Its consistent performance under varying loads makes it ideal for high-speed packaging operations that require high reliability and force.
• Robotic Systems: The MSQB-70A is well-suited for integration into robotic systems where it can provide the necessary force and movement for tasks such as pick-and-place, sorting, or assembly. Its precise control and durability make it an excellent choice for automated processes in manufacturing.
• Pressing and Stamping: The cylinder is ideal for pressing and stamping applications in industries such as automotive or electronics manufacturing. Its powerful actuation ensures reliable pressing force while maintaining accuracy and consistency.

Advantages:

• Medium to High Force Output: The 70 mm bore size provides an excellent balance between force capacity and compactness, making it ideal for medium to heavy-duty tasks that require significant pushing or pulling force.
• Durability and Low Maintenance: With advanced sealing technology and durable construction, the MSQB-70A is designed for long-lasting performance, reducing downtime and the need for frequent maintenance.
• Versatile Integration: The multiple mounting options and customizable stroke length make the MSQB-70A highly adaptable to a wide range of industrial applications, offering flexibility in installation and use.
• Precise Control and Flexibility: The speed control option allows for fine-tuning of motion speeds, ensuring that the cylinder can meet the specific requirements of various applications that demand high precision and accuracy.
• Wide Temperature and Pressure Range: The cylinder’s ability to operate in a wide temperature range and adjust its pressure range allows it to perform reliably in diverse industrial environments and conditions.

Conclusion:

The Techno MSQB-70A Pneumatic Cylinder is a powerful and versatile solution for medium to high-duty industrial applications requiring precise linear motion. With its 70 mm bore size, customizable stroke length, and advanced sealing system, the MSQB-70A delivers consistent performance for material handling, clamping, assembly, packaging, and robotic systems. Its durability, multiple mounting options, and ability to operate across a wide temperature and pressure range make it a flexible and reliable choice for a variety of industrial environments. Whether used in manufacturing, automation, or robotics, the MSQB-70A offers the power, precision, and adaptability needed to improve efficiency and productivity.
