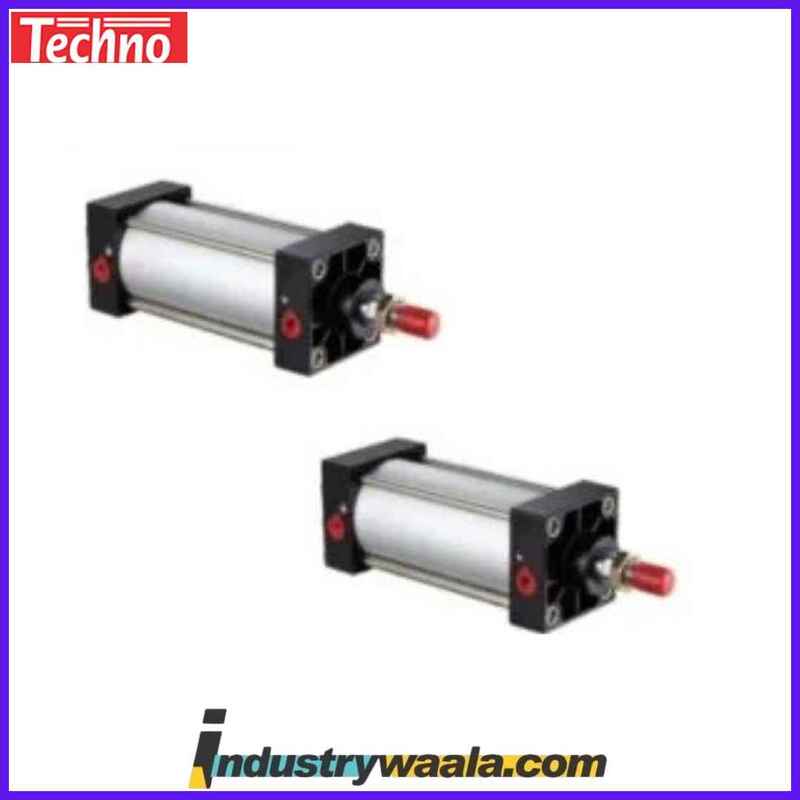

Techno SC100 X 225 Pneumatic Cylinder

The Techno SC100 X 225 Pneumatic Cylinder is a high-performance, double-acting actuator designed to deliver precise, controlled linear motion in a variety of industrial applications. With a 100 mm bore size and 225 mm stroke length, this cylinder is perfect for tasks that require moderate force and extended range, such as material handling, clamping, automated assembly, and robotics. Its durable construction, advanced sealing system, and flexible mounting options make it a versatile and reliable solution for medium-duty applications across various industries.

Key Features:

1. Bore Size (SC100):
   • The 100 mm bore size offers a powerful combination of strength and efficiency. It ensures that the cylinder can generate adequate force for a variety of medium-duty tasks while maintaining space efficiency. The bore size allows for controlled movement and stable performance over the 225 mm stroke length, making it suitable for both pushing and pulling applications.
2. Stroke Length (225 mm):
   • The 225 mm stroke length provides a medium-range linear movement, ideal for applications that require moderate travel distance with high precision. The extended stroke length allows for more flexibility in positioning, clamping, or handling materials in automation and assembly processes.
3. Double-Acting Design:
   • As a double-acting cylinder, the SC100 X 225 uses compressed air to extend and retract the piston in both directions. This design eliminates the need for external springs and enhances control over the movement speed and force. It also offers a continuous and reliable operation, making it suitable for repetitive tasks in industrial applications.
4. Durable Construction:
   • The SC100 X 225 is constructed with high-quality materials, such as anodized aluminum for the body and steel for other critical components. This robust construction ensures that the cylinder can withstand the rigors of industrial environments, offering long-lasting performance even under heavy-duty usage and reducing downtime caused by component wear.
5. Advanced Sealing Technology:
   • The cylinder is equipped with advanced sealing technology that minimizes air leakage and reduces friction between moving parts. This helps ensure smooth, efficient operation and extends the life of the cylinder by reducing the risk of internal damage. The high-quality seals also contribute to reduced maintenance and operating costs.
6. Mounting Options:
   • The SC100 X 225 offers multiple mounting options, such as foot mounts, flange mounts, and trunnion mounts, providing flexibility for integration into different machine setups. These mounting options ensure the cylinder can be adapted to various configurations, optimizing space and functionality for different industrial applications.
7. Pressure Range:
   • The SC100 X 225 operates within a pressure range of 2 to 8 bar, giving users flexibility in adjusting the force output based on specific application requirements. This pressure range is ideal for medium-duty tasks, ensuring that the cylinder can deliver adequate power without overloading or underperforming.
8. Temperature Range:
   • Designed to operate within a temperature range of -20°C to 80°C, the SC100 X 225 is capable of performing consistently in a variety of industrial environments. Whether in high-temperature production lines or cooler environments, the cylinder maintains its reliability, ensuring accurate performance regardless of ambient temperature.
9. Speed Control:
   • The SC100 X 225 can be equipped with speed control valves, allowing users to adjust the extension and retraction speeds of the cylinder. This feature is particularly useful in applications that require precise, synchronized motion, such as in robotic systems or automated manufacturing lines, ensuring smooth and consistent movement.

Applications:

• Material Handling: The SC100 X 225 is perfect for material handling applications, where it can be used for tasks like positioning, pushing, or pulling materials on conveyors or automated systems. The 225 mm stroke length ensures it can handle various materials efficiently with precise motion control.
• Automated Assembly: The cylinder is ideal for automated assembly lines, where it can be used to place, position, or clamp components during the assembly process. The precision and controlled force of the SC100 X 225 ensure that components are handled with accuracy and reliability.
• Clamping and Pressing: In clamping and pressing applications, the SC100 X 225 provides a reliable and consistent force over a medium distance. The extended stroke length ensures that parts are securely held or pressed into position, enhancing the efficiency and accuracy of manufacturing processes.
• Robotics: The SC100 X 225 is suitable for use in robotic systems, where it can control the movement of robotic arms or grippers. The precise linear motion and adjustable speed control allow for smooth, synchronized operation, making it ideal for handling, positioning, or assembly tasks in robotics.
• Packaging and Sorting: In packaging lines, the cylinder can be used for sorting, aligning, or positioning products as they move through the production process. The 225 mm stroke length is versatile enough to handle different product sizes, ensuring that the products are correctly oriented and processed.
• Textile and Manufacturing: The SC100 X 225 can be used in textile and manufacturing operations for tasks like feeding, positioning, or adjusting materials within machines. Its reliable performance and precise movement make it an excellent choice for these applications.

Advantages:

• Efficient and Precise: The 100 mm bore size and 225 mm stroke length provide a powerful and balanced combination of force and movement, making the SC100 X 225 ideal for a variety of medium-duty applications requiring controlled, precise motion.
• Durable and Low Maintenance: Constructed with high-quality materials and advanced sealing technology, the cylinder is built to last. Its durable design minimizes maintenance needs and operational downtime, ensuring cost savings and high efficiency over time.
• Flexible Integration: The multiple mounting options and adjustable pressure range allow the SC100 X 225 to be easily integrated into various machines and systems, offering versatility for different industrial applications. Its adaptability ensures compatibility with a wide range of setups and configurations.
• Consistent Performance: With its wide temperature range, speed control features, and durable construction, the SC100 X 225 ensures reliable and consistent performance, even in harsh or demanding environments. Its flexibility and performance make it an ideal choice for industries requiring precision and reliability.
• Versatile Applications: The SC100 X 225 is a versatile solution for a wide range of applications, from material handling and clamping to robotics and packaging. Its precise control and medium stroke length make it adaptable to many different industries and applications.

Conclusion:

The Techno SC100 X 225 Pneumatic Cylinder offers a durable and reliable solution for medium-duty industrial applications requiring precise linear motion. With its 100 mm bore size and 225 mm stroke length, it delivers strong performance for tasks such as material handling, automated assembly, clamping, and robotics. Its robust construction, advanced sealing technology, and multiple mounting options ensure long-lasting performance, while the flexibility to control pressure and speed makes it adaptable for various applications. The SC100 X 225 is an excellent choice for industries seeking a versatile, efficient, and reliable pneumatic cylinder.
