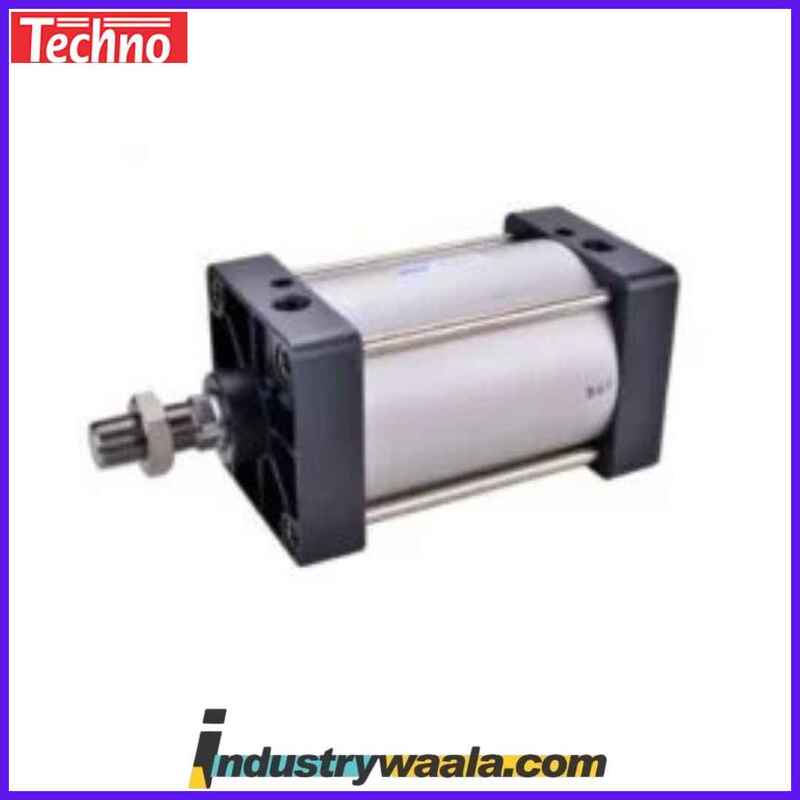

Techno SC100 X 400 Pneumatic Cylinder

The Techno SC100 X 400 Pneumatic Cylinder is a high-performance, double-acting actuator designed for industrial applications that require reliable and powerful linear motion over a medium to long stroke length. With a 100 mm bore size and 400 mm stroke length, this cylinder is engineered to provide controlled force and precision in a wide variety of industrial applications. Its robust design ensures durability and efficiency in handling tasks such as material handling, automated assembly, clamping, and other manufacturing processes that require both strength and accuracy.

Key Features:

1. Bore Size (SC100):
   • The 100 mm bore size allows the cylinder to generate moderate to high levels of force, making it suitable for tasks requiring substantial pushing, pulling, or lifting power. This bore size strikes an excellent balance between force output and space, providing enough force for medium-duty applications without taking up excessive space in the system.
2. Stroke Length (400 mm):
   • The 400 mm stroke length offers significant movement, making the SC100 X 400 ideal for applications that require a moderate to long range of linear motion. This stroke length is ideal for tasks like positioning, lifting, pushing, or pulling components over a longer distance. Its longer stroke makes it useful in systems where parts or equipment need to be moved or adjusted at a distance, providing flexibility in both industrial and automation systems.
3. Double-Acting Design:
   • The SC100 X 400 is a double-acting cylinder, meaning it uses compressed air to extend and retract the piston in both directions. This feature provides more control and power than single-acting cylinders, enabling continuous operation without the need for external springs. Double-acting cylinders like the SC100 X 400 are ideal for applications where both directions of motion are required.
4. Durable Construction:
   • Built with high-quality materials such as anodized aluminum and steel, the SC100 X 400 is designed for durability and longevity. The materials are selected to ensure resistance to wear, corrosion, and high-pressure conditions, ensuring that the cylinder operates effectively even in harsh industrial environments.
5. Advanced Sealing Technology:
   • The cylinder uses advanced sealing technology to minimize air leakage and enhance its operational efficiency. The seals are designed for high durability, ensuring a longer service life with minimal maintenance. This advanced sealing reduces the likelihood of downtime due to air loss and ensures smooth, reliable performance over time.
6. Mounting Options:
   • The SC100 X 400 offers multiple mounting options, including foot mounts, flange mounts, and trunnion mounts, providing flexibility in installation. These various mounting options allow the cylinder to be adapted to different machine types and installation setups, ensuring it can fit into a variety of configurations for different industrial applications.
7. Pressure Range:
   • The SC100 X 400 operates efficiently within a pressure range of 2 to 8 bar, offering flexibility in force output. The adjustable pressure settings allow users to tailor the cylinder’s force to meet specific requirements, whether for light-duty or heavy-duty tasks. This ensures the cylinder can adapt to various operating conditions in different types of machinery or automated systems.
8. Temperature Range:
   • The SC100 X 400 is designed to work effectively in a wide temperature range from -20°C to 80°C, making it suitable for both indoor and outdoor use. Whether in colder climates or high-temperature factory settings, the cylinder provides reliable performance across a broad spectrum of environments.
9. Speed Control:
   • The SC100 X 400 can be equipped with speed control valves to adjust the rate of extension and retraction. This is particularly useful in applications where precise timing and motion speed are critical, such as in automation systems that require synchronization with other components or processes.

Applications:

• Material Handling: The SC100 X 400 is ideal for use in material handling systems where its moderate force and long stroke are beneficial for moving and positioning larger or heavier materials over a distance. It can be used in conveyors, lifts, or robotic arms to move goods or adjust materials in production lines.
• Automated Assembly: In automated assembly systems, the cylinder can be used for precise positioning of components, clamping parts into place, or adjusting machines or tools. Its longer stroke length allows for greater flexibility in automated systems requiring multiple movements or tasks.
• Packaging and Sorting: The SC100 X 400 is excellent for packaging and sorting applications, where products need to be moved, positioned, or stacked over a larger area. It can be used in packaging machines to handle larger or heavier products during the packaging process.
• Clamping and Pressing: In pressing machines, the SC100 X 400 can be used to apply force over a longer stroke for tasks such as pressing, stamping, or molding materials. Its power and stroke length make it suitable for pressing operations that require precise, controlled movements.
• Robotics: This pneumatic cylinder can be integrated into robotic systems for moving, lifting, or positioning components. The long stroke and high power make it ideal for use in robotic arms or robotic grippers where precise, extended movement is necessary.
• Textile and Manufacturing: In textile and other manufacturing industries, the SC100 X 400 can be used for tasks such as feeding, positioning, and adjusting materials during production, ensuring smooth and efficient operation of manufacturing processes.
• Construction and Heavy Equipment: The SC100 X 400 can be utilized in construction or heavy equipment machinery, where a longer stroke length and greater force are required for lifting, pushing, or adjusting large components.

Advantages:

• Powerful and Flexible: The 100 mm bore size and 400 mm stroke deliver powerful performance while providing flexibility in a variety of applications, from material handling to robotic systems.
• Precise Control: The cylinder’s double-acting design ensures precise, reliable motion in both directions, providing control over movement and position in tasks requiring accurate positioning over a long range.
• Durability and Reliability: Designed to operate in demanding environments, the SC100 X 400 is built with durable materials and advanced sealing to ensure long-term reliability with minimal maintenance.
• Energy Efficiency: The cylinder is designed for optimal air consumption, making it an energy-efficient solution for medium to heavy-duty applications, reducing operating costs while maintaining high performance.
• Versatile Integration: Multiple mounting options and a wide pressure range allow the cylinder to be easily integrated into various systems, ensuring compatibility with different machines, tools, and industrial setups.

Conclusion:

The Techno SC100 X 400 Pneumatic Cylinder is a versatile, high-performance actuator that combines powerful linear motion with precision and reliability. Its 100 mm bore size and 400 mm stroke length make it an ideal solution for a wide range of industrial applications, including material handling, automated assembly, packaging, and robotics. With its durable construction, advanced sealing technology, and flexible mounting options, the SC100 X 400 provides efficient, long-lasting performance even in demanding environments, ensuring that it can meet the needs of diverse industries and applications.
