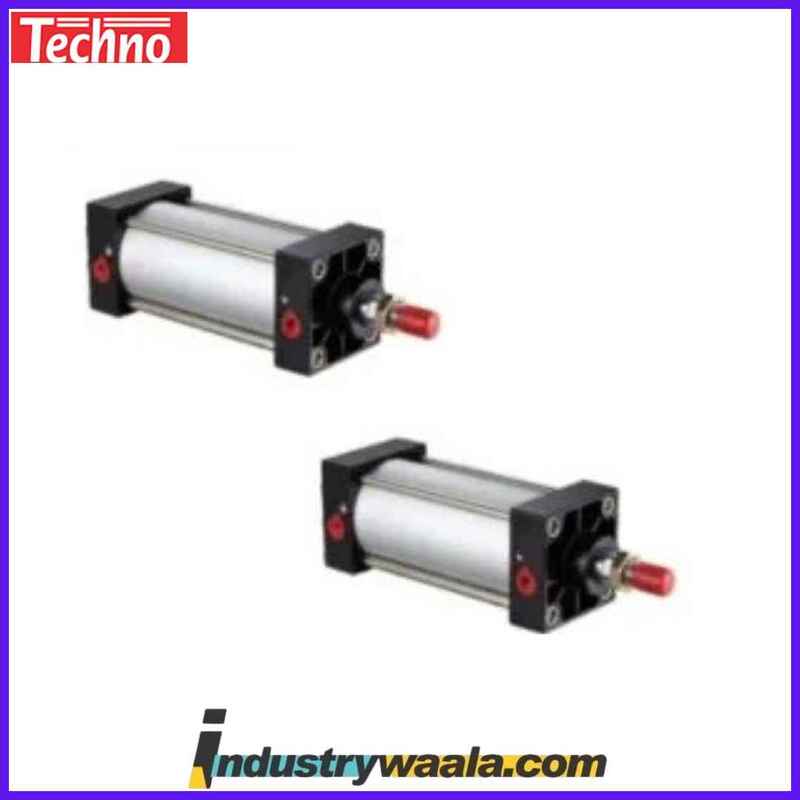

Techno SC125 X 1000 Pneumatic Cylinder

The Techno SC125 X 1000 Pneumatic Cylinder is a high-performance, double-acting pneumatic actuator designed for heavy-duty industrial applications requiring extended linear motion. With a 125 mm bore size and a 1000 mm stroke length, this cylinder is capable of delivering substantial force over a long distance, making it ideal for applications that involve moving large or heavy components, material handling, or tasks that require high precision and extended reach.

Key Features:

1. Bore Size (SC125):
   • The 125 mm bore size refers to the internal diameter of the cylinder. This large bore size enables the cylinder to generate significant force, making it suitable for heavy-duty applications. The increased diameter ensures that it can move large loads with a high degree of efficiency, especially in material handling, pushing, or lifting tasks.
2. Stroke Length (1000 mm):
   • The 1000 mm stroke length provides the cylinder with an impressive range of motion, which is perfect for tasks requiring extended reach, such as moving heavy materials across long distances or adjusting large equipment. This long stroke length is often necessary in systems where precise positioning or motion over greater distances is required, such as in large-scale automation systems, presses, or lifts.
3. Double-Acting Design:
   • As a double-acting cylinder, the SC125 X 1000 uses compressed air to extend the piston in one direction and retract it in the opposite direction. This design provides powerful and efficient motion, making the cylinder ideal for tasks requiring controlled and repetitive movement in both directions. Double-acting cylinders are versatile and can operate continuously with high efficiency.
4. Heavy-Duty Construction:
   • Built to endure demanding environments, the SC125 X 1000 is made from high-quality materials such as anodized aluminum or steel, ensuring durability and corrosion resistance. This robust construction allows the cylinder to withstand high pressures and repetitive use, ensuring longevity and minimizing maintenance.
5. Advanced Sealing Technology:
   • The cylinder incorporates high-performance seals that minimize air leakage and prevent dirt or contaminants from entering the system, ensuring consistent and smooth operation. The advanced sealing design helps extend the cylinder’s lifespan and provides reliable performance even in harsh operating conditions.
6. Mounting Options:
   • The SC125 X 1000 offers a wide range of mounting configurations to ensure flexible integration into different systems. These include flange mounts, foot mounts, and trunnion mounts, allowing the cylinder to be adapted to various machinery setups and installation environments.
7. Pressure Range:
   • The SC125 X 1000 typically operates within a pressure range of 2 to 8 bar, which allows it to produce the necessary force for high-demand applications. The force output can be adjusted based on the required task by controlling the air pressure, providing both flexibility and efficiency in industrial environments.
8. Temperature Range:
   • This cylinder is designed to function in a wide temperature range of -20°C to 80°C, making it suitable for use in various environments, from colder outdoor conditions to hotter factory floors. The wide temperature tolerance ensures stable performance across different operating environments.
9. Speed Control:
   • The SC125 X 1000 can be equipped with speed regulators to control the speed of the extension and retraction cycles. This is particularly useful in processes where precise timing and speed control are required to ensure accurate positioning or synchronization with other systems in an assembly line or production process.

Applications:

• Material Handling: The large bore and long stroke length of the SC125 X 1000 make it ideal for tasks such as lifting, pushing, or moving large and heavy materials across long distances, often used in conveyor systems or robotic material handling.
• Automated Manufacturing: It is well-suited for use in automated systems that require heavy lifting, precise motion, or adjustments of large equipment or machinery components.
• Presses and Stamping: The cylinder’s powerful force and long stroke length are ideal for pressing, stamping, or forming operations in industrial settings such as metalworking, automotive manufacturing, or packaging.
• Robotics and Automation: With its ability to provide long and controlled strokes, the SC125 X 1000 is used in robotic arms, where it can precisely manipulate large parts or assemblies.
• Construction and Heavy Machinery: This cylinder is also well-suited for use in construction equipment or heavy machinery where extended stroke lengths and high force are required for lifting, pushing, or adjusting heavy parts.
• Packaging and Sorting: It can be used in large-scale packaging machines, where large items need to be pushed, positioned, or manipulated within the production flow.

Advantages:

• High Force Output: The large 125 mm bore size ensures the cylinder can exert significant force, making it suitable for tasks that involve lifting, pushing, or moving large components.
• Extended Reach: With a 1000 mm stroke length, this cylinder provides the ability to cover large distances, making it ideal for tasks where extended linear motion is necessary.
• Durability and Reliability: The heavy-duty construction, combined with advanced sealing technology, ensures long-term reliability and minimal downtime, even in harsh environments.
• Versatile Mounting: Multiple mounting options allow easy integration into a variety of machinery, making it adaptable to a wide range of industrial applications.
• Energy Efficiency: The design of the SC125 X 1000 ensures that it operates efficiently, optimizing air usage and reducing energy consumption while delivering powerful performance.

Conclusion:

The Techno SC125 X 1000 Pneumatic Cylinder is a powerful and reliable solution for heavy-duty industrial applications requiring long stroke lengths and substantial force. With its durable construction, advanced sealing technology, and versatile mounting options, it is ideal for a range of tasks including material handling, presses, automated manufacturing, and heavy machinery. The cylinder’s ability to handle high pressures and operate in a wide range of temperatures ensures it delivers consistent, efficient performance in demanding environments. Whether used in manufacturing, construction, or automation, the SC125 X 1000 is a valuable asset for industries that need precision and power in their pneumatic systems.
