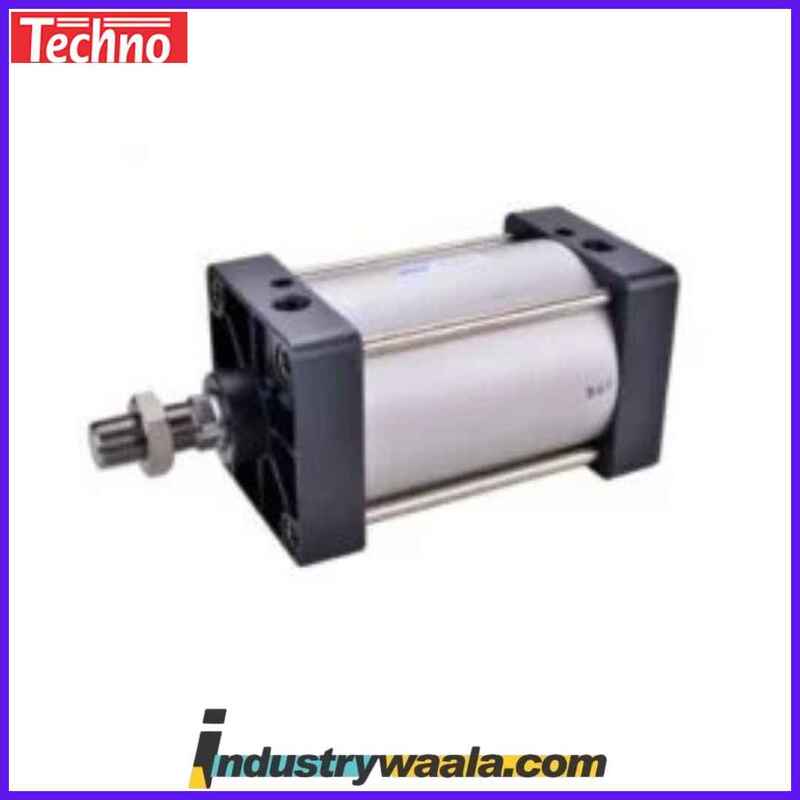

Techno SC125 X 200 Pneumatic Cylinder

The Techno SC125 X 200 Pneumatic Cylinder is a robust and versatile pneumatic actuator designed for applications that require linear motion with controlled force. Pneumatic cylinders like the SC125 X 200 are commonly used in automation, manufacturing, and industrial processes. Here's a detailed description of the SC125 X 200 model:

Key Features:

1. Cylinder Type:
   • The SC125 X 200 is a double-acting pneumatic cylinder, meaning it uses compressed air to extend and retract the piston within the cylinder. This provides precise control over movement and speed.
2. Bore Size (SC125):
   • The number "125" refers to the bore size, which is 125 mm. The bore size determines the internal diameter of the cylinder and directly influences the force the cylinder can exert. A larger bore size can generate more force, which is important for tasks requiring high strength.
3. Stroke Length (200):
   • The 200 refers to the stroke length of the cylinder, which is the maximum distance the piston can travel. This particular model has a stroke length of 200 mm, providing enough range for moderate motion applications in industrial settings.
4. High-Quality Construction:
   • Typically, Techno pneumatic cylinders are made from high-quality materials such as anodized aluminum or steel, providing corrosion resistance and durability. The SC125 X 200 is designed to withstand harsh industrial environments, with robust sealing to prevent air leakage and ensure smooth operation.
5. Piston Rod and End Caps:
   • The piston rod in this cylinder is typically made from hardened steel or stainless steel for strength and wear resistance. The end caps are precision-engineered to ensure that the piston is securely contained while allowing smooth movement.
6. Mounting Options:
   • Pneumatic cylinders like the SC125 X 200 typically offer a variety of mounting options such as flange, foot, or trunnion mounts, depending on the application's requirements. These flexible mounting options make the cylinder versatile in various configurations.
7. Operating Pressure Range:
   • The SC125 X 200 can typically handle a wide range of operating pressures, from 2 to 8 bar, depending on the specific design and intended use. The exact operating pressure can affect the force output of the cylinder.
8. Temperature Range:
   • The cylinder is designed to operate in a wide temperature range, typically from -20°C to 80°C, allowing it to function effectively in various environmental conditions.
9. Pneumatic Seal Design:
   • Pneumatic cylinders like this feature advanced sealing technology to minimize air leakage and maximize efficiency. They also have wear-resistant seals to extend the service life of the cylinder.
10. Precision Control:
    • The cylinder’s construction allows for precise control over extension and retraction speeds when integrated with pneumatic control valves, which helps in applications requiring fine motion or force adjustments.

Applications:

• Industrial Automation: Used in robotic arms, material handling systems, or automated assembly lines.
• Packaging: In machines that require linear movement for opening, closing, or positioning parts.
• Food Processing: Cylinders used for moving product trays, conveyors, or adjusting machinery.
• Textile Industry: For controlling looms, cutting machines, or similar equipment.
• Automotive Manufacturing: Pneumatic cylinders are widely used for component positioning, stamping, or assembly.

Advantages:

• Durability: Built to last in tough industrial environments.
• Flexibility: Multiple mounting options and easy integration with control systems.
• Energy Efficiency: Pneumatic systems like this one are often more energy-efficient than their hydraulic counterparts.
• Cost-Effective: Pneumatic cylinders tend to be more affordable than other forms of linear actuators, such as electric actuators.

Conclusion:

The Techno SC125 X 200 Pneumatic Cylinder offers a reliable solution for industrial applications requiring controlled, linear motion with a moderate stroke length and powerful force generation. Its versatility, robust design, and various mounting options make it suitable for a wide range of operations in automation, manufacturing, and other industries.
