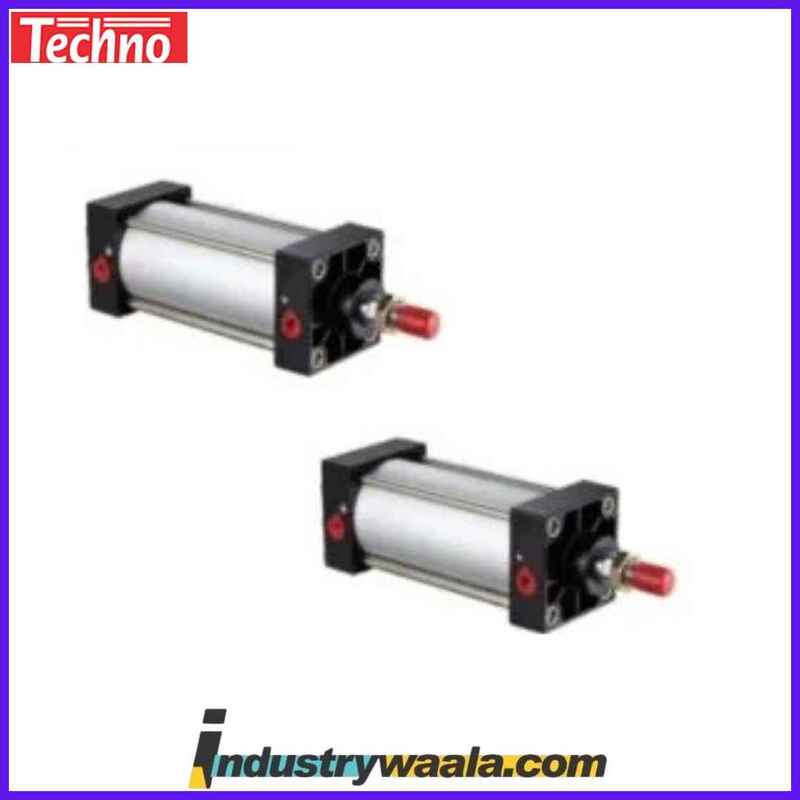

Techno SC125 X 250 Pneumatic Cylinder

The Techno SC125 X 250 Pneumatic Cylinder is a versatile and reliable double-acting actuator, designed to provide precise and efficient linear motion for medium-duty industrial applications. Featuring a 125mm bore and 250mm stroke, this pneumatic cylinder is ideal for applications where moderate force and medium-range travel are required. With robust construction, advanced sealing systems, and a variety of mounting options, the SC125 X 250 offers excellent performance in a wide range of environments, ensuring durability and minimal maintenance.

Key Features and Specifications:

1. Bore Size (125mm):
   • The 125mm bore of the SC125 X 250 allows for a substantial force output, making it ideal for tasks that require moderate force. This bore size strikes a balance between compact design and the ability to move heavy components, providing reliable and efficient performance.
2. Stroke Length (250mm):
   • With a 250mm stroke, the SC125 X 250 allows for medium-range linear motion, making it suitable for applications such as material handling, automation, and machine tooling, where tasks require moderate travel distances. The stroke length ensures enough travel for a variety of tasks while maintaining compactness in design.
3. Double-Acting Design:
   • The double-acting design of the SC125 X 250 allows the cylinder to operate using compressed air to extend and retract the piston in both directions. This ensures consistent movement in both forward and retraction strokes, ideal for applications that require bidirectional motion.
4. Durable Construction:
   • The SC125 X 250 is built with high-strength aluminum for the body and steel for the piston rod, providing the necessary durability to withstand heavy-duty use. This robust construction ensures that the cylinder is capable of handling high pressures, extended operational cycles, and demanding environments.
5. Advanced Sealing Technology:
   • The cylinder is equipped with high-performance seals that prevent air leakage, ensuring efficient operation. These seals are engineered for durability and are designed to perform well in harsh conditions, such as environments with dirt, dust, or moisture. The advanced sealing system helps maintain optimal performance and reduces maintenance needs.
6. Versatile Mounting Options:
   • The SC125 X 250 provides various mounting options, including foot mounting, flange mounting, and trunnion mounting, allowing it to be easily integrated into different systems and machinery. These mounting configurations offer flexibility, making it adaptable for a wide range of applications and installation requirements.
7. Adjustable Speed and Force Control:
   • The cylinder features adjustable speed and force control, enabling precise customization of motion characteristics. By adjusting the air pressure and using flow control valves, operators can fine-tune the cylinder’s movement, ensuring optimal performance for different tasks, such as lifting, pressing, or positioning.
8. Energy Efficiency:
   • The SC125 X 250 is designed to be energy-efficient, ensuring effective use of compressed air while minimizing operational costs. Efficient air consumption leads to reduced energy consumption, making this cylinder a cost-effective choice for applications where reliability and sustainability are important.
9. Clean and Dry Air Supply:
   • To achieve optimal performance, the SC125 X 250 requires clean, dry air. Moisture or contaminants in the air supply can damage internal components, reduce efficiency, and shorten the lifespan of the cylinder. Proper air filtration and moisture separation are recommended to ensure smooth operation and long-term durability.

Applications:

The Techno SC125 X 250 Pneumatic Cylinder is suitable for a wide range of industrial applications, including:

• Automation Systems: Ideal for use in automation processes where controlled linear motion is required for tasks such as positioning, lifting, or assembly. Its reliable movement and adjustable speed make it well-suited for precision work in automated production lines.
• Material Handling: This cylinder is commonly used in material handling systems, where it can move, position, or lift goods along conveyor systems or assembly lines. The moderate stroke length and force capacity make it perfect for handling medium-sized loads.
• Machine Tooling: The SC125 X 250 is often used in machine tooling applications for tasks such as clamping, moving workpieces, or positioning parts for machining. Its precise control over motion ensures that parts are handled securely and accurately.
• Packaging: In the packaging industry, this cylinder can be used for tasks such as positioning products, clamping packaging materials, or assisting with product filling and sealing processes. The adjustable speed and force control make it ideal for high-speed, precise packaging operations.
• Clamping and Positioning: The SC125 X 250 excels in clamping and positioning applications, where parts need to be held in place during assembly or machining. Its force control ensures that materials are clamped securely without causing damage to sensitive parts.

Maintenance and Care:

To ensure the Techno SC125 X 250 Pneumatic Cylinder remains in optimal condition, regular maintenance is recommended. The following practices will help extend the lifespan and maintain efficient operation:

• Seal Inspections: Regularly inspect the seals for wear or damage. If seals are found to be worn or leaking, replace them promptly to prevent air loss and maintain performance.
• Lubrication: While the cylinder is equipped with self-lubricating components, periodic lubrication may be necessary, especially in high-use environments. Lubricating moving parts helps reduce friction and wear, extending the life of the cylinder.
• Air Supply Quality: Ensure that the air supply is clean and dry, free from moisture or contaminants. Air filters and moisture separators should be used to maintain optimal air quality, reducing the risk of damage to internal components.
• Routine Inspections: Perform regular visual inspections of the cylinder for any signs of external damage, leaks, or wear. Early detection of issues will prevent larger problems from occurring and help maintain the cylinder’s performance.

Conclusion:

The Techno SC125 X 250 Pneumatic Cylinder is a versatile and reliable actuator designed for medium-duty industrial applications. With a 125mm bore and 250mm stroke, it offers optimal force and travel for tasks such as automation, material handling, machine tooling, and packaging. Its durable construction, advanced sealing technology, adjustable speed and force control, and energy-efficient design make it an excellent choice for a wide variety of industrial applications. The SC125 X 250 is built to deliver long-lasting, efficient performance with minimal maintenance, making it a valuable asset for any production environment.
