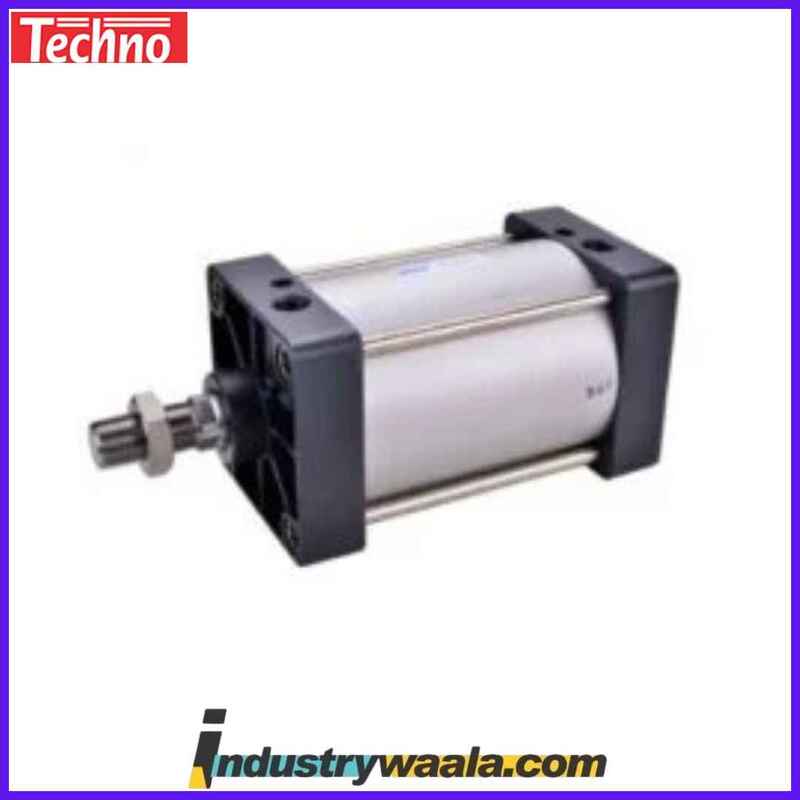

Techno SC125 X 350 Pneumatic Cylinder

The Techno SC125 X 350 Pneumatic Cylinder is a high-performance, double-acting pneumatic actuator designed to provide precise and controlled linear motion. With a 125mm bore and 350mm stroke, this cylinder is ideal for applications that require moderate to high force over a medium travel distance. Built to handle demanding industrial tasks, it combines strength, reliability, and smooth operation for applications in automation, material handling, machine tooling, and packaging. Its durable construction, advanced sealing technology, and adjustable speed and force controls ensure consistent, high-efficiency performance over an extended period.

Key Features and Specifications:

1. Bore Size (125mm):
   • The 125mm bore of the SC125 X 350 pneumatic cylinder provides a substantial force output while maintaining a compact design. This bore size makes it suitable for applications requiring significant force to move or position parts, whether for automation systems, machine tools, or material handling.
2. Stroke Length (350mm):
   • The 350mm stroke offers an ideal balance between travel distance and compactness, making it suitable for medium-range linear motion tasks. This stroke length enables the cylinder to perform tasks requiring moderate movement, such as positioning, clamping, and lifting.
3. Double-Acting Design:
   • The SC125 X 350 is a double-acting cylinder, which means that it uses compressed air to extend and retract the piston in both directions. This type of cylinder offers smooth, consistent motion, enabling it to provide equal force for both extending and retracting, making it versatile for a wide range of industrial applications.
4. Durable Construction:
   • Constructed from high-quality aluminum for the body and steel for internal components, the SC125 X 350 is built to withstand harsh working environments. This robust construction makes the cylinder resistant to wear, corrosion, and high pressure, ensuring longevity and minimal maintenance in demanding industrial settings.
5. Advanced Sealing Technology:
   • The cylinder features advanced sealing technology that minimizes the risk of air leakage, ensuring smooth and efficient piston movement. The seals are designed to resist wear, extend the service life of the cylinder, and maintain high performance even in dusty or dirty environments.
6. Versatile Mounting Options:
   • The SC125 X 350 is designed with versatile mounting options such as foot mounting, flange mounting, and trunnion mounting, allowing it to be easily integrated into various industrial systems. These mounting options provide flexibility for installation in different configurations depending on the specific application requirements.
7. Adjustable Speed and Force Control:
   • This pneumatic cylinder allows users to control the speed and force of movement using flow control valves and adjusting the air pressure. This adjustability makes it ideal for applications requiring fine-tuned motion, as it allows the cylinder to meet the specific requirements of different tasks.
8. Energy Efficiency:
   • The SC125 X 350 is designed to be energy-efficient, reducing air consumption while maintaining effective operation. This helps minimize operating costs, improve productivity, and reduce environmental impact, making it an ideal choice for energy-conscious applications.
9. Clean and Dry Air Supply:
   • To maintain optimal performance, the SC125 X 350 requires a clean, dry air supply. Contaminants or moisture in the air can cause wear and tear on the cylinder’s internal components, so it is important to ensure the air is filtered and free of contaminants to preserve the cylinder’s efficiency and longevity.

Applications:

The Techno SC125 X 350 Pneumatic Cylinder is versatile and can be used in a wide range of applications across various industries. Some of the most common uses include:

• Automation Systems: Perfect for moving or positioning components, adjusting machine settings, or performing repetitive tasks in automated systems. Its precise and controlled movement makes it ideal for robotic arms, conveyors, and automated assembly lines.
• Material Handling: In material handling systems, the SC125 X 350 can move or position heavy items with ease. It’s used in tasks such as pushing, lifting, and rotating materials along conveyors or assembly stations, enhancing productivity and efficiency.
• Machine Tooling: This cylinder is well-suited for machine tooling applications where precision and consistent force are required. It is often used in tasks such as clamping, positioning, or ejecting parts during manufacturing processes.
• Packaging: In packaging machinery, the SC125 X 350 can be employed for moving and positioning products, clamping materials, or filling containers. Its smooth and controlled motion is perfect for high-speed, high-precision tasks that are common in packaging lines.
• Clamping and Positioning: The SC125 X 350 is used in clamping applications, where it can precisely position workpieces during assembly or machining processes. The controlled motion and adjustable force help to ensure that the clamping is secure and accurate.

Maintenance and Care:

To ensure the Techno SC125 X 350 Pneumatic Cylinder continues to perform optimally, regular maintenance is essential. The following practices are recommended:

• Inspect Seals and Components: Regularly inspect the seals, piston rod, and cylinder body for signs of wear, damage, or leaks. Any air leakage or damage to the seals should be addressed promptly to maintain efficient operation.
• Lubrication: While the SC125 X 350 has some self-lubricating features, periodic lubrication is recommended in high-use or high-friction environments. Proper lubrication reduces wear and ensures smooth piston operation.
• Air Supply Maintenance: Make sure that the air supply to the cylinder is clean and dry. Moisture or contaminants in the compressed air can cause damage to the internal components. Use air filters and moisture separators to ensure that the air quality remains optimal.
• Routine Inspections: Conduct regular inspections to ensure that the cylinder is free from dirt, dust, or debris, which could impede its movement. Keeping the cylinder clean will help prevent wear and extend its operational life.

Conclusion:

The Techno SC125 X 350 Pneumatic Cylinder offers a reliable, high-performance solution for applications requiring precise and controlled medium-range linear motion. With a 125mm bore and 350mm stroke, it is ideal for industrial applications such as automation, material handling, machine tooling, and packaging. Its durable construction, advanced sealing system, and customizable speed and force controls make it an excellent choice for demanding environments. The SC125 X 350 provides exceptional performance, energy efficiency, and flexibility, ensuring that it meets the needs of a wide range of applications while minimizing operational costs and maintenance needs.
