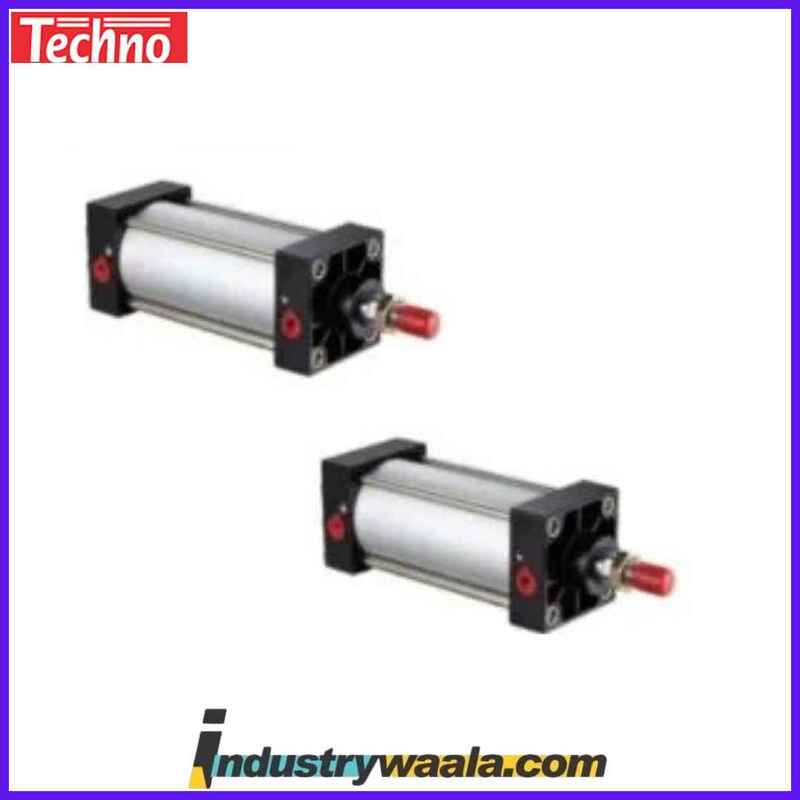

Techno SC125 X 400 Pneumatic Cylinder

The Techno SC125 X 400 Pneumatic Cylinder is a high-performance, double-acting pneumatic actuator designed for applications that require reliable, precise, and controlled linear motion. With a 125mm bore and 400mm stroke, this cylinder is ideal for medium-to-heavy-duty tasks where moderate to high force is needed over a medium-range travel distance. Its robust construction, advanced sealing technology, and versatility make it well-suited for a wide variety of industrial applications, including automation, material handling, machine tooling, and packaging systems. The SC125 X 400 ensures smooth, efficient operation and long-lasting durability in demanding environments.

Key Features and Specifications:

1. Bore Size (125mm):
   • The 125mm bore of the SC125 X 400 pneumatic cylinder offers a significant force output while maintaining a relatively compact design. This bore size is ideal for applications requiring substantial force to move or position components, making it suitable for medium- to heavy-duty tasks in industrial settings.
2. Stroke Length (400mm):
   • The 400mm stroke provides a moderate-range travel distance, allowing for controlled motion across medium distances. This stroke length is perfect for applications that require precise and consistent movement, including lifting, positioning, or clamping of components within an automation or material handling system.
3. Double-Acting Design:
   • The SC125 X 400 is a double-acting cylinder, meaning that it uses compressed air to extend and retract the piston in both directions. This ensures smooth, reliable motion in both the forward and retraction strokes, making it suitable for applications that require bidirectional movement.
4. Durable Construction:
   • Constructed from high-strength aluminum for the body and steel for internal components, the SC125 X 400 is designed to withstand the rigors of industrial environments. Its robust construction ensures resistance to wear, corrosion, and pressure, providing long-term reliability and reducing the need for frequent maintenance.
5. Advanced Sealing Technology:
   • The cylinder is equipped with advanced sealing systems that prevent air leakage and ensure efficient piston movement. These seals are engineered to last longer, maintain performance, and withstand harsh conditions, such as dust or contaminants, ensuring smooth operation in demanding environments.
6. Versatile Mounting Options:
   • The SC125 X 400 offers multiple mounting configurations such as foot mounting, flange mounting, and trunnion mounting, allowing it to be easily integrated into various systems. The flexible mounting options ensure that the cylinder can be adapted to different installation needs, whether in assembly lines, robotics, or material handling systems.
7. Adjustable Speed and Force Control:
   • The cylinder offers adjustable speed and force control, which enables users to customize the movement based on the specific requirements of the task. This is achieved by adjusting the air pressure and utilizing flow control valves, providing precise control over the motion, force, and speed of the cylinder.
8. Energy Efficiency:
   • The SC125 X 400 is designed to be energy-efficient, using compressed air more effectively to reduce operational costs and minimize waste. By optimizing air consumption, the cylinder helps improve productivity and lower energy bills while maintaining high performance.
9. Clean and Dry Air Supply:
   • For optimal operation, the SC125 X 400 requires a clean, dry air supply. Moisture and contaminants in the air can cause internal wear, reduce efficiency, and shorten the cylinder’s lifespan. Proper filtration and moisture separation are essential for maintaining the cylinder's performance and longevity.

Applications:

The Techno SC125 X 400 Pneumatic Cylinder is versatile and ideal for a variety of industrial applications, including:

• Automation Systems: The SC125 X 400 is well-suited for use in automated manufacturing systems where reliable, controlled motion is needed. It can perform tasks such as moving parts along assembly lines, positioning components, or executing repetitive motions in robotic systems.
• Material Handling: This cylinder is commonly used in material handling applications, such as moving large or heavy objects, lifting products, or positioning items along conveyor systems. Its reliable force and motion control make it perfect for high-volume handling operations.
• Machine Tooling: The SC125 X 400 is frequently employed in machine tooling applications to control the movement of heavy workpieces, position parts for machining, or perform repetitive tasks such as pressing or stamping. Its precision and power make it an excellent tool for industrial machinery.
• Packaging: In packaging systems, the SC125 X 400 can be used for positioning items, clamping materials, or performing other motions in high-speed packaging lines. Its precise movement and long stroke length make it perfect for accurate and repeatable operations in packaging processes.
• Clamping and Positioning: This cylinder is ideal for clamping and positioning operations, such as holding workpieces in place during assembly or machining processes. Its adjustable speed and force ensure that clamping is done securely without damaging the materials.

Maintenance and Care:

To ensure the Techno SC125 X 400 Pneumatic Cylinder performs at its best, regular maintenance is necessary. Below are some best practices to follow:

• Seal Inspections: Regularly check the seals and piston rod for any signs of wear or damage. Worn seals can lead to air leakage, reducing the cylinder's efficiency. Replacing seals as needed ensures the cylinder continues to perform at its best.
• Lubrication: While the SC125 X 400 has self-lubricating components, periodic lubrication may be necessary, especially in high-wear environments. Regular lubrication reduces friction, minimizes wear, and extends the life of the cylinder.
• Air Quality: Ensure that the air supplied to the cylinder is clean, dry, and free of contaminants. Moisture and particles can damage internal components, reducing the cylinder's lifespan. Use air filters and moisture separators to maintain optimal air quality.
• Routine Inspections: Conduct regular inspections to check for external damage, leaks, or wear. Early detection of potential issues helps prevent unexpected breakdowns and ensures consistent performance.

Conclusion:

The Techno SC125 X 400 Pneumatic Cylinder offers powerful, reliable performance for applications requiring precise, controlled medium-range linear motion. With its 125mm bore and 400mm stroke, it provides optimal force and travel distance for a wide range of industrial tasks such as automation, material handling, machine tooling, and packaging. The durable construction, advanced sealing technology, adjustable speed and force controls, and energy-efficient operation ensure that this cylinder delivers long-lasting, high-efficiency performance. Whether used in automated systems or high-precision clamping, the SC125 X 400 is a dependable solution for many industrial applications.
