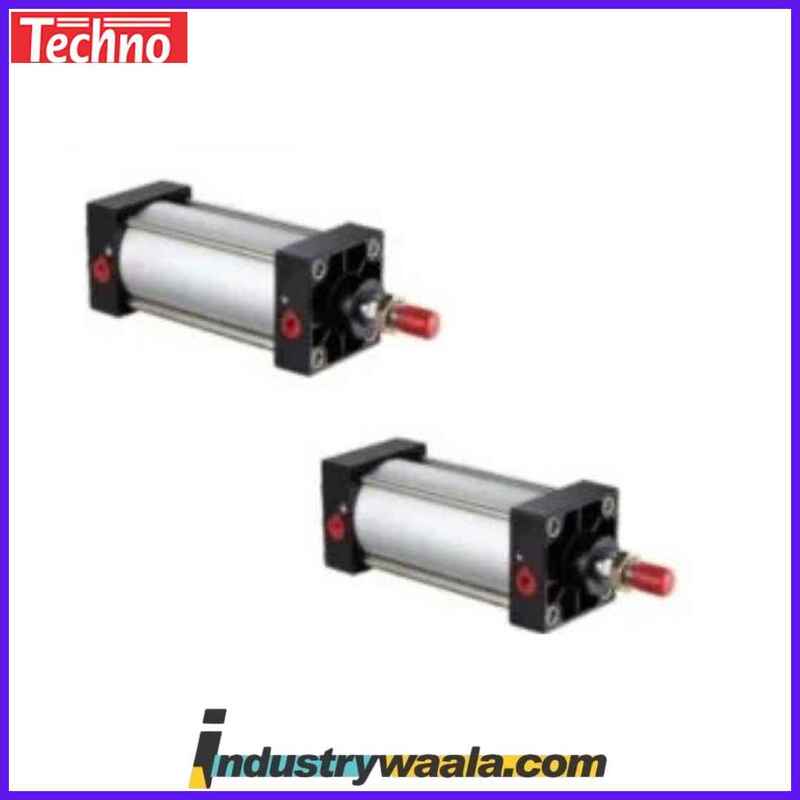

Techno SC125 X 600 Pneumatic Cylinder

The Techno SC125 X 600 Pneumatic Cylinder is a robust and high-performance double-acting actuator designed to provide precise, long-range linear motion. With a 125mm bore and 600mm stroke, this cylinder is well-suited for applications that require substantial force and extended travel. Its durable construction, advanced sealing technology, and versatile design make it ideal for use in demanding industrial environments such as automation, material handling, machine tooling, and packaging. The SC125 X 600 delivers consistent, reliable performance over a long travel range, ensuring smooth operation even in high-cycle and heavy-duty applications.

Key Features and Specifications:

1. Bore Size (125mm):
   • The 125mm bore of the SC125 X 600 pneumatic cylinder delivers a strong, efficient force output. The large bore ensures that the cylinder can handle medium to heavy-duty tasks, providing ample power for applications requiring substantial force in a relatively compact design.
2. Stroke Length (600mm):
   • The 600mm stroke offers a long-range of linear motion, making it ideal for applications that need extended travel. This longer stroke allows the cylinder to move objects or components over greater distances, making it suitable for large-scale systems or automated processes with significant movement requirements.
3. Double-Acting Cylinder:
   • As a double-acting cylinder, the SC125 X 600 uses compressed air to extend and retract the piston in both directions. This feature ensures that the cylinder operates smoothly and efficiently, with controlled motion in both directions, making it suitable for applications requiring both extension and retraction.
4. Durable Construction:
   • The SC125 X 600 is built from high-quality aluminum for the body and steel for internal components, ensuring a robust, corrosion-resistant structure. The materials used in the construction are selected to withstand harsh industrial environments, providing long-lasting performance even under heavy usage.
5. Advanced Sealing Technology:
   • The cylinder features an advanced sealing system that helps minimize air leakage and ensures smooth piston movement. The seals are designed to resist wear and contaminants, increasing the cylinder's reliability and lifespan, even in demanding applications.
6. Versatile Mounting Options:
   • The SC125 X 600 offers multiple mounting options such as foot mounting, flange mounting, and trunnion mounting, providing flexibility for installation. This versatility ensures that the cylinder can be easily integrated into various systems, whether on an assembly line, robotic arm, or automated material handling system.
7. Speed and Force Control:
   • The cylinder allows for adjustable speed and force control. By controlling the air pressure and utilizing flow control valves, users can fine-tune the cylinder’s motion, ensuring optimal speed and force for the specific requirements of each application.
8. Energy Efficiency:
   • The SC125 X 600 is designed to be energy-efficient, minimizing air consumption without compromising on performance. The cylinder operates with minimal energy loss, which helps reduce operational costs while maintaining high productivity.
9. Clean and Dry Air Supply:
   • The SC125 X 600 requires a clean, dry air supply for optimal operation. Contaminants or moisture in the compressed air can lead to wear or malfunction of internal components. Using appropriate filtration systems is essential to maintain the cylinder’s efficiency and extend its lifespan.

Applications:

The Techno SC125 X 600 Pneumatic Cylinder is well-suited for a variety of industrial applications that require long-range, controlled linear motion. Common applications include:

• Automation Systems: The SC125 X 600 is ideal for use in large-scale automated systems, where long-range linear motion is required for moving components, adjusting positioning, or carrying out repetitive tasks.
• Material Handling: This cylinder is used in material handling systems to move heavy or large items over long distances. It can position products on conveyors, load/unload items from machines, or move items across manufacturing lines.
• Machine Tooling: The cylinder is ideal for machine tooling applications where precise and controlled movement is necessary. The long stroke length allows it to move large workpieces or components accurately in machining, assembly, and production processes.
• Packaging Lines: In packaging systems, the SC125 X 600 can be used for moving, positioning, or clamping products over a long range. Its extended stroke allows it to handle items that require more significant travel or adjustment distances during the packaging process.
• Robotic Arms and Clamping Systems: The SC125 X 600 can also be used in robotic arms for precise positioning and movement of parts, or in clamping systems where extended travel is needed to securely hold components in place during assembly or manufacturing.

Maintenance and Care:

To ensure the Techno SC125 X 600 Pneumatic Cylinder operates at its best, regular maintenance is necessary:

• Seal Inspections: Regularly check the seals for wear or damage. Worn seals can lead to air leakage, reducing the cylinder's efficiency. Replacing seals as needed ensures the cylinder continues to perform smoothly.
• Lubrication: While the cylinder has some self-lubricating features, periodic lubrication may be required, especially in high-use environments. Proper lubrication reduces friction and wear, ensuring smooth operation and extending the cylinder’s lifespan.
• Air Quality: Ensure that the air supplied to the cylinder is clean, dry, and filtered. Moisture, dust, or oil contamination can damage internal components and reduce the cylinder’s performance. Use air filters and moisture separators to maintain optimal air quality.
• Routine Inspections: Conduct regular checks of the cylinder for any signs of damage or wear. This includes inspecting the piston rod, cylinder body, and seals for any external damage, cracks, or leakage. Early detection of issues helps prevent breakdowns and ensures smooth operation.

Conclusion:

The Techno SC125 X 600 Pneumatic Cylinder is a powerful, reliable solution for applications that require extended travel and controlled linear motion. With a 125mm bore and 600mm stroke, this cylinder provides precise, long-range movement, making it ideal for use in automation, material handling, machine tooling, and packaging. Its durable construction, advanced sealing system, and energy-efficient operation ensure reliable performance even in demanding environments. Whether used for positioning, moving large components, or clamping, the SC125 X 600 offers exceptional performance and longevity, making it an excellent choice for a variety of industrial applications.
