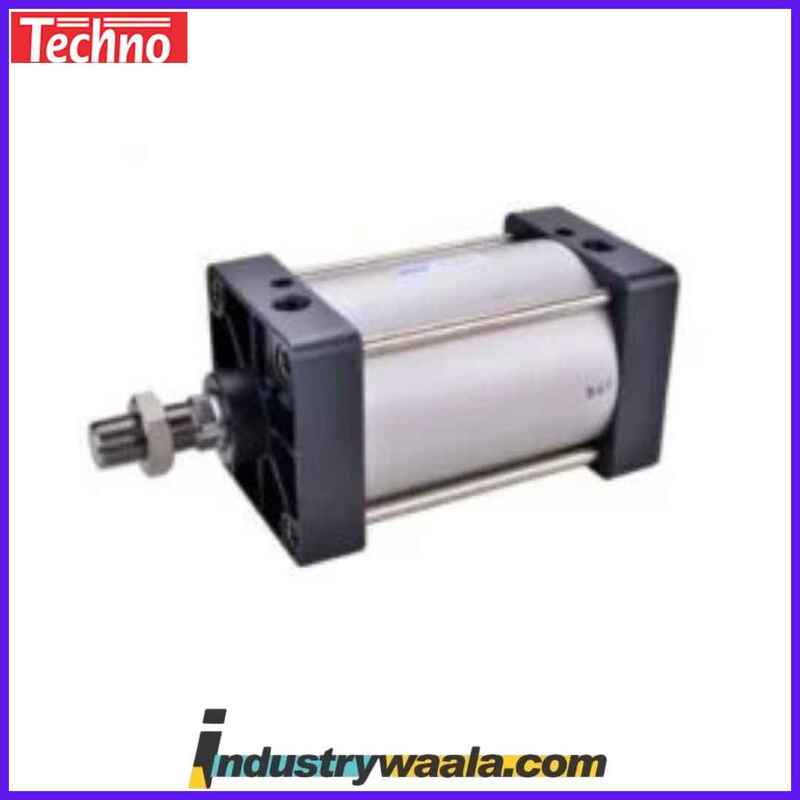

Techno SC160 X 100 Pneumatic Cylinder

The Techno SC160 X 100 Pneumatic Cylinder is a high-performance double-acting pneumatic actuator designed for industrial applications that require moderate stroke lengths and powerful linear motion. With a 160mm bore size and 100mm stroke length, this cylinder provides a strong, efficient solution for tasks requiring controlled motion in confined spaces. Its robust construction, reliable sealing system, and versatile mounting options make the SC160 X 100 a versatile and durable choice for a wide range of automation, material handling, and machine tooling applications.

Key Features and Specifications:

1. Bore Size (160mm):
   • The 160mm bore determines the internal diameter of the cylinder and directly influences its force output. A larger bore size means higher force, making the SC160 X 100 capable of handling heavy-duty tasks with ease. The 160mm bore size delivers a balance of power and efficiency for a wide range of applications, providing sufficient force for demanding tasks while maintaining a compact form.
2. Stroke Length (100mm):
   • The 100mm stroke represents the total linear movement of the piston inside the cylinder. The relatively short stroke length of 100mm makes the SC160 X 100 ideal for applications that require precise, controlled motion over a short distance. This stroke length allows for quick and efficient movement while maintaining accuracy, making it suitable for tasks like positioning, clamping, or handling small components.
3. Double-Acting Cylinder:
   • As a double-acting cylinder, the SC160 X 100 uses compressed air to both extend and retract the piston. Two air ports control the movement of the piston: one for extension and one for retraction. This feature ensures that the cylinder can operate in both directions, offering a smooth and reliable motion cycle for applications that require controlled movement in both directions.
4. Durable Construction:
   • Built from high-quality materials such as aluminum or steel, the SC160 X 100 is designed to withstand tough industrial conditions. Its robust construction ensures the cylinder can handle heavy-duty workloads, high temperatures, and exposure to various environmental factors like moisture and dust. The cylinder's durability ensures it can operate in demanding applications for extended periods with minimal maintenance.
5. Sealing System:
   • The SC160 X 100 is equipped with a high-performance sealing system that minimizes air leakage and maintains consistent internal pressure, ensuring smooth operation. The seals are designed for long-lasting performance, withstanding high pressure and wear over time. This sealing system ensures the cylinder performs efficiently without loss of power, reducing downtime and the need for frequent maintenance.
6. Mounting Options:
   • The SC160 X 100 offers a variety of mounting options, including foot mounting, flange mounting, and trunnion mounting, making it adaptable to different installation requirements. These mounting configurations allow the cylinder to be integrated seamlessly into various systems, whether on conveyors, robotic arms, or machine tools, enhancing its flexibility in application.
7. Air Supply and Control:
   • The SC160 X 100 operates using compressed air, with precise flow control mechanisms that allow users to adjust the cylinder’s speed, force, and direction. Air control valves are used to manage the flow rate, ensuring that the piston extends and retracts at the desired speed. This control over the flow rate enables users to fine-tune the cylinder’s performance for different tasks, improving both efficiency and precision.
8. Speed and Force Control:
   • The cylinder’s speed and force are fully adjustable via flow control valves, allowing the user to optimize performance for specific tasks. By controlling the airflow into the cylinder, operators can regulate the speed of extension and retraction as well as the force exerted during movement. This adjustability makes the SC160 X 100 ideal for tasks that require precise force control and movement speed.
9. Efficiency:
   • The SC160 X 100 is designed for energy efficiency, minimizing air consumption and maximizing the output. The smooth piston operation, coupled with high-quality seals and optimized air flow, ensures that the cylinder operates with minimal energy loss. This efficiency reduces operational costs, making the SC160 X 100 a cost-effective solution for a wide range of industrial applications.

Applications:

The Techno SC160 X 100 Pneumatic Cylinder is perfect for industrial tasks that require controlled, powerful motion within a short stroke length. Some of its ideal applications include:

• Automation Systems: In automation lines, this cylinder is used for tasks like positioning, pushing, and clamping parts with high accuracy and speed. The SC160 X 100’s short stroke is ideal for systems requiring quick, precise movements.
• Material Handling: In material handling systems, the cylinder can be used to lift, push, or move components over short distances, particularly in systems that require compact and efficient actuators.
• Machine Tooling: The SC160 X 100 can perform tasks such as component positioning, clamping, or adjustment in machine tools. Its precise, powerful movement makes it an ideal choice for manufacturing processes that need consistent performance.
• Packaging: In packaging machines, the SC160 X 100 is well-suited for tasks like moving or positioning products on production lines, as its short stroke and reliable actuation are perfect for high-speed packaging processes.
• Clamping and Positioning: The cylinder’s ability to provide controlled force makes it ideal for clamping tasks, where components need to be held in place with precise force over a short distance.

Maintenance and Care:

Maintaining the Techno SC160 X 100 Pneumatic Cylinder is essential for ensuring long-term, efficient performance:

• Seal Inspections: Regularly inspect the seals for wear or damage. Worn seals can lead to air leakage and reduced performance. Replacing seals when needed will prevent air loss and improve the lifespan of the cylinder.
• Lubrication: Although the cylinder is self-lubricating, periodic maintenance and lubrication may be necessary, particularly in environments with high usage. Proper lubrication reduces friction and extends the cylinder’s lifespan.
• Air Quality: Ensure the compressed air used is clean, dry, and free of contaminants. Air filters and dryers should be used to prevent dirt or moisture from entering the system, which can damage internal components and reduce cylinder efficiency.
• Regular Inspections: Perform routine inspections to check for any external damage, air leaks, or performance issues. Keeping an eye on wear and tear ensures the cylinder operates at peak performance and reduces the risk of breakdowns.

Conclusion:

The Techno SC160 X 100 Pneumatic Cylinder is a reliable, high-performance solution for industrial applications that require moderate force and short-range linear motion. With its 160mm bore size and 100mm stroke length, it provides efficient and precise movement for tasks like automation, material handling, machine tooling, and packaging. Its durable construction, versatile mounting options, and easy-to-control speed and force settings make it a great choice for a wide range of industries looking for dependable, compact pneumatic actuation.
