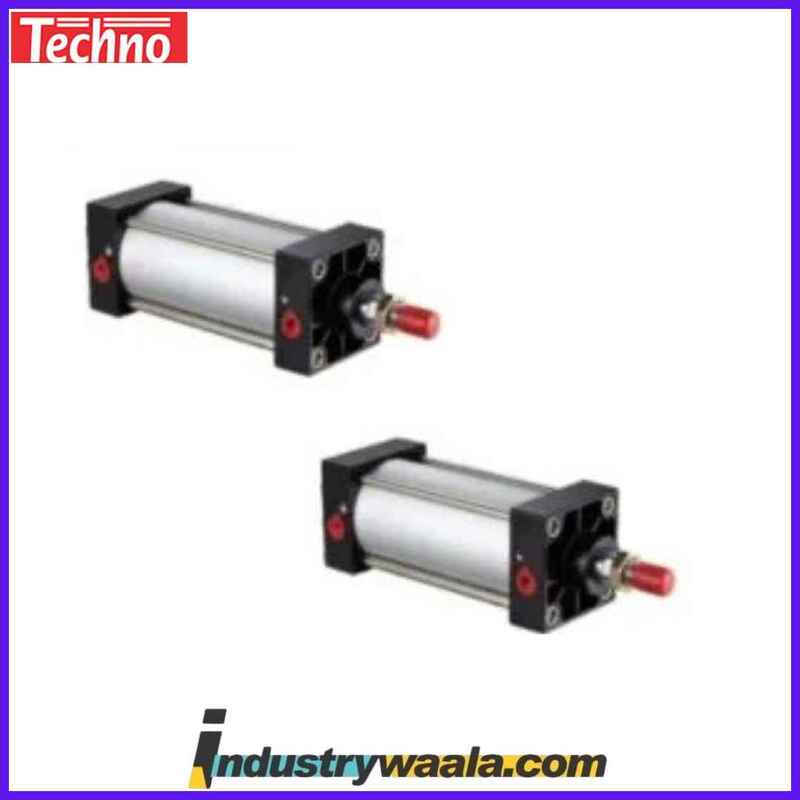

Techno SC160 X 160 Pneumatic Cylinder

The Techno SC160 X 160 Pneumatic Cylinder is a highly efficient and durable actuator designed for applications that require powerful and precise linear motion over a medium stroke length. With a 160mm bore size and a 160mm stroke length, this cylinder is engineered to deliver substantial force in a compact form factor, making it ideal for tasks that require controlled motion and high force in a relatively short range. Its robust design, versatile features, and ability to perform in various industrial environments make the SC160 X 160 a reliable solution for automation, material handling, and other industrial applications.

Key Features and Specifications:

1. Bore Size (160mm):
   • The 160mm bore is the internal diameter of the cylinder, determining the force that can be generated during operation. The larger the bore, the higher the force output. In the case of the SC160 X 160, the 160mm bore provides powerful actuation, capable of handling medium to heavy-duty tasks with ease. This makes the cylinder suitable for applications where significant force is required within a compact setup.
2. Stroke Length (160mm):
   • The 160mm stroke refers to the total linear movement the piston can travel inside the cylinder. This medium-range stroke is ideal for applications requiring precise control of shorter, but powerful, movements. The stroke length offers flexibility in scenarios where a compact actuator is needed without sacrificing force or performance.
3. Double-Acting Cylinder:
   • The SC160 X 160 is a double-acting pneumatic cylinder, meaning it uses compressed air to extend and retract the piston. Air is introduced into the cylinder’s two ports: one for the extension of the piston and another for its retraction. This double-acting design allows the cylinder to deliver consistent, controlled motion in both directions, offering greater versatility for various applications.
4. Durable Construction:
   • The SC160 X 160 is made from high-quality materials such as aluminum or steel, which ensures the cylinder’s durability and resistance to wear, corrosion, and environmental factors. These materials contribute to the strength of the cylinder while keeping it lightweight and easy to install. The construction is designed for longevity, withstanding the stresses of industrial operations for an extended period.
5. Sealing System:
   • The SC160 X 160 is equipped with high-performance seals that prevent air leakage, maintaining consistent internal pressure and ensuring efficient operation. These seals are designed to withstand wear and tear while ensuring smooth piston movement, contributing to reduced maintenance needs and improved operational reliability.
6. Mounting Options:
   • The cylinder offers multiple mounting options to accommodate various installation environments. Common configurations include foot mounting, flange mounting, and trunnion mounting, allowing users to install the cylinder in the most suitable orientation based on the needs of the application. These mounting options ensure easy integration with different machines, production lines, or robotic systems.
7. Air Supply and Control:
   • The SC160 X 160 operates using compressed air, with the flow controlled through valves to regulate the speed, direction, and force of the piston’s movement. Air control valves can be used to fine-tune the flow rate, allowing users to control the extension and retraction speeds, ensuring smooth operation. The cylinder’s operation is highly customizable based on the specific needs of the application.
8. Speed and Force Control:
   • The speed and force of the SC160 X 160 can be controlled by adjusting the air flow and pressure settings. This allows for precise control over the piston’s movement, making it ideal for applications that require varying speeds and forces. Flow control valves enable users to adjust the speed of both the extension and retraction cycles, ensuring optimal performance and efficiency.
9. Operational Efficiency:
   • The design of the SC160 X 160 ensures operational efficiency by minimizing air consumption and reducing friction within the cylinder. The high-quality seals and carefully engineered piston mechanisms ensure that the cylinder performs reliably without unnecessary wear or frequent maintenance. When paired with a clean, dry air supply, the cylinder can operate continuously with minimal downtime, offering a cost-effective solution for a range of industrial tasks.

Applications:

The Techno SC160 X 160 Pneumatic Cylinder is versatile and well-suited for a wide variety of industrial applications, particularly those requiring moderate force and precise linear motion within a short range:

• Automation Systems: Used in robotic arms, assembly lines, and pick-and-place systems, the cylinder provides reliable motion for tasks that require controlled movement over short distances.
• Material Handling: In material handling systems, this cylinder is ideal for tasks such as lifting, pushing, or positioning components on conveyors, sorting lines, or other material handling machinery.
• Machine Tooling: The SC160 X 160 is used in machine tools for precise movement, such as clamping, positioning, or adjusting parts during machining processes.
• Packaging: This pneumatic cylinder is well-suited for packaging machines, helping to move or position products during packaging, labeling, or sealing operations.
• Clamping and Positioning: The cylinder’s precise and powerful movement makes it ideal for clamping parts or positioning them accurately during assembly or testing processes.
• Assembly & Testing: In assembly lines or testing stations, the SC160 X 160 can be used to move, hold, or adjust components with high accuracy, ensuring precise assembly or testing of parts.

Maintenance and Care:

Regular maintenance of the Techno SC160 X 160 Pneumatic Cylinder ensures optimal performance and longevity. Key maintenance practices include:

• Seal Maintenance: Inspect the seals regularly for any signs of wear or damage. Worn seals can lead to air leakage and reduced efficiency. Replace seals as necessary to maintain optimal performance.
• Lubrication: Although the cylinder is generally self-lubricating, periodic lubrication may be needed in harsh environments or for extended use to reduce friction and wear, ensuring smooth piston movement.
• Air Quality: Ensure that the compressed air supply is clean, dry, and free from contaminants. Install air filters and dryers to prevent dirt, moisture, or oil from damaging the cylinder’s internal components.
• Regular Inspections: Perform periodic inspections of the cylinder to check for any external damage, wear, or air leakage. Inspect air ports, seals, and mounting components to ensure the cylinder operates correctly.

Conclusion:

The Techno SC160 X 160 Pneumatic Cylinder is a reliable and efficient solution for applications requiring powerful and precise linear motion within a medium-range stroke. Its 160mm bore size and 160mm stroke length provide the right balance of force and movement for a variety of tasks, from automation and material handling to machine tooling and packaging. With its durable construction, efficient sealing system, and ease of control, the SC160 X 160 delivers high performance and longevity, making it a valuable component for demanding industrial operations.
