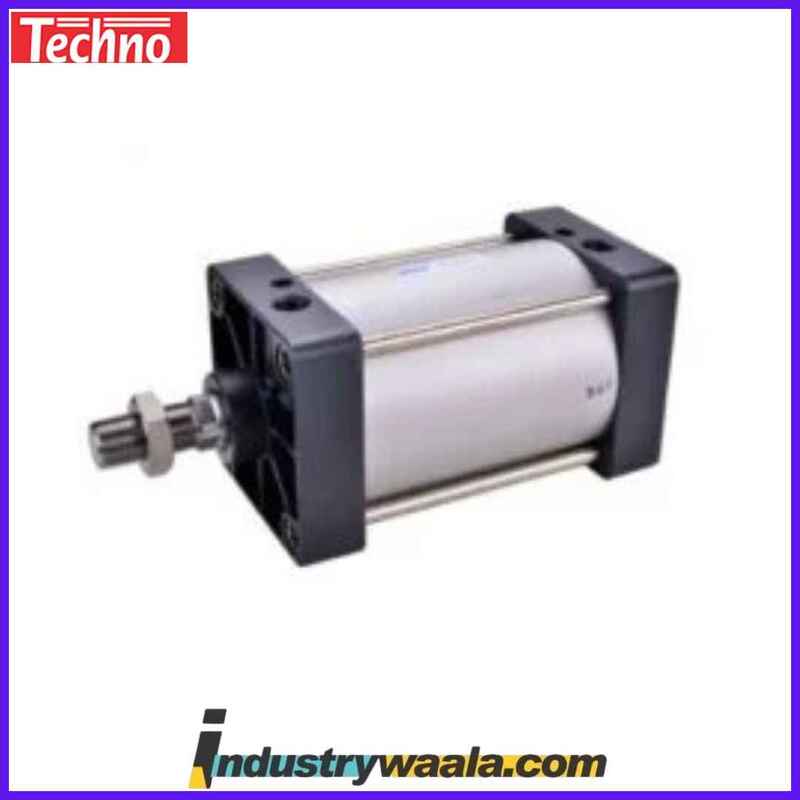

Techno SC160 X 25 Pneumatic Cylinder

The Techno SC160 X 450 Pneumatic Cylinder is a type of pneumatic actuator used in various industrial applications, typically designed to convert compressed air into mechanical motion. Here's a detailed description of the key features and specifications:

Key Features of Techno SC160 X 450 Pneumatic Cylinder:

1. Bore Size (SC160):
   • The "160" in the model name refers to the bore size of the cylinder. This means that the internal diameter of the cylinder is 160 millimeters, which directly impacts the force that the cylinder can generate. The larger the bore, the more force can be applied.
2. Stroke Length (X 450):
   • The "450" refers to the stroke length of the cylinder, which is 450 millimeters. The stroke length is the distance the piston moves inside the cylinder. This determines how far the cylinder can extend and retract to complete its task.
3. Pneumatic Operation:
   • This pneumatic cylinder operates using compressed air. The air pressure drives the piston inside the cylinder, creating linear motion (either extending or retracting).
4. Double-Acting:
   • Typically, the SC160 X 450 would be a double-acting cylinder, meaning it has two ports—one for air intake to extend the piston and one for air intake to retract it. This allows the cylinder to be powered in both directions.
5. High Efficiency:
   • The cylinder is designed for efficient operation in industrial applications where air-powered movement is required. Pneumatic cylinders like this one are used in machines, automation equipment, and production lines.
6. Construction:
   • These cylinders are generally made from high-quality materials to withstand wear, corrosion, and pressure. Often, they feature aluminum or steel bodies and components that ensure durability and long operational life.
7. Mounting Options:
   • Pneumatic cylinders like the Techno SC160 X 450 usually come with various mounting configurations such as foot mounting, flange mounting, or trunnion mounting. This provides flexibility in installation depending on the application.
8. Seals:
   • The cylinder features high-quality seals to ensure that the pneumatic system operates efficiently without air leakage, maintaining optimal pressure levels inside the cylinder.
9. Application:
   • The Techno SC160 X 450 is used in many applications such as automation systems, material handling, robotics, packaging machines, and automotive production lines. It is ideal for heavy-duty tasks requiring extended stroke lengths and high forces.
10. Speed and Control:
    • The speed of the cylinder can be controlled by regulating the flow of compressed air entering and leaving the cylinder, ensuring precise motion for applications that require accuracy and control.

Applications:

• Industrial Automation: Used in automated systems for moving heavy objects, controlling assembly lines, and providing linear motion for mechanical processes.
• Material Handling: Often used for lifting, pushing, or pulling materials in warehouses or production environments.
• Machine Tooling: Assists in the precise movement of tools, such as during machining or cutting processes.
• Packaging: In packaging lines, pneumatic cylinders can control the movement of items into packaging machines or onto conveyors.

Maintenance Tips:

• Regular inspection of the seals and gaskets to prevent air leakage.
• Ensuring that the cylinder is kept clean from dirt or debris that might interfere with the piston’s movement.
• Checking air supply quality to ensure no moisture or contaminants are entering the cylinder, as this can damage internal components over time.

Conclusion:

The Techno SC160 X 450 Pneumatic Cylinder is a powerful and reliable solution for a wide variety of industrial applications. Its large bore size (160mm) and stroke length (450mm) provide substantial force and reach, making it ideal for tasks requiring significant mechanical movement. The cylinder's design and construction ensure durability, efficiency, and ease of use in automation and heavy-duty environments.
