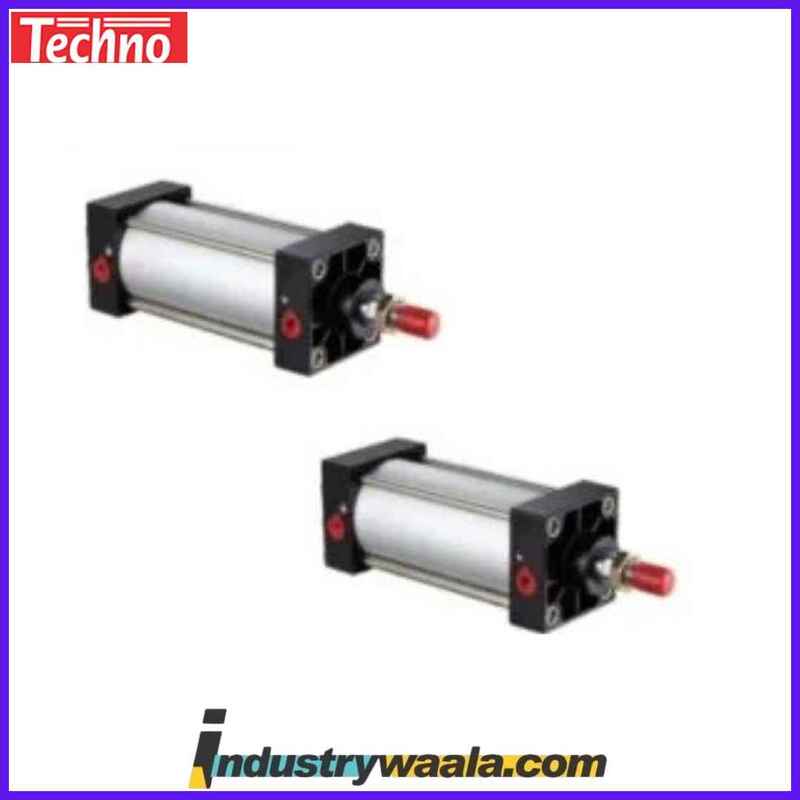

Techno SC160 X 250 Pneumatic Cylinder

The Techno SC160 X 250 Pneumatic Cylinder is a highly efficient and robust pneumatic actuator designed for applications that require controlled and powerful linear motion. Featuring a 160mm bore size and a 250mm stroke length, this cylinder is engineered to provide substantial force over a medium-range distance, making it ideal for a wide variety of industrial tasks. Whether used in automation, material handling, machine tooling, or packaging, the SC160 X 250 offers reliable, high-performance actuation in demanding environments where precise control and durability are essential.

Key Features and Specifications:

1. Bore Size (160mm):
   • The 160mm bore refers to the internal diameter of the cylinder, which directly impacts the amount of force it can generate. This large bore allows the cylinder to produce substantial force, making it ideal for heavy-duty tasks requiring strong actuation. The large bore is perfect for applications like pushing, pulling, lifting, or clamping heavy loads, ensuring that the cylinder can perform demanding jobs with ease.
2. Stroke Length (250mm):
   • The 250mm stroke represents the maximum distance the piston travels inside the cylinder. With a medium stroke length, the SC160 X 250 provides the flexibility needed for a variety of tasks that require moderate movement. This stroke length is versatile, allowing the cylinder to be used in systems where a medium-range linear movement is required without taking up excessive space, making it ideal for machines or systems with limited room for larger actuators.
3. Double-Acting Cylinder:
   • The Techno SC160 X 250 is a double-acting pneumatic cylinder, meaning it uses compressed air to extend and retract the piston. With two air ports—one for extending the piston and one for retracting it—this design allows for bidirectional motion, providing greater flexibility and control in applications that need back-and-forth movement. Double-acting cylinders offer efficient operation by utilizing the power of compressed air in both directions.
4. Durable Construction:
   • Constructed from high-quality materials like aluminum or steel, the SC160 X 250 is built to withstand the rigors of industrial environments. The cylinder’s design ensures it is lightweight yet strong, offering a high strength-to-weight ratio. Its robust construction ensures that it can endure harsh conditions such as high pressure, vibration, and exposure to contaminants without compromising its functionality.
5. Sealing System:
   • Equipped with high-quality seals, the SC160 X 250 ensures minimal air leakage and effective maintenance of internal pressure. The seals are designed to withstand wear and tear, providing long-lasting protection and efficiency. Efficient seals contribute to a smooth, continuous operation while reducing the likelihood of air loss, which could otherwise compromise performance.
6. Mounting Options:
   • The Techno SC160 X 250 comes with various mounting options, such as foot mounting, flange mounting, or trunnion mounting, making it adaptable to a wide range of installation configurations. These flexible mounting choices allow for easy integration into various types of machinery, equipment, and production lines, offering flexibility and convenience during setup.
7. Air Supply and Control:
   • The SC160 X 250 operates using compressed air, which enters the cylinder through designated ports to move the piston. Air flow is controlled using valves, which can adjust the speed and force of the piston’s movement. Flow control valves can be installed to regulate the air entering and exiting the cylinder, providing smooth and precise motion for tasks that require specific movement characteristics.
8. Speed and Force Control:
   • The speed and force of the cylinder's motion can be easily controlled by adjusting the air flow. By using flow control valves or pressure regulators, users can fine-tune the speed of both the extension and retraction of the piston, as well as the force applied during each stroke. This flexibility makes the SC160 X 250 ideal for applications where different speed and force profiles are necessary for optimal operation.
9. Efficiency:
   • The SC160 X 250 is designed for high efficiency in operation. With a simple yet effective design, the cylinder operates smoothly, reducing the need for frequent maintenance. Its efficient air usage and well-designed sealing system contribute to minimal downtime, making it a reliable component for continuous industrial operations.

Applications:

The Techno SC160 X 250 Pneumatic Cylinder is versatile and well-suited for a broad range of industrial applications, especially those requiring medium-range stroke and powerful actuation:

• Automation Systems: Used in robotics, assembly lines, and pick-and-place applications, the cylinder helps in performing repetitive tasks that require controlled, high-force linear motion.
• Material Handling: The SC160 X 250 is ideal for use in conveyors, sorting systems, and material handling equipment, providing forceful movement to position, push, or lift products.
• Machine Tooling: Perfect for machine tools and presses, this pneumatic cylinder can assist with tasks like part positioning, clamping, or actuating other machine components with precision.
• Packaging: This cylinder can be used in packaging machines to perform operations like product pushing, clamping, or fine adjustments during the packaging process.
• Clamping and Positioning: With its powerful force and medium stroke, the SC160 X 250 is ideal for clamping parts or positioning workpieces accurately in assembly, testing, or machining operations.
• Testing and Quality Control: In testing environments, the cylinder can be used to position test samples, apply controlled forces, or provide adjustments during measurement or calibration processes.

Maintenance and Care:

To ensure that the Techno SC160 X 250 Pneumatic Cylinder operates optimally and has a long lifespan, regular maintenance and care are essential:

• Seals and Lubrication: The seals should be inspected regularly for any signs of wear, and lubrication should be applied as necessary to reduce friction and maintain smooth operation. Regular inspection and replacement of damaged seals will help prevent air leakage and ensure efficient operation.
• Air Quality: Ensure that the compressed air used is clean, dry, and free from contaminants. Installing filters and air dryers will protect the cylinder from damage and ensure consistent performance.
• Regular Inspection: Periodically check the cylinder for external damage or signs of wear, and ensure that all mounting components are secure. Additionally, inspect the air ports and flow control valves for any blockages or issues.
• Flow Control: Regularly check and adjust the flow control valves to ensure that the cylinder’s speed and force are set correctly for the desired application. This will help maintain precision and reliability.

Conclusion:

The Techno SC160 X 250 Pneumatic Cylinder is a versatile, reliable, and efficient solution for industrial applications that require powerful linear motion with a medium-range stroke. Its 160mm bore size and 250mm stroke length provide a balance between force and movement, making it ideal for tasks ranging from automation and material handling to machine tooling and packaging. With its durable construction, efficient sealing system, and flexibility in mounting and control, the SC160 X 250 is designed to meet the demands of modern industrial environments while ensuring high performance, minimal downtime, and long-lasting service.
