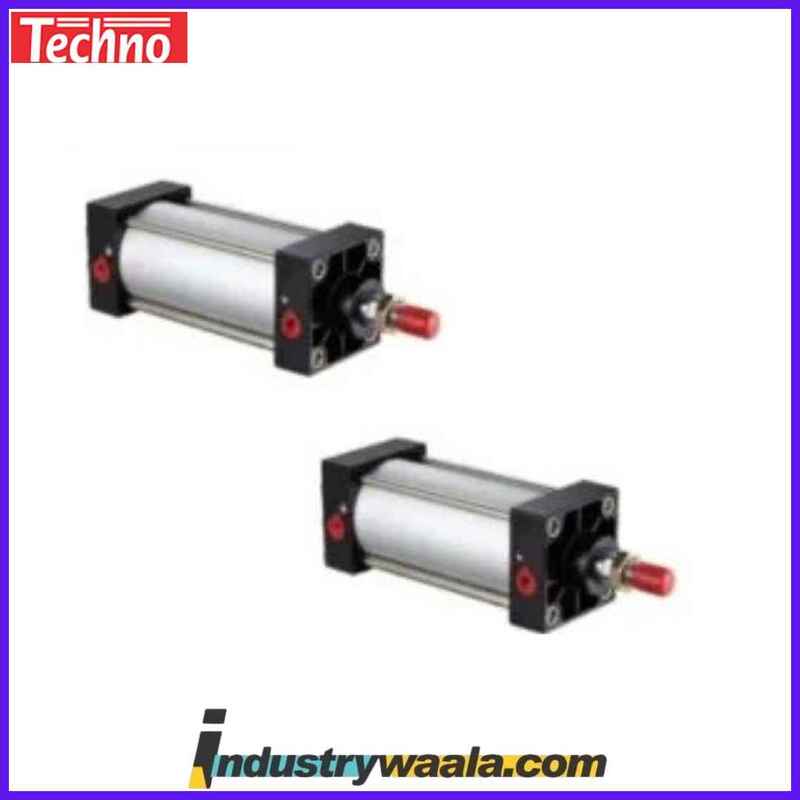

Techno SC160 X 300 Pneumatic Cylinder

The Techno SC160 X 300 Pneumatic Cylinder is a high-performance actuator designed for industrial applications that require precise and powerful linear motion. Featuring a 160mm bore size and a 300mm stroke length, this pneumatic cylinder is built to handle moderate to heavy-duty tasks where a substantial force is needed over a medium-range distance. It is ideal for automation systems, material handling, and various other mechanical operations that demand efficiency, reliability, and flexibility.

Key Features and Specifications:

1. Bore Size (160mm):
   • The 160mm bore indicates the internal diameter of the cylinder, which plays a crucial role in determining the force output. The larger the bore, the higher the potential force that can be generated when compressed air is introduced. In this case, the 160mm bore provides substantial power, making the SC160 X 300 suitable for demanding industrial applications where significant force is required.
2. Stroke Length (300mm):
   • The 300mm stroke represents the total linear movement that the piston inside the cylinder can travel. This medium-range stroke length is well-suited for applications that need substantial but not excessive movement. It is long enough to handle a variety of tasks like shifting, pushing, pulling, and clamping, while maintaining a compact size for space-constrained setups.
3. Double-Acting Cylinder:
   • The SC160 X 300 is typically a double-acting pneumatic cylinder, which means it is designed to operate in both directions using compressed air. It has two air ports: one for air intake to extend the piston and one for air intake to retract the piston. This design allows for versatile and controlled motion in both directions, making it ideal for applications that require back-and-forth movement.
4. Durable Construction:
   • The cylinder is built from high-quality materials, such as aluminum or steel, ensuring long-lasting durability and resistance to wear and environmental factors. These materials are selected to provide the necessary strength while keeping the cylinder lightweight. The robust construction ensures that the cylinder can withstand high-pressure environments and heavy-duty applications.
5. Seals and Efficiency:
   • The Techno SC160 X 300 comes equipped with high-quality seals that prevent air leakage, ensuring the cylinder operates efficiently and maintains optimal internal pressure. The sealing system is designed to minimize friction, allowing smooth piston movement while reducing energy consumption and wear. The cylinder’s design promotes efficient air usage, helping to keep operational costs down.
6. Mounting Options:
   • The Techno SC160 X 300 offers a variety of mounting configurations, allowing it to be adapted to different machinery setups. These can include foot mounting, flange mounting, or trunnion mounting. The versatile mounting options make it suitable for a wide range of installation environments, from robotic arms to conveyor systems, ensuring flexibility in industrial systems.
7. Air Supply and Control:
   • The pneumatic cylinder operates using compressed air. To control the speed, force, and direction of the piston, flow control valves are used to regulate the air entering and exiting the cylinder. This allows for fine adjustments of the cylinder's performance, making it suitable for both delicate and powerful tasks, depending on the requirements of the application.
8. Speed Control:
   • The speed of the cylinder's movement can be regulated by adjusting the airflow. Flow control valves can be installed at the inlet or exhaust ports to modify the air flow rate, allowing users to control the cylinder’s extension and retraction speeds. This helps achieve smooth, controlled motion, which is critical in applications requiring precision and accuracy.
9. Operational Efficiency:
   • The SC160 X 300 is designed for efficient operation in industrial settings, ensuring reliable performance over long periods of time. When paired with high-quality air filtration systems, the cylinder can operate without frequent maintenance, offering a cost-effective solution for continuous operations.

Applications:

The Techno SC160 X 300 Pneumatic Cylinder is versatile and ideal for a variety of industrial applications where moderate to heavy force and medium-range linear motion are required:

• Automation Systems: The cylinder can be used in industrial automation systems for tasks like robotic arms, pick-and-place operations, and assembly lines, where accurate and powerful movement is essential.
• Material Handling: In material handling systems, this cylinder is used for tasks such as lifting, pushing, pulling, or positioning heavy items on conveyors, packaging lines, or sorting systems.
• Machine Tooling: The SC160 X 300 is ideal for use in machine tooling applications, providing reliable, precise linear motion for CNC machines, presses, or other mechanical equipment requiring force for positioning or clamping.
• Packaging: The cylinder can be used in packaging machinery to push, pull, clamp, or adjust products during the packaging process, ensuring smooth and efficient handling of goods.
• Clamping & Positioning: The 300mm stroke is suitable for clamping applications where a strong, controlled force is required to hold parts in place or position them during machining, assembly, or testing.
• Testing & Assembly: It can also be used in testing stations or assembly lines to actuate presses, hold parts in place, or provide controlled motion for various tasks.

Maintenance and Care:

To ensure the Techno SC160 X 300 Pneumatic Cylinder continues to perform optimally, regular maintenance and care are necessary:

• Regular Inspection: Periodically check the cylinder for signs of wear, damage, or leaks. Inspect seals and components to ensure that the cylinder remains efficient and reliable.
• Air Quality: Ensure that the compressed air supplied to the cylinder is clean and dry. Use filters and air dryers to remove moisture, dust, and contaminants that could damage the cylinder and reduce performance.
• Lubrication: Proper lubrication is key to reducing friction between moving parts. While pneumatic cylinders are generally self-lubricating, periodic checks and lubrication may be required, especially in harsh operating environments.
• Seal Integrity: Check the seals regularly for wear or damage. Replacing worn-out seals promptly can prevent air leakage and ensure that the cylinder maintains optimal pressure and performance.

Conclusion:

The Techno SC160 X 300 Pneumatic Cylinder is a powerful and efficient pneumatic actuator designed for industrial use. With a 160mm bore and 300mm stroke, it strikes an excellent balance between force output and stroke length, making it ideal for a wide range of applications requiring precise and reliable linear motion. Its durable construction, efficient sealing system, and versatility in mounting options ensure long-lasting, high-performance operation in various industries, including automation, material handling, machine tooling, and packaging. Whether it's controlling heavy-duty movements or executing precise tasks, the SC160 X 300 delivers reliability and efficiency for demanding industrial environments.
