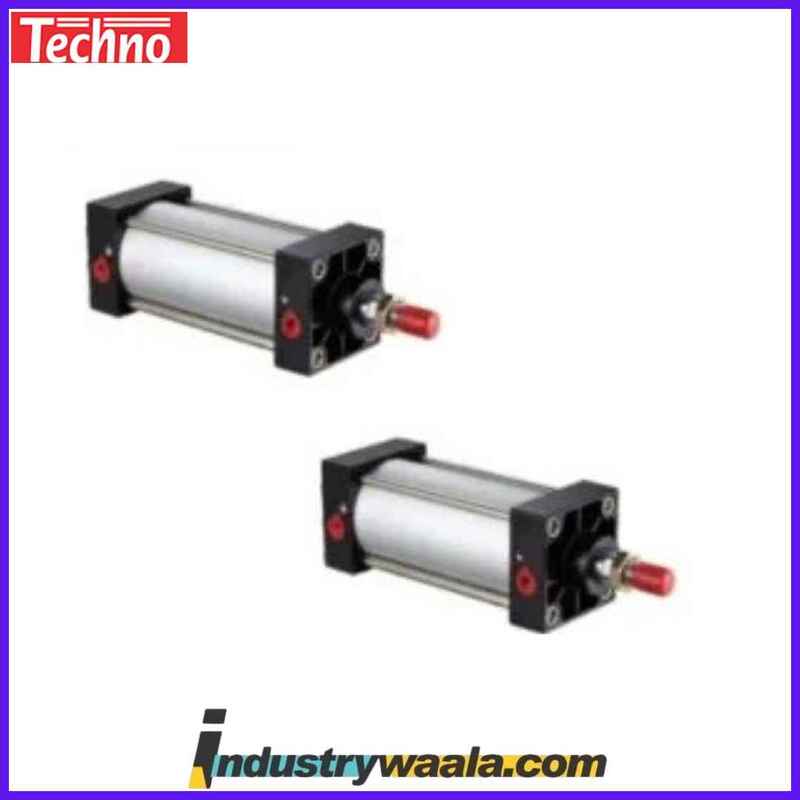

Techno SC80 X 300 Pneumatic Cylinder

The Techno SC80 X 300 Pneumatic Cylinder is a double-acting actuator designed for industrial applications requiring reliable and efficient linear motion. With an 80 mm bore and a 300 mm stroke, it offers substantial force and long-range movement in a relatively compact design. This cylinder is engineered to deliver high performance and precision in a wide range of applications, including material handling, robotic automation, clamping, and more.

Key Features:

1. Bore Size: 80 mm
   • The 80 mm bore provides a high force output, ideal for tasks requiring moderate to heavy-duty performance while maintaining a balanced size.
2. Stroke Length: 300 mm
   • The 300 mm stroke allows for extended linear movement, making this cylinder suitable for applications that demand longer travel distance, such as positioning, pressing, and assembly tasks.
3. Double-Acting Operation
   • The SC80 X 300 cylinder is a double-acting design, using compressed air to extend and retract the piston. This bi-directional motion provides consistent power in both directions, ensuring reliable and accurate control.
4. Durable Construction
   • Constructed with anodized aluminum for the body and a stainless steel piston rod, the SC80 X 300 is built to resist wear and corrosion, ensuring long-term durability in tough environments.
5. High-Performance Sealing System
   • The cylinder features a high-quality sealing system that minimizes air leakage and friction, providing smooth operation while reducing wear. The seals are also designed to protect internal components from contaminants, ensuring longevity and reliability.
6. Pressure and Temperature Range
   • The SC80 X 300 operates effectively within a 1-10 bar pressure range and supports a temperature range from -10°C to 80°C, making it versatile and capable of functioning in diverse industrial conditions.
7. Adjustable Speed Control
   • The cylinder includes adjustable speed controls, allowing the user to fine-tune the extension and retraction speeds, providing precise control over movement and ensuring smooth operation during automated tasks.
8. Multiple Mounting Options
   • The SC80 X 300 offers multiple mounting configurations, such as flange, trunnion, and foot mounts, allowing for easy integration into various systems and installations.

Applications:

1. Material Handling Systems
   • The SC80 X 300 is well-suited for automated material handling, conveyor systems, and pick-and-place operations, where precise, long-range movements are essential for efficient material transfer.
2. Robotic Automation
   • Ideal for robotic arms and gripping mechanisms, this cylinder’s long stroke and reliable force output make it perfect for robotic automation systems that require extended travel and precision control.
3. Pressing and Clamping
   • The SC80 X 300 is ideal for pressing, clamping, and assembly tasks, particularly in industries like automotive, metalworking, and packaging, where significant force is needed for pressing and securing materials.
4. Positioning Systems
   • The long stroke allows the cylinder to be used in positioning systems, where accurate and repeatable movement is necessary for tasks such as CNC machining, alignment, and measuring systems.
5. Testing and Inspection Equipment
   • Due to its precise motion and durability, the SC80 X 300 is a reliable choice for testing and inspection systems that require repeatable linear movement over extended distances.

Advantages:

1. High Force and Long Stroke: The 80 mm bore and 300 mm stroke allow the cylinder to generate substantial force while offering extended linear travel, making it versatile for heavy-duty and long-range applications.
2. Compact Design for Heavy-Duty Use: Despite its long stroke, the SC80 X 300 maintains a compact profile, allowing it to fit into systems where space may be constrained but high performance is required.
3. Smooth Operation and Precise Control: The adjustable speed control provides precise movement control, making the cylinder ideal for applications that require smooth, controlled linear motion.
4. Durability and Longevity: Made with anodized aluminum and stainless steel, the SC80 X 300 is resistant to corrosion and wear, ensuring a long service life, even in demanding industrial environments.
5. Energy Efficient: The low-friction seals and high-performance design ensure the cylinder operates efficiently, with minimal air leakage and energy consumption, leading to lower operational costs.
6. Flexible Integration: With multiple mounting options, the cylinder can be integrated into a variety of setups, offering versatility for different mechanical systems and applications.

Maintenance:

1. Lubrication: Regular lubrication of the piston rod and internal components is important for smooth operation and to prevent wear. Ensure the lubricant is compatible with the operating environment.
2. Sealing System Inspection: The sealing system should be checked periodically for wear or damage. Replace seals as necessary to maintain optimal performance and avoid air leaks.
3. Air Quality Maintenance: To prevent contamination and damage to internal parts, ensure that the compressed air supply is clean and free from moisture.
4. Pressure Monitoring: The cylinder should be operated within the recommended pressure range (1-10 bar) to prevent overloading and ensure efficient performance.

Conclusion:

The Techno SC80 X 300 Pneumatic Cylinder is a powerful and durable solution for industrial applications requiring long-range linear motion. Its 80 mm bore and 300 mm stroke provide both force and extended travel, making it ideal for tasks such as material handling, robotic automation, and pressing. With its durable construction, adjustable speed control, and versatile mounting options, the SC80 X 300 is built to offer high performance, efficiency, and reliability in a wide variety of industrial environments.
