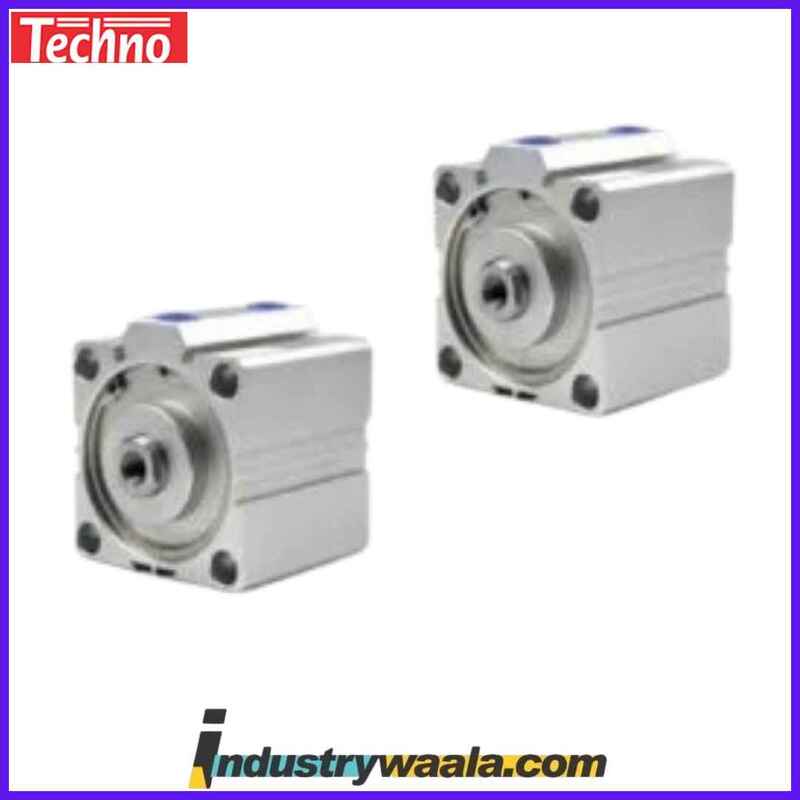

Techno SDA100 X 80F Pneumatic Cylinder

The Techno SDA100 X 80F Pneumatic Cylinder is a high-capacity, double-acting pneumatic actuator designed for heavy-duty applications that require high force output and long stroke length. With a 100 mm bore size and 80 mm stroke length, this cylinder is ideal for applications where powerful, reliable actuation is necessary. It is commonly used in industrial automation, robotics, material handling, and machinery applications.

This cylinder features a robust construction, with a high-strength anodized aluminum body that provides excellent corrosion resistance and long-term durability in harsh industrial environments. The stainless steel piston rod offers wear resistance and abrasion resistance, ensuring that the cylinder maintains its performance even under heavy-duty conditions. The advanced sealing technology reduces air leakage, leading to greater energy efficiency, while also minimizing maintenance needs. Additionally, the SDA100 X 80F cylinder includes adjustable speed controls, allowing for fine-tuned control over the extension and retraction speeds for smooth operation.

Key Features:

1. Bore Size: 100 mm
   • Provides the necessary high force generation for large, demanding applications where substantial actuation power is required.
2. Stroke Length: 80 mm
   • The 80 mm stroke allows for greater linear displacement, making it ideal for systems that require longer movement or positioning over a larger distance.
3. Double-Acting Design
   • The double-acting mechanism enables actuation in both directions, ensuring consistent and reliable motion for both extension and retraction.
4. Durable Construction
   • Made with an anodized aluminum body and a stainless steel piston rod, this cylinder is built to withstand abrasion, wear, and corrosion, ensuring a long lifespan in industrial environments.
5. Advanced Sealing System
   • The advanced sealing system reduces air leakage, which improves energy efficiency, reduces operational costs, and minimizes the need for frequent maintenance.
6. Adjustable Speed Control
   • The adjustable speed control allows precise adjustments to the extension and retraction speeds, providing smoother operation and enhancing system performance.
7. Pressure Range
   • This cylinder operates effectively within a pressure range of 1 to 10 bar (14.5 to 145 psi), making it compatible with most standard pneumatic systems.
8. Temperature Range
   • It is designed to function in a temperature range from -10°C to 80°C (14°F to 176°F), ensuring reliability in diverse operational conditions.
9. Mounting Flexibility
   • The SDA100 X 80F offers multiple mounting options, making it versatile and easy to integrate into various systems such as robotic arms, conveyor systems, and automated machinery.

Applications:

• Industrial Automation: Ideal for heavy-duty automation systems requiring powerful actuation for material handling, assembly lines, or automated manufacturing processes.
• Robotics: Suitable for robotic systems where high force and precise motion are needed, particularly in robotic arms or gripper mechanisms handling heavy or large components.
• Material Handling: The cylinder is used in material handling systems to position or move large or heavy objects with precision.
• Automated Machinery: The cylinder can be integrated into machines for tasks like lifting, pressing, or tilting, where consistent motion is required for efficiency and reliability.
• Packaging: Used in automated packaging lines for precise positioning and handling of products or packages during the packaging process.
• Automotive Manufacturing: Ideal for the automotive industry, where it can automate tasks such as part positioning, lifting, or pressing within production systems.

Advantages:

1. High Force Output: The 100 mm bore size ensures the cylinder generates substantial force, making it ideal for heavy-duty tasks that require high-power actuation.
2. Durability: The anodized aluminum body and stainless steel piston rod ensure the cylinder performs consistently under harsh conditions with minimal wear.
3. Energy Efficiency: With its advanced sealing system, the cylinder minimizes air leakage, improving the efficiency of the entire system and reducing operating costs.
4. Precision Control: The adjustable speed control allows users to fine-tune the speed of the cylinder’s motion, enabling precise control over extension and retraction rates.
5. Versatile Mounting: The SDA100 X 80F cylinder offers a variety of mounting configurations, making it adaptable to a wide range of applications and easy to integrate into automated systems.

Maintenance:

• Lubrication: Ensure regular lubrication of the piston rod and seals to prevent friction and wear, ensuring smooth operation and longer service life.
• Inspection: Perform periodic inspections of the seals, mountings, and piston rod to ensure no leakage or damage, maintaining optimal performance.
• Air Quality: Ensure the air supply is free from contaminants such as moisture or dirt, as they can affect the sealing and performance of the cylinder.
• Pressure Monitoring: Monitor the pressure levels regularly to ensure the cylinder operates within the recommended pressure range for efficient performance.

Conclusion:

The Techno SDA100 X 80F Pneumatic Cylinder is a high-performance actuator that delivers high force output and precise motion control for heavy-duty applications in industrial automation, robotics, and material handling systems. With its 100 mm bore size, 80 mm stroke, advanced sealing system, and adjustable speed controls, this cylinder ensures reliable performance, energy efficiency, and long-term durability in demanding environments. Whether used in automated production lines, robotic arms, or material handling systems, the SDA100 X 80F provides the necessary power and precision for large-scale industrial applications.
