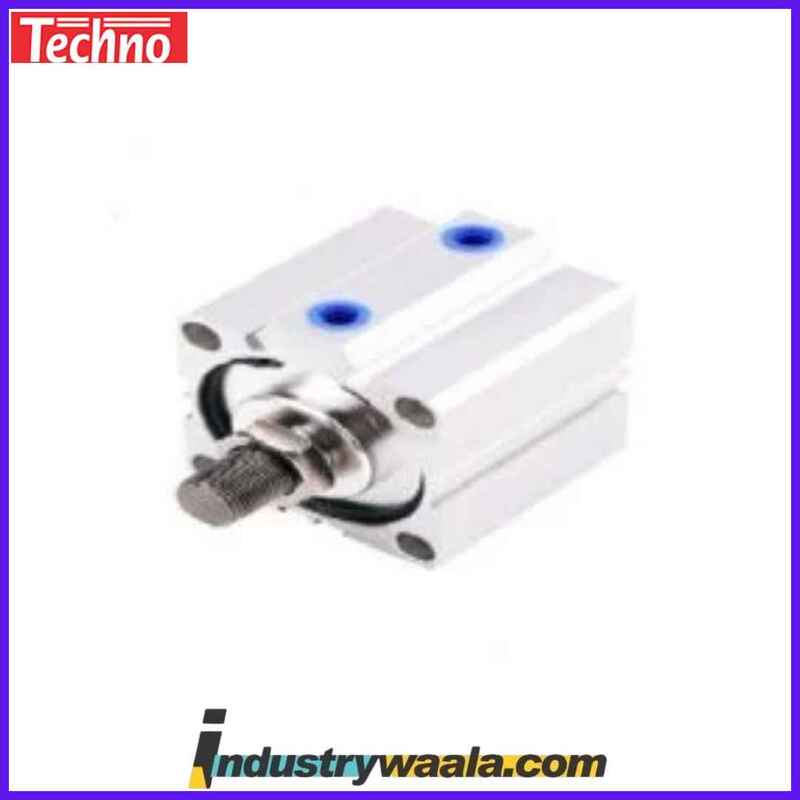

Techno SDA16 X 10M Pneumatic Cylinder

The Techno SDA16 x 10M Pneumatic Cylinder is a compact, double-acting actuator designed to provide precise linear motion in applications requiring a short stroke length. With a 16mm bore diameter and a 10mm stroke length, this cylinder is ideal for situations where space is limited and controlled, repeatable movements are essential. The SDA16 x 10M offers smooth and reliable operation with features like adjustable speed control and end-of-stroke cushioning, reducing impact and wear. Constructed from durable anodized aluminum, this pneumatic cylinder ensures long-lasting performance, making it an excellent choice for automation, robotics, material handling, and precision machinery.

Detailed Description:

1. Overview:

• Model: Techno SDA16 x 10M
• Type: Double-Acting Pneumatic Cylinder
• Bore Diameter (SDA16): 16 mm
• Stroke Length (10M): 10 mm

The SDA16 x 10M is a compact, double-acting pneumatic cylinder designed for applications where short strokes and precise control are required. The 16mm bore diameter and 10mm stroke length make this cylinder perfect for small-scale, space-constrained systems while still delivering reliable and powerful actuation. The double-acting design allows for bidirectional motion, providing flexibility in various tasks.

2. Key Features:

• Compact and Efficient Design:
  • With its 16mm bore and 10mm stroke, the SDA16 x 10M provides a compact solution for applications that demand high precision in a small space. The compact size does not sacrifice performance, delivering reliable actuation in tight spaces.
• Double-Acting Operation:
  • The cylinder uses compressed air to operate in both directions, extending and retracting the piston for versatile control. This bidirectional action is ideal for systems requiring both forward and backward movement.
• End-of-Stroke Cushioning:
  • Adjustable cushioning at both ends of the stroke helps reduce impact, providing smooth, quiet operation and preventing damage to the cylinder during high-speed cycles. This feature extends the cylinder’s life and improves system efficiency.
• Adjustable Speed Control:
  • The SDA16 x 10M offers adjustable speed control, allowing for fine-tuned movements in both the extension and retraction phases. This ensures precise motion and enables synchronization with other components in automated systems.
• Durable Construction:
  • Built with anodized aluminum, the cylinder offers excellent corrosion resistance and long-term durability, ensuring reliable operation in harsh environments with minimal maintenance.
• Versatile Mounting Options:
  • The SDA16 x 10M supports multiple mounting options, including foot, flange, and pivot mounts. This flexibility makes it easy to integrate into a variety of systems, saving time during installation.

3. Specifications:

• Bore Diameter: 16 mm
• Stroke Length: 10 mm
• Operating Pressure Range: Typically 1.5 bar to 10 bar (150 to 1000 kPa)
• Temperature Range: -10°C to 70°C (depending on seal materials and operating conditions)
• Cushioning: Adjustable cushioning at both ends of the stroke
• Materials: Anodized aluminum body, corrosion-resistant seals
• Mounting Options: Foot, flange, and pivot mounts

4. Applications:

The Techno SDA16 x 10M Pneumatic Cylinder is ideal for a wide range of applications that require compact, precise, and efficient linear motion:

• Automation Systems: Perfect for pick-and-place operations, conveyors, or automated assembly lines, where precision and space efficiency are essential.
• Material Handling: Used in sorting systems, packaging, and small conveyors, where short, precise movements are needed in confined spaces.
• Robotics: Ideal for robotic arms, grippers, and other robotic systems, providing smooth, controlled actuation in small spaces.
• Precision Machinery: Great for clamping, positioning, or small-scale pressing tasks where high accuracy is required.
• Medical Equipment: Can be used in diagnostic equipment, testing machines, or any application that requires controlled linear motion in a compact design.

5. Advantages:

• Space-Efficient Design: The SDA16 x 10M provides a compact solution for systems where space is limited, making it perfect for small-scale applications without sacrificing performance.
• Smooth and Reliable Operation: The adjustable cushioning and speed control ensure smooth, controlled motion, reducing the risk of damage to the cylinder and surrounding equipment.
• Long-Lasting Durability: The anodized aluminum construction and corrosion-resistant seals ensure a long operational life, with minimal maintenance.
• Flexible Integration: With multiple mounting options, the SDA16 x 10M can be easily integrated into a variety of systems, offering versatility for different application needs.
• Cost-Effective: This cylinder offers high performance and durability at an affordable price, making it a cost-effective solution for applications requiring short-stroke pneumatic actuation.

6. Conclusion:

The Techno SDA16 x 10M Pneumatic Cylinder is a highly efficient, compact, and precise solution for short-stroke pneumatic actuation. With adjustable speed control, end-of-stroke cushioning, and durable anodized aluminum construction, it delivers smooth and reliable performance across various industrial applications. Its versatility, ease of integration, and low-maintenance design make it an ideal choice for systems requiring precise, controlled movements in space-limited environments. Whether used in automation, robotics, or material handling, the SDA16 x 10M ensures long-term, high-performance operation.
