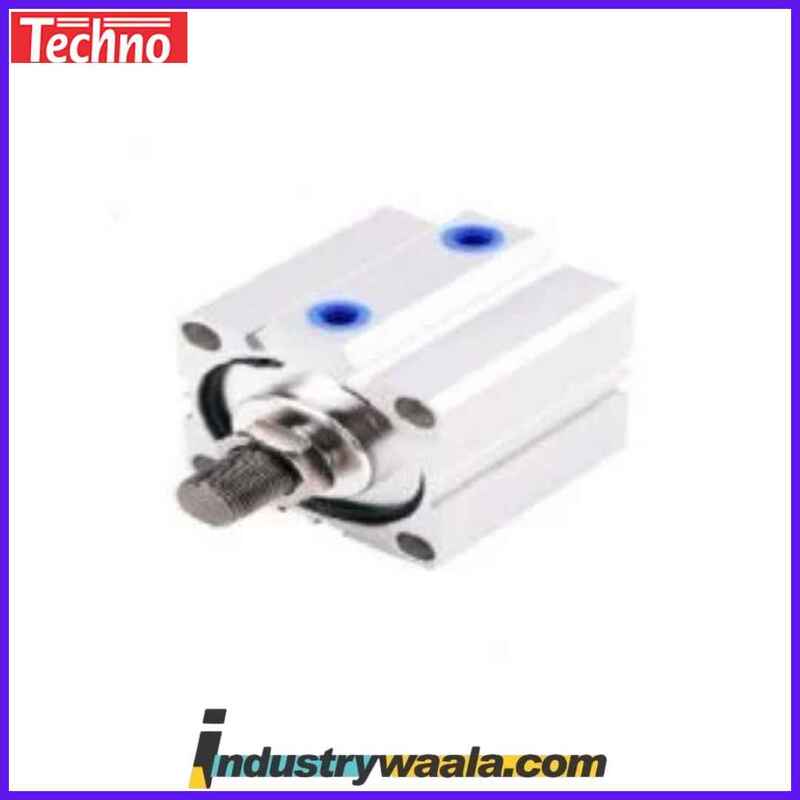

Techno SDA16 X 15M Pneumatic Cylinder

The Techno SDA16 x 15M Pneumatic Cylinder is a compact, double-acting actuator designed for precise linear motion in applications requiring moderate stroke lengths. With a 16mm bore diameter and a 15mm stroke, it offers efficient performance in tight spaces while maintaining high accuracy. The cylinder features adjustable speed control, end-of-stroke cushioning, and durable anodized aluminum construction, ensuring smooth, low-maintenance operation. Ideal for use in automation, robotics, material handling, and precision machinery, the SDA16 x 15M is designed to provide reliable and controlled movement in systems where space is limited but performance is critical.

Detailed Description:

1. Overview:

• Model: Techno SDA16 x 15M
• Type: Double-Acting Pneumatic Cylinder
• Bore Diameter (SDA16): 16 mm
• Stroke Length (15M): 15 mm

The SDA16 x 15M pneumatic cylinder is designed for applications where both compact size and reliable performance are required. It operates using compressed air to move the piston in both directions—extension and retraction—providing efficient actuation in a small form factor. The 16mm bore diameter and 15mm stroke length make this cylinder ideal for medium-force, short-stroke applications where precision is critical.

2. Key Features:

• Compact and Efficient Design:
  • The SDA16 x 15M offers high performance in a compact size, with a 16mm bore and 15mm stroke. This makes it perfect for applications with limited space or where a small, powerful actuator is needed.
• Double-Acting Operation:
  • The double-acting design ensures reliable motion in both extension and retraction, using compressed air to drive the piston. This bi-directional action is essential for applications that require movement in both directions.
• End-of-Stroke Cushioning:
  • Adjustable cushioning at both ends of the stroke helps reduce impact and noise, ensuring smooth operation and preventing wear on the cylinder during high-speed cycles.
• Adjustable Speed Control:
  • The cylinder includes adjustable speed control features, allowing for fine-tuned motion and synchronization in automation processes where speed and timing are essential.
• Durable Construction:
  • Constructed from anodized aluminum, the SDA16 x 15M provides resistance to corrosion and wear, ensuring a long lifespan even in demanding environments. The cylinder’s seals and other components are designed for high durability, reducing maintenance needs.
• Versatile Mounting Options:
  • The SDA16 x 15M supports various mounting configurations, including foot, flange, and pivot mounts, providing flexibility for different system integrations.

3. Specifications:

• Bore Diameter: 16 mm
• Stroke Length: 15 mm
• Operating Pressure Range: Typically 1.5 bar to 10 bar (150 to 1000 kPa)
• Temperature Range: -10°C to 70°C (depending on seal materials and environmental conditions)
• Cushioning: Adjustable cushioning at both ends of the stroke
• Materials: Anodized aluminum body, high-quality seals, corrosion-resistant components
• Mounting Options: Foot, flange, and pivot mounts

4. Applications:

The Techno SDA16 x 15M Pneumatic Cylinder is ideal for a wide range of industrial applications that require compact, precise, and reliable actuation:

• Automation Systems: Perfect for use in pick-and-place applications, assembly lines, or any system where precise, short-stroke movement is required.
• Material Handling: Used in conveyors, sorting systems, or packaging equipment, where small, precise movements are essential in confined spaces.
• Robotics: Widely utilized in robotic arms, grippers, and other robotic applications, where precision is critical in compact designs.
• Precision Machinery: Ideal for positioning, clamping, or small-scale pressing tasks in machinery that require accurate, repeatable movements.
• Medical Equipment: Can be applied in devices requiring precise and controlled actuation, such as diagnostic or testing equipment.

5. Advantages:

• Space-Efficient Design: The SDA16 x 15M provides high performance in a compact form, making it suitable for systems with limited space without sacrificing functionality.
• Smooth and Precise Operation: The adjustable cushioning and speed control ensure that the cylinder operates smoothly, minimizing noise, vibration, and wear.
• Long-Lasting Durability: The anodized aluminum construction and high-quality seals ensure the cylinder performs reliably over time with minimal maintenance requirements.
• Flexible Integration: Multiple mounting options and a compact design allow the cylinder to be easily integrated into various systems and applications.
• Cost-Effective Solution: The SDA16 x 15M provides reliable, high-quality performance at an affordable price, making it a cost-effective solution for short-stroke pneumatic actuation.

6. Conclusion:

The Techno SDA16 x 15M Pneumatic Cylinder is an ideal solution for applications requiring compact, precise, and reliable actuation. Its durable construction, adjustable speed control, and end-of-stroke cushioning make it well-suited for industries like automation, robotics, material handling, and precision machinery. Whether used in small-scale systems or integrated into larger equipment, the SDA16 x 15M delivers consistent performance with minimal maintenance, making it a valuable addition to a wide range of pneumatic applications.
