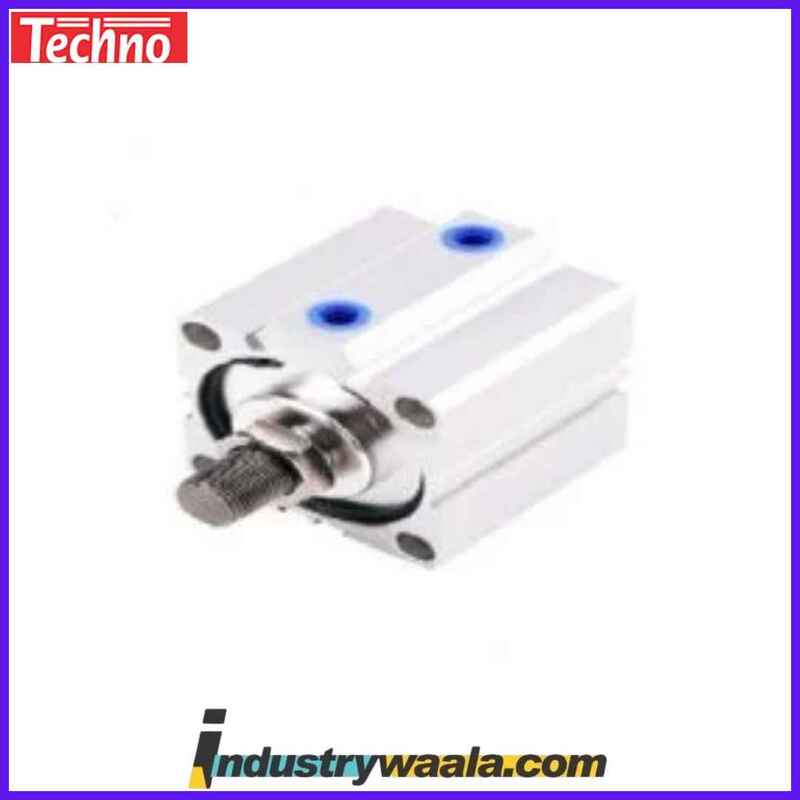

Techno SDA16 X 50M Pneumatic Cylinder

The Techno SDA16 x 50M Pneumatic Cylinder is a versatile, high-performance double-acting actuator designed for precise and reliable linear motion. Featuring a 16mm bore diameter and a 50mm stroke length, this cylinder is ideal for applications requiring medium-range motion in compact spaces. The SDA16 x 50M is equipped with adjustable speed control, end-of-stroke cushioning, and durable anodized aluminum construction, ensuring smooth, controlled motion with minimal maintenance. This pneumatic cylinder is commonly used in automation, robotics, material handling, and precision machinery applications, providing reliable performance in demanding industrial environments.

Detailed Description:

1. Overview:

• Model: Techno SDA16 x 50M
• Type: Double-Acting Pneumatic Cylinder
• Bore Diameter (SDA16): 16 mm
• Stroke Length (50M): 50 mm

The SDA16 x 50M is a double-acting pneumatic cylinder designed to provide reliable, precise linear motion within a compact frame. Its 16mm bore diameter delivers efficient force for medium-range applications, while the 50mm stroke length ensures the versatility needed for tasks requiring moderate travel. This combination of features makes it ideal for use in systems with space constraints while demanding accurate, repeatable movements.

2. Key Features:

• Compact and High-Performance Design:
  • With a 16mm bore diameter and 50mm stroke length, the SDA16 x 50M provides a balance of power and precision, ideal for medium-range actuation tasks where space is limited.
• Double-Acting Operation:
  • The double-acting operation allows for motion in both directions, extending and retracting using compressed air. This bi-directional functionality makes it suitable for applications requiring smooth, controlled movement in both directions.
• End-of-Stroke Cushioning:
  • Equipped with adjustable cushioning at both ends of the stroke, the SDA16 x 50M minimizes impact and reduces wear, noise, and vibrations. This feature contributes to smoother operation and longer cylinder life.
• Adjustable Speed Control:
  • The cylinder offers adjustable speed control, allowing users to regulate the speed of both extension and retraction phases. This is particularly important for tasks requiring synchronized movements or slow, precise actuation.
• Durable and Low Maintenance Construction:
  • The SDA16 x 50M is constructed from anodized aluminum, ensuring a lightweight, corrosion-resistant, and durable design. The use of high-quality seals reduces friction and wear, helping to extend the operational life of the cylinder.
• Flexible Mounting Options:
  • The cylinder offers multiple mounting configurations, including foot, flange, and pivot mounts, allowing for easy integration into a variety of system setups.

3. Specifications:

• Bore Diameter: 16 mm
• Stroke Length: 50 mm
• Operating Pressure Range: Typically 1.5 bar to 10 bar (150 to 1000 kPa)
• Temperature Range: -10°C to 70°C (depending on seal materials and operational conditions)
• Cushioning: Adjustable end-of-stroke cushioning for smooth and controlled motion.
• Materials: Anodized aluminum body, high-quality seals, corrosion-resistant components.
• Mounting Options: Foot, flange, and pivot mounts for flexible installation.

4. Applications:

The Techno SDA16 x 50M Pneumatic Cylinder is perfect for a variety of applications that require medium-range, precise linear motion in compact spaces:

• Automation Systems: Ideal for use in pick-and-place systems, assembly lines, and robotic arms, where precise actuation is essential for performance.
• Material Handling: Suitable for conveyors, feeders, and robotic arms that need to move or position materials with accuracy and reliability.
• Robotics: Can be used for grippers, actuators, and other robotic components requiring controlled and precise movement.
• Precision Machinery: Perfect for clamping, pressing, and positioning applications in machines that demand controlled motion in confined spaces.
• Medical Equipment: Suitable for medical device applications where controlled, small-range linear motion is needed.

5. Advantages:

• Compact yet Powerful: The SDA16 x 50M is designed to offer a compact footprint while providing sufficient power for medium-range motion tasks.
• Smooth and Reliable Operation: End-of-stroke cushioning and adjustable speed control help minimize wear and tear, while ensuring smooth, controlled movements.
• Durable and Low Maintenance: The use of anodized aluminum and high-quality seals ensures durability, corrosion resistance, and minimal maintenance requirements.
• Versatile and Flexible Integration: The multiple mounting options make it adaptable to various system configurations, enhancing flexibility during installation and integration.
• Cost-Effective: Offering a high level of performance at a competitive price, the SDA16 x 50M is a cost-effective solution for medium-range actuation needs.

6. Conclusion:

The Techno SDA16 x 50M Pneumatic Cylinder is a highly reliable, efficient, and durable actuator designed for medium-range linear motion applications. Its compact design, adjustable speed control, end-of-stroke cushioning, and flexible mounting options make it suitable for a wide range of industries, including automation, robotics, material handling, and precision machinery. With minimal maintenance requirements and long-lasting performance, the SDA16 x 50M delivers smooth, controlled actuation in even the most demanding environments.
