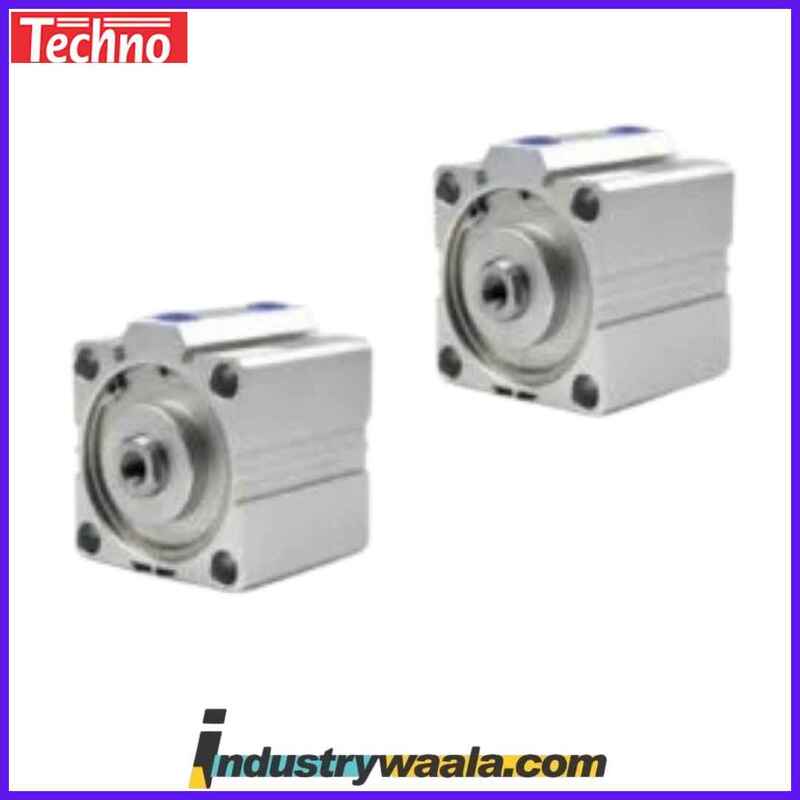

Techno SDA16 X 5F Pneumatic Cylinder

The Techno SDA16 X 5F Pneumatic Cylinder is a compact and precise double-acting actuator, designed for efficient linear motion in applications where space is limited but precision is critical. Featuring a 16 mm bore size and a 5 mm stroke length, this pneumatic cylinder is ideal for tasks requiring short-range travel and moderate force in constrained environments. It is well-suited for use in automation, robotics, assembly lines, and material handling systems where space-saving, high performance, and durability are paramount.

The SDA16 X 5F is built with high-quality materials, including an anodized aluminum body and stainless steel piston rod, ensuring both lightweight and resilient construction. This combination makes the cylinder resistant to corrosion and abrasion, offering long-lasting reliability even in challenging industrial environments. With advanced sealing technology, the cylinder reduces air leakage, enhancing energy efficiency and minimizing maintenance needs, while extending the cylinder’s operational life.

Equipped with adjustable speed control, the SDA16 X 5F allows for smooth and controlled movement in both the extension and retraction cycles, ensuring precision in tasks such as positioning, clamping, and adjusting components. The cylinder’s versatile mounting options allow for easy integration into various systems, whether it be in automation equipment, robotic arms, or material handling units.

Key Features:

1. Bore Size: 16 mm
   • The 16 mm bore size offers an ideal balance of compactness and moderate force output, making it a suitable solution for tasks that require precision and controlled motion in confined spaces.
2. Stroke Length: 5 mm
   • The 5 mm stroke length provides precise, short-range motion, ideal for tasks that require quick, controlled movement in tight spaces, such as positioning or adjusting components.
3. Double-Acting Design
   • The double-acting mechanism enables air pressure to be applied to both sides of the piston, allowing the cylinder to extend and retract in a controlled, repeatable manner, essential for reliable operation in industrial systems.
4. Durable Construction
   • The anodized aluminum body ensures a lightweight yet durable design, while the stainless steel piston rod offers increased resistance to abrasion and corrosion, extending the service life of the cylinder even in demanding conditions.
5. Advanced Sealing Technology
   • The cylinder features advanced seals that minimize air leakage, improving efficiency and reducing the risk of system failures. This enhances energy savings and ensures reliable operation over time.
6. Operating Pressure Range
   • The SDA16 X 5F operates effectively within an operating pressure range of 1 to 10 bar (14.5 to 145 psi), making it compatible with standard pneumatic systems and allowing for flexibility in a wide range of applications.
7. Temperature Range
   • The SDA16 X 5F can operate effectively in environments with temperatures ranging from -10°C to 80°C (14°F to 176°F), offering versatility in both cold and warm working environments.
8. Adjustable Speed Control
   • The cylinder comes with adjustable speed control, allowing users to fine-tune the speed of both the extension and retraction strokes. This helps ensure smooth, precise, and controlled motion that is crucial for applications requiring accuracy.
9. Flexible Mounting Options
   • The SDA16 X 5F offers a variety of mounting configurations, making it easy to integrate into different systems. Whether through flange mounting or through-hole mounting, the cylinder can be adapted to various setups, improving installation flexibility.

Applications:

1. Industrial Automation
   • The SDA16 X 5F is ideal for automated production lines, especially in applications that require precise short-range movement, such as positioning, sorting, and clamping components.
2. Robotics
   • This cylinder is well-suited for robotic systems that require compact and precise actuation. It is commonly used for gripping, placing, or adjusting components in robotic arms and other automated systems.
3. Material Handling
   • The SDA16 X 5F excels in pick-and-place or sorting applications, where small components need to be handled with precision. Its short stroke makes it perfect for moving lightweight items in space-constrained environments.
4. Packaging and Assembly
   • In packaging and assembly lines, the cylinder is used for aligning, positioning, and adjusting small components. Its precise motion ensures high accuracy in critical tasks that require fine-tuned control.
5. Electronics Manufacturing
   • The SDA16 X 5F is ideal for electronics manufacturing, where precision and repeatability are crucial. It is used in tasks like placing, positioning, and adjusting small electronic parts during assembly.
6. Medical Equipment
   • In the medical industry, this cylinder is used for adjusting, positioning, or activating components in cleanroom environments, especially where high accuracy and compactness are necessary.

Advantages:

1. Compact Size with High Precision
   • The SDA16 X 5F offers a compact design that fits into tight spaces while providing high precision, making it ideal for applications where every millimeter counts and space is at a premium.
2. Durable and Low Maintenance
   • Built from durable anodized aluminum and stainless steel, the cylinder resists wear, corrosion, and environmental damage. This leads to longer service life and reduced maintenance needs.
3. Energy-Efficient Design
   • The advanced sealing and low air leakage design help reduce energy consumption, making the cylinder a cost-effective and environmentally-friendly solution for industrial systems.
4. Smooth and Controlled Movement
   • The adjustable speed control ensures that the cylinder’s motion is smooth and consistent, making it ideal for tasks that require fine movement and high accuracy, such as positioning or adjusting components in sensitive applications.
5. Flexible Integration
   • With multiple mounting options and the ability to work with various systems, the SDA16 X 5F is easy to integrate into different setups, whether in robotics, material handling, or automation systems.

Maintenance:

• Lubrication: Regular lubrication of the piston rod and seals is recommended to reduce friction and maintain efficient operation.
• Inspection: Periodic checks for air leakage, seal wear, and piston rod damage should be carried out to ensure smooth operation and prolong the lifespan of the cylinder.
• Air Quality: To enhance the longevity of the cylinder, it’s important to use clean, dry air and consider incorporating air filters to prevent contamination.

Conclusion:

The Techno SDA16 X 5F Pneumatic Cylinder offers a compact, efficient, and precise solution for short-range motion in a variety of applications, especially where space is limited. With its advanced sealing technology, adjustable speed control, and durable construction, this cylinder ensures reliable, long-lasting performance for automation, robotics, material handling, and packaging systems. The SDA16 X 5F is the ideal choice for users seeking a high-precision actuator in environments that demand both compactness and high efficiency.
